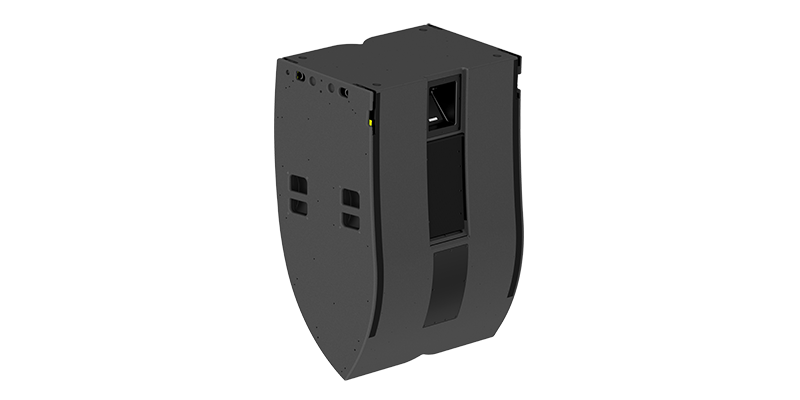

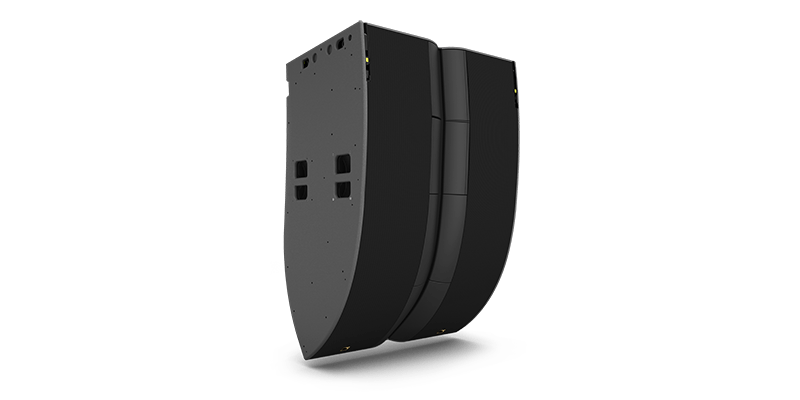

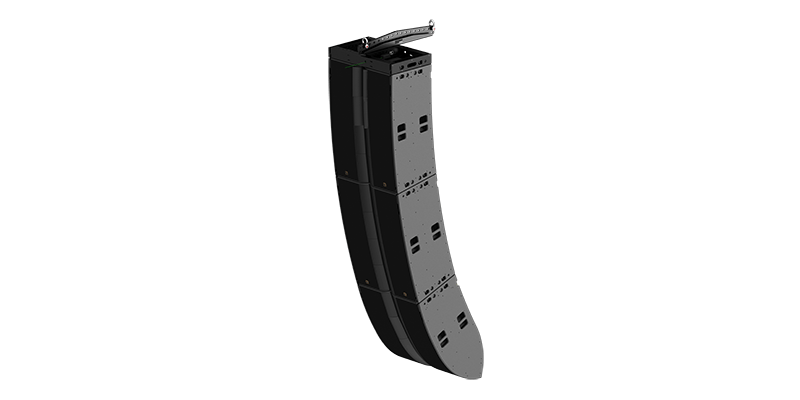

L-Acoustics L2D Loudspeaker

The L2D is a 16-channel PULS system designed for medium to large-scale events, delivering up to 151 dB max SPL with a wide frequency range from 45 Hz to 20 kHz. It combines large-format performance in a compact design, using perfected line source technology for superior sound projection.

The LS2 boasts best-in-class SPL per meter, kilogram, and square meter efficiencies to ensures powerful audio coverage. Its integrated cardioid technology minimises stage and nearby noise, while the system supports fast, efficient deployment.

Specifications:

• 45 Hz - 20 kHz
• Full element:151 dB
• First module: 147 dB
• Vertical: 60° progressive directivity
• Horizontal:
• Top two modules: Panflex 70° / 90° / 110°
• Bottom two modules: progressive from 110° to 140°
• Integrated cardoid
• LC: 4 × 12’’ neodymium cone drivers
  LF: 8 × 10’’ neodymium cone drivers
  HF: 8 × 3’’ neodymium compression drivers
• LC/LF: Bass-reflex, L-Vents
  HF: DOSC waveguide, Panflex
• LC : 8 Ω
  LF : 8 Ω
  HF : 8 Ω
• 1 x 37-point male connector
• Flush-fitting 4-point captive rigging system compatible with L2D
• 850 mm (33.5in) / 1252 mm (49.3 in) / 559 mm (22 in)
• 149 kg / 328 lb
