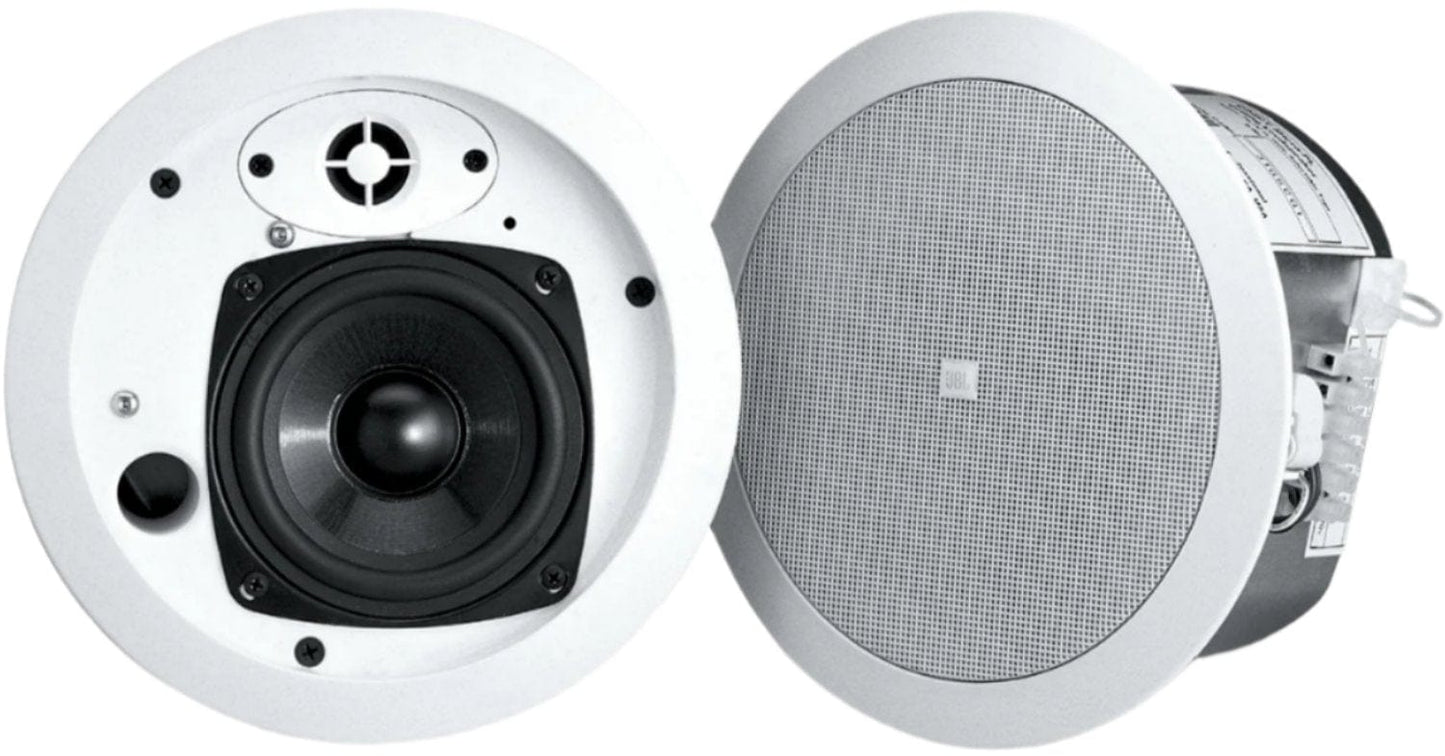

JBL C24CT MICROPLUS Medium Output 4.5-Inch 150-Degree Ceiling Speaker Assembly Pair

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features:

  • Coverage: 150° conical
  • Frequency Response: Smooth across the spectrum
  • Crossover Network: Advanced design for very even coverage throughout the listening area
  • Components:
    • 115 mm (4.5 in) woofer with injection molded graphite cone and butyl rubber surround
    • 12 mm (0.5 in) polycarbonate tweeter for extended response
  • Transformer: Includes 25 W multi-tap for 70 V/100 V systems
  • Depth: Shallow 105 mm (4.1 inches) from back of baffle
  • Packaging: Includes grille, backcan, and tile rails for fast installation and easy dealer stocking

Specifications:

  • Frequency Range: 80 Hz - 25 kHz
  • Power Capacity:
    • 30 W Continuous Program Power
    • 15 W Continuous Pink Noise
  • Transformer Taps:
    • 70 V: 25 W, 12 W, 6 W taps
    • 100 V: 25 W, 12 W taps
  • Nominal Sensitivity: 85 dB SPL @ 1 m (3.3 ft)
  • Coverage Angle: 150° conical
  • Crossover Frequency: 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
  • Maximum SPL (1m): 99 dB @ 1 m (3.3 ft), 25 W tap
  • Low Frequency Driver:
    • 115 mm (4.5 in) IMG (injection molded graphite)
    • 24 mm (1 in) voice coil
  • High Frequency Driver: 12 mm (0.5 in) polycarbonate
