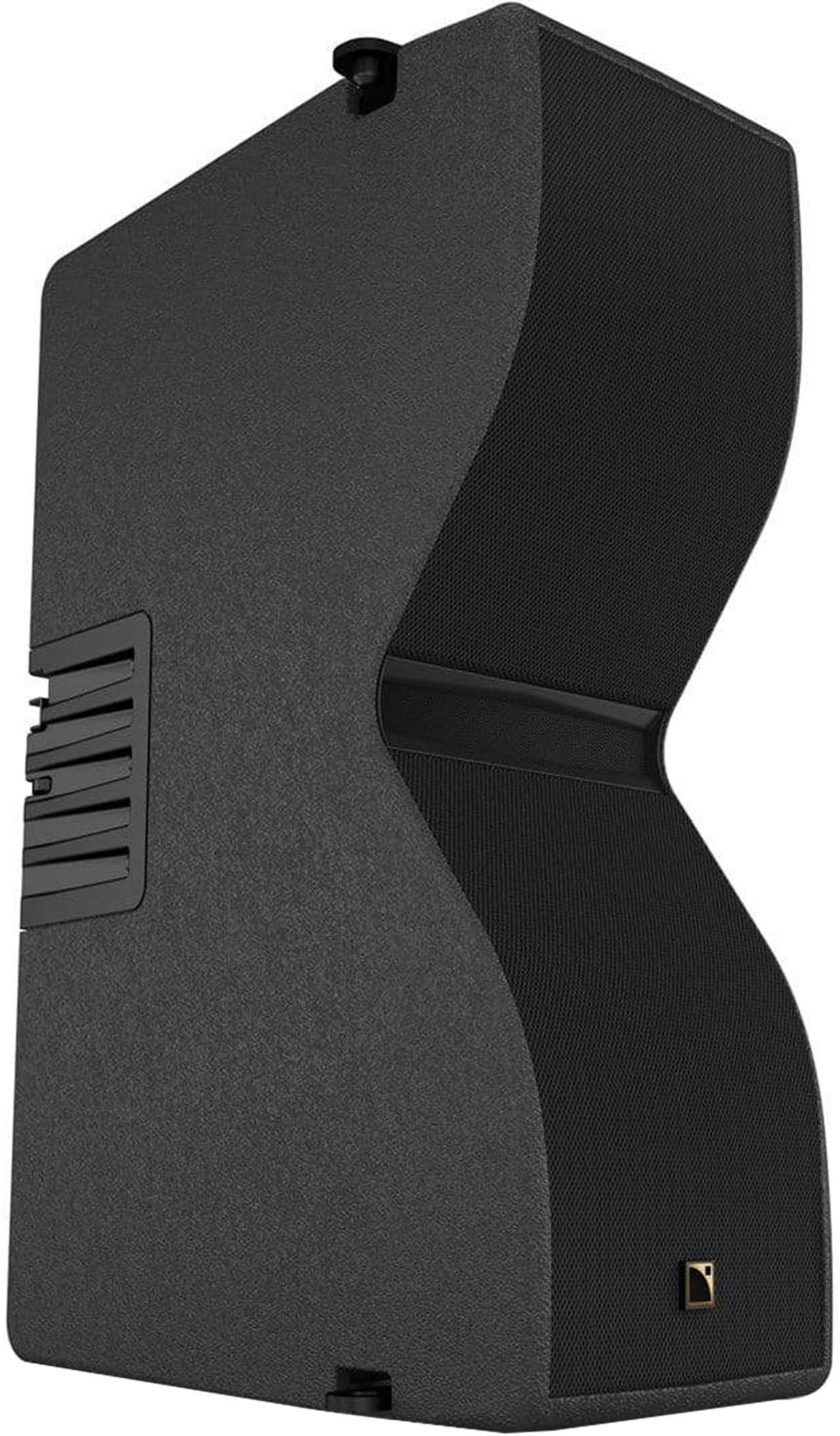

L-Acoustics Kiva II Line Array Loudspeaker

2-way passive enclosure with two weather-resistant premium 6.5 in transducers and high output 1.75 in diaphragm compression driver coupled to a cylindrical waveguide with 110 degrees of horizontal coverage and 15° of vertical coverage. The enclosure cabinet is constructed of moisture-resistant composite material. The enclosure front is protected by a composite grill and an acoustically transparent fabric. The enclosure integrates two handles. A three-point captive hardware allows for rigging and combining with other loudspeakers of the same family to achieve a coherent wavefront line source. The line source directivity depends upon the number of elements and inter-element angles and can be matched to the audience geometry. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Specifications:

  • Coverage (-6 dB):
    • Enclosure directivity: 15° (single), depending on the number of elements and array curvature
    • Waveguide directivity: 100° symmetrical
  • Transducers:
    • LF transducer: 6.5" cone driver
    • HF transducer: 1.75" diaphragm compression driver
  • Acoustics:
    • Nominal impedance: 16 Ω
    • Usable bandwidth: 70 Hz - 20 kHz (-10 dB), 75 Hz - 20 kHz (-6 dB), 84 Hz - 20 kHz (-3 dB)
    • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 186 W
    • Maximum SPL: 138 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
  • Physical data:
    • Acoustical load: bass-reflex
    • Cabinet: composite sandwich structure
    • Dimensions (W, H, D): 525 mm, 202 mm, 357 mm / 20.7 in, 8 in, 14 in
    • Weight (net): 14 kg / 31 lb
    • Connectors: 2 × 4-point speakON
    • IP: IP55
  • Finish:
    • dark grey brown Pantone 426 C
    • pure white RAL 9010
    • custom RAL code on special order
