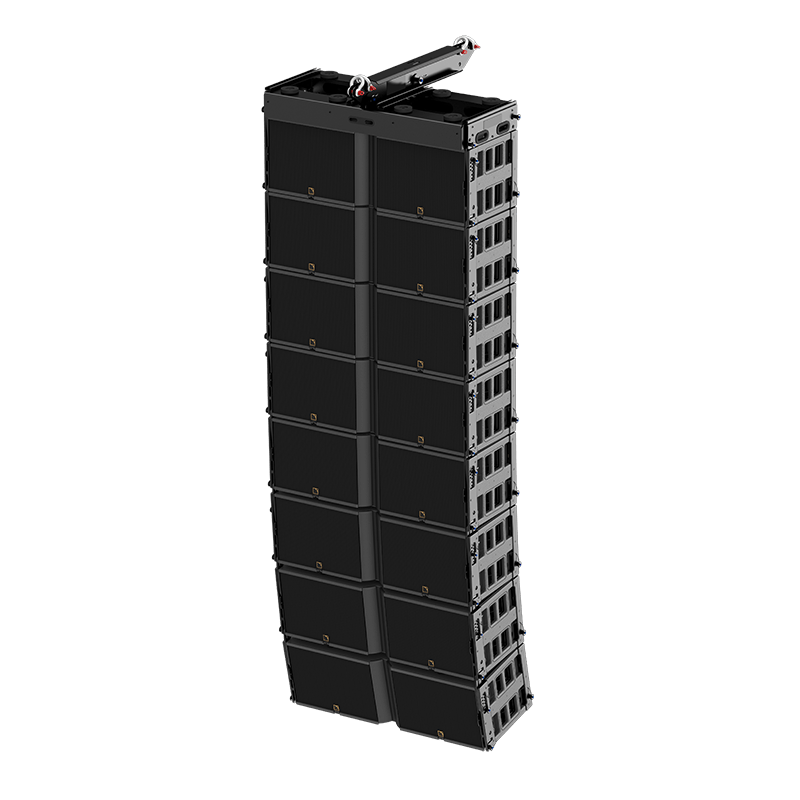

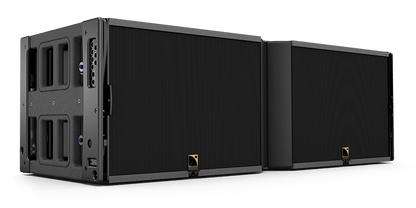

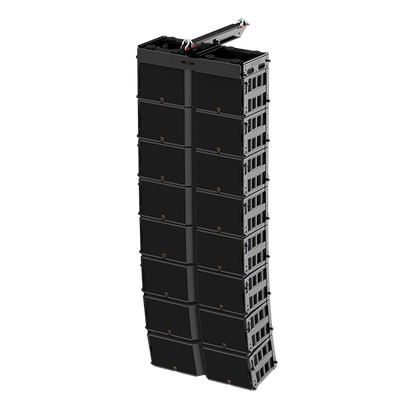

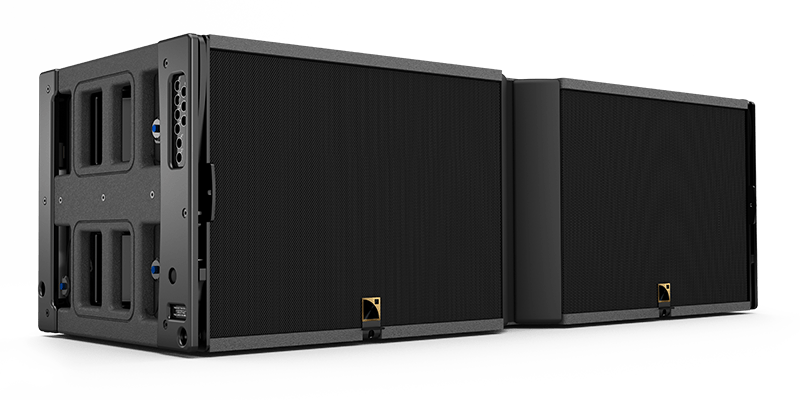

L-Acoustics K1 Loudspeaker

The K1 is a three-way active system featuring dual 15" drivers, delivering a maximum SPL of 149 dB across a 35Hz to 20kHz bandwidth. Its low-frequency section utilises two 15" drivers with L-VENTS.

The speakers mid frequencies are handled by four 6.5" drivers, while the high range is covered by three 3" drivers, achieving unmatched SPL-to-size ratio.

The K1 offers a robust, easy-to-rig system designed for the road.

Specifications:

• 35 Hz – 20 kHz
• 149 dB
• Horizontal: 90° symmetric
  Vertical: dependent upon the number of elements and the line source curvature
• LF: 2 × 15″ neodymium
  MF: 4 × 6.5″ neodymium, direct-radiating
  HF: 3× 3″ diaphragm compression drivers
• LF: bass-reflex
  MF: bass-reflex
  HF: DOSC waveguide
• LF: 2 × 8 Ω
  MF: 8 Ω
  HF: 8 Ω
• 2 × 8-point PA-COM
• 4 handles integrated into the cabinet
  inter-enclosure angles: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4° or 5°
• 1342 mm (52.8 in) / 438 mm (17.2 in) / 520 mm (20.5 in)
• 106 kg / 234 lb
