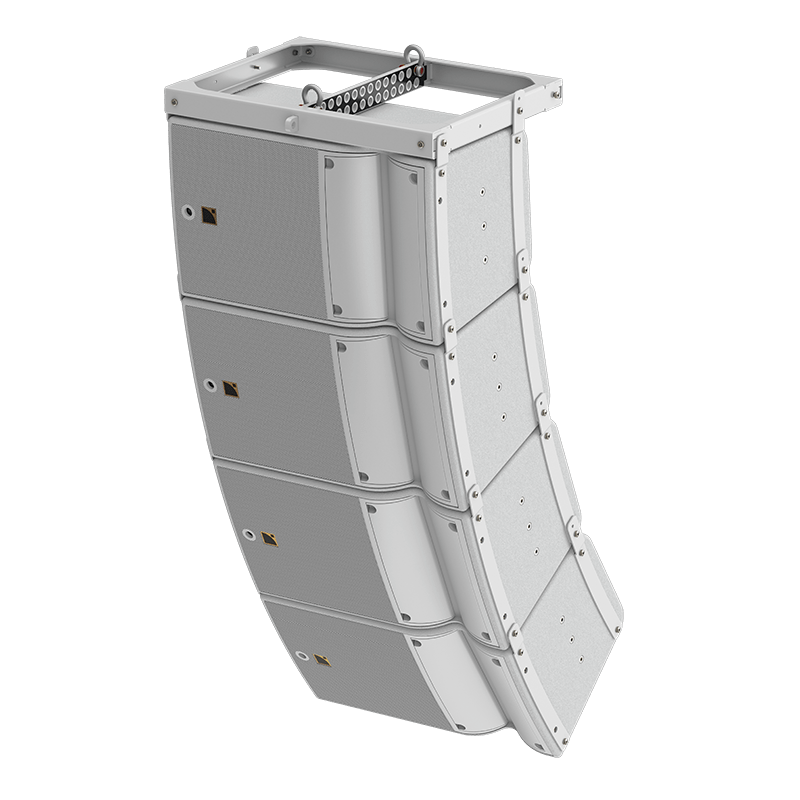

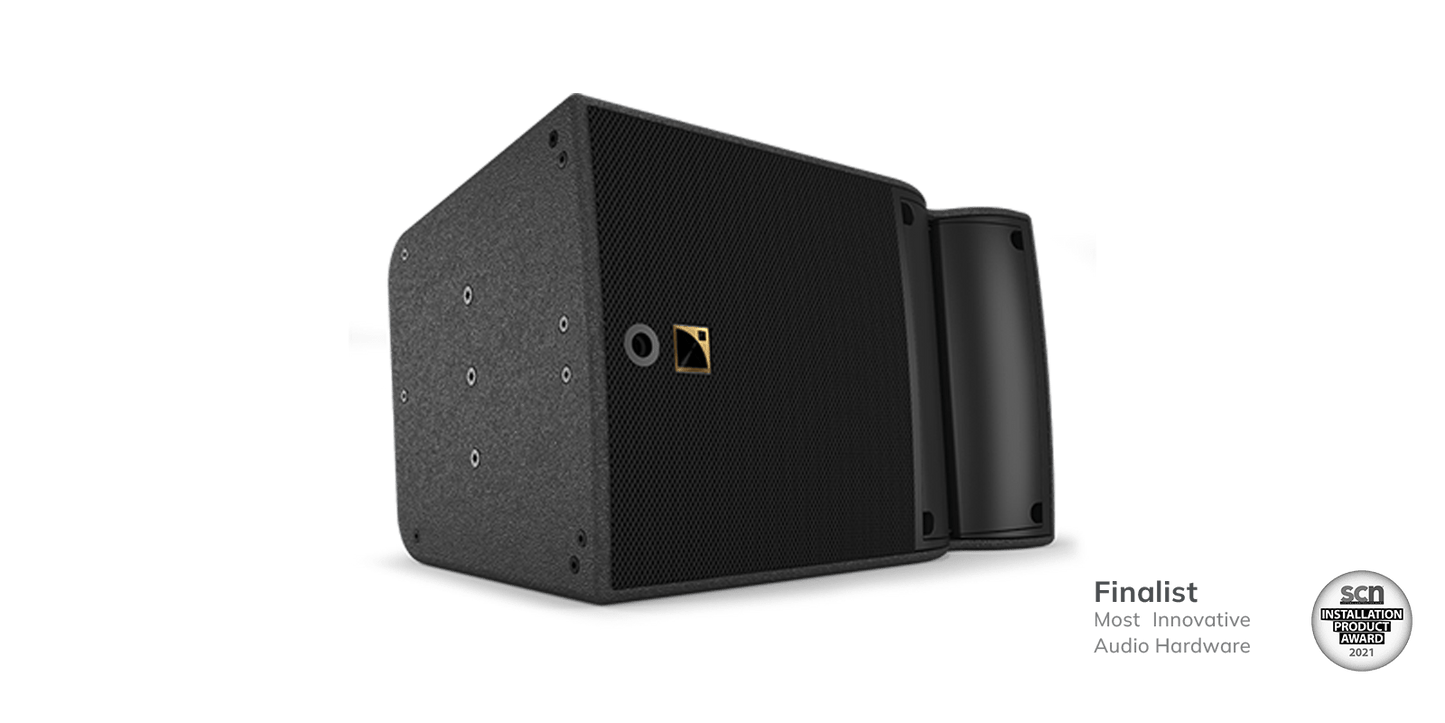

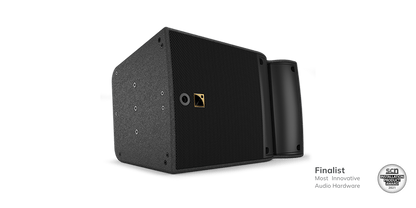

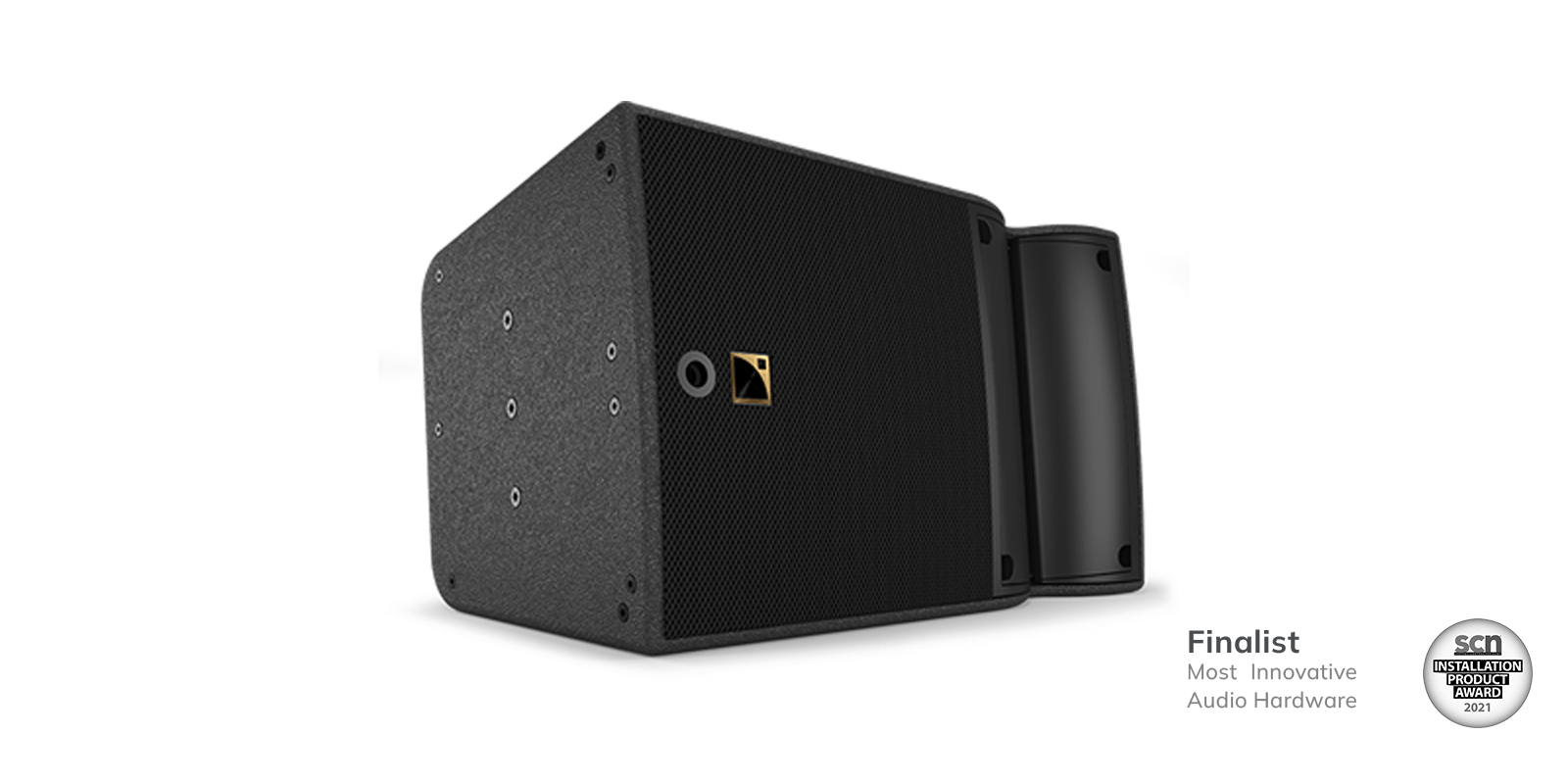

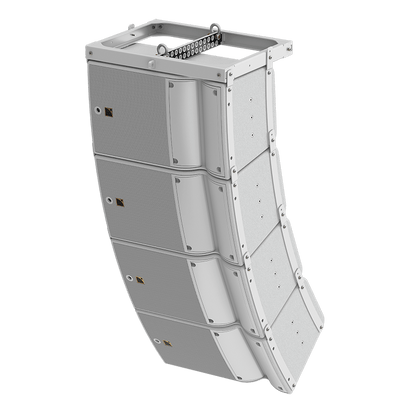

L-Acoustics A10i Focus Loudspeaker

The A10i Focus is a 2-way passive system featuring a 10" driver, delivering a maximum SPL of 140 dB and a frequency range from 66 Hz to 20 kHz. Its engineered for demanding rigging protocols and can be flown safely in even the most stringent conditions.

The loudspeaker utilises PANFLEX technology with four horizontal directivity options, while L-VENTS provide clear, low-frequency output.

The A10i Focus is designed to blend seamlessly into any venue.

This is the install specific of the L-Acoustics A10 Focus 2-Way Passive Speaker.

Specifications:

• 66 Hz- 20 kHz
• 140 dB with LA2Xi / LA4X / LA8 / LA12X
• 136 dB with LA2Xi
• Enclosure: 10°
• L-Fins: 70° / 110° symmetric or 90° asymmetric
• LF: 1 × 10″ cone driver
  HF: 1 × 2.5″ diaphragm compression driver, neodymium
• LF: bass-reflex, L-Vents
  HF: DOSC waveguide, Panflex
• 8 Ω
• 1 × 4-point terminal block with push-in connection
  1 × connector sealing plate with cable gland
• External rigging kits
  M6 inserts for rigging plates
  M8 inserts for A-U10i
  4 M6 inserts for rigging accessory
  1 DIN580-compatible M8 threaded insert
• 569  mm ( 22.4 in) / 350 mm (13.8 in) / 367 mm (14.5 in)
• 19 kg / 42 lb
