Description

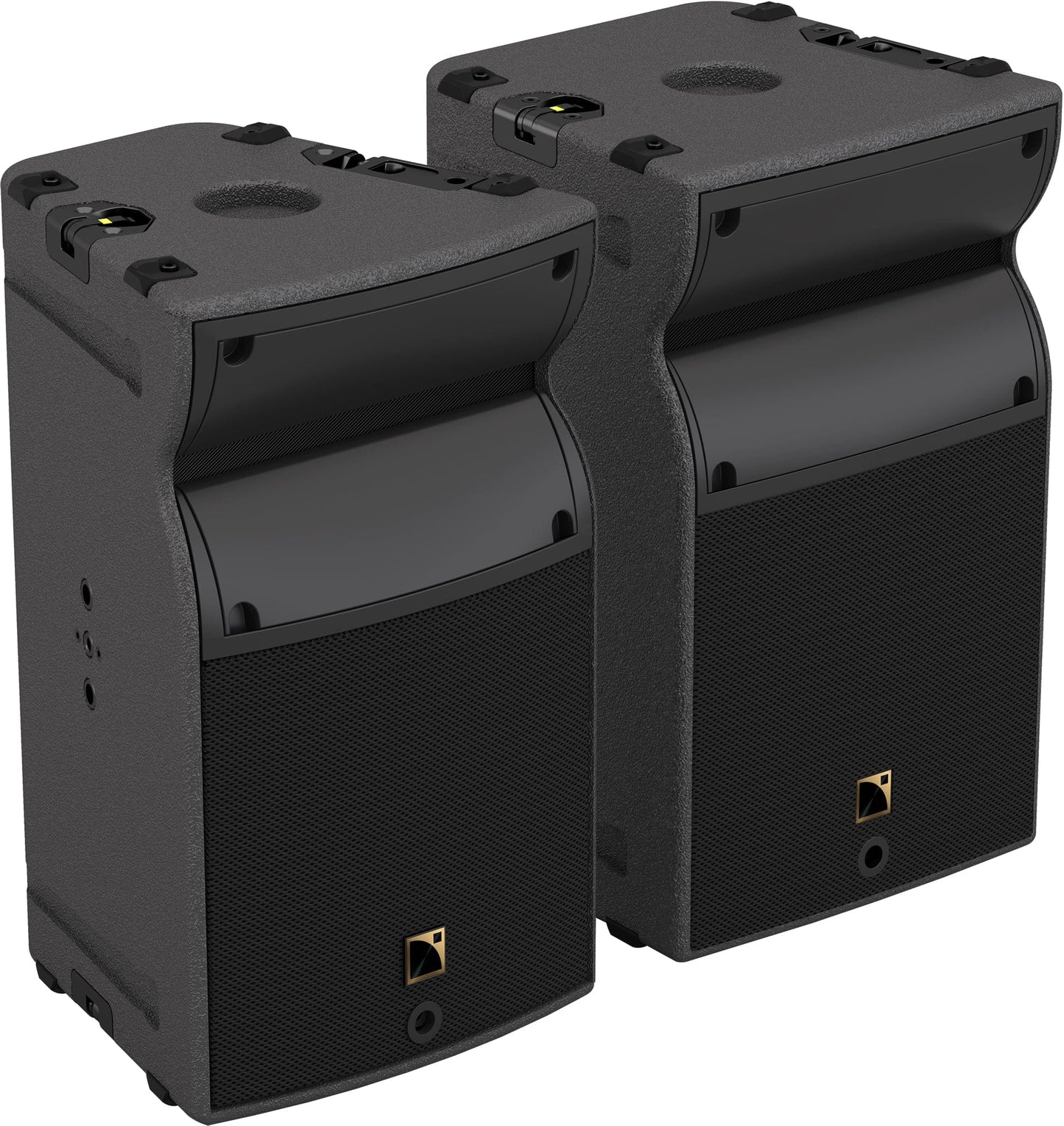

L-Acoustics A10 Wide 2-Way Passive Speaker

A10 Wide is a medium throw loudspeaker designed for production applications. Part of the multifunctional A10 family, the passive 10“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance. The 30° enclosure of A10 Wide enables a compact array, deployed radially, to provide expansive coverage while preserving sightlines. Panflex allows users to adapt directivity to the audience geometry and ensure exceptional frequency response stability. Combinations of A10 Wide and A10 Focus can be flown or stacked to form a vertical line source. A10 Wide can also be used individually as a configurable directivity point source for delays and pole-mounted applications. An A10 Wide line source provides exceptional performance in the vocal range. The companion subwoofer KS21 further reinforces contour and extends bandwidth to 31 Hz for demanding applications. A10 Wide is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution as fills or delays.

Specifications:

  • Description: 2-way passive constant curvature WST 30°, amplified by LA4X / LA8 / LA12X
  • Usable bandwidth (-10 dB): 67 Hz - 20 kHz (A10)
  • Maximum SPL: 137 dB (A10)
  • Nominal directivity:
    • Enclosure: 30°
    • Panflex: 70° / 110° symmetric or 90° asymmetric
  • Transducers:
    • LF: 1 × 10’’ neodymium cone driver
    • HF: 1 × 2.5’’ diaphragm neodymium compression driver
  • Acoustical load:
    • LF: Bass-reflex, L-Vents
    • HF: DOSC waveguide, Panflex
  • Nominal impedance: 8 Ω
  • Connectors:
    • IN: 1 × 4-point speakON
    • LINK: 1 × 4-point speakON
  • Rigging and handling:
    • Flush-fitting two-point rigging system
    • 1 handle, 8 corner stops and 2 ground runners
  • Safety: 1 DIN580-compatible M8 insert
  • Weight (net): 20 kg / 44 lb
  • Cabinet: Premium grade Baltic beech and birch plywood
  • Front:
    • Coated steel grill
    • Acoustically neutral 3D fabric
  • Rigging components: High grade steel with anti-corrosion coating
  • Finish: Dark grey brown Pantone 426 C
  • IP: IP55
