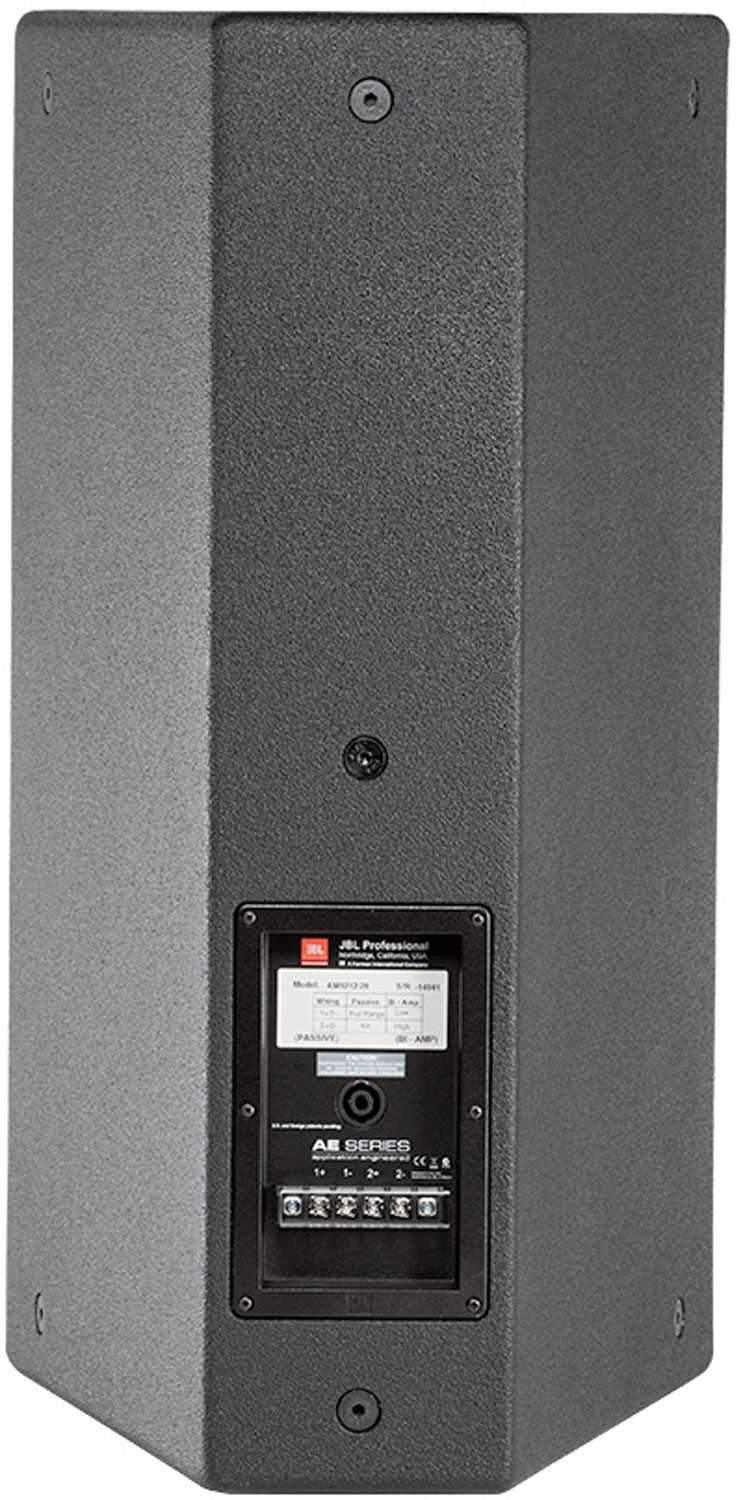

JBL AM5212/66 12-Inch 2-Way Full-Range 60 x 60 Degree Rotatable Loudspeaker

More JBL Pro products

Write a review Q&A SKU: AM5212-66 Solotech ID#: 63161
1 of 3
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

JBL AM5212/66 12-Inch 2-Way Full-Range 60 x 60 Degree Rotatable Loudspeaker

2-Way Loudspeaker System with 1 x 15" LF

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features:

  • 265H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes

Applications:

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues

Specifications:

  • Frequency Range (-10 dB): 35 Hz - 20 kHz
  • Frequency Response (±3 dB): 41 Hz – 18 kHz
  • Coverage Pattern: 60° x 60°
  • Directivity Factor (Q): 14.5
  • Directivity Index (DI): 11.6 dB
  • Crossover Modes: Bi-amp/Passive switchable
  • Passive Crossover Frequency: 2 kHz
  • Transducer Power Rating (AES): LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
  • Long-Term System Power Rating (IEC): Passive mode: 350 W (1400 W peak), 100 hrs
  • Maximum SPL: Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.
  • System Sensitivity (1W @ 1m): Passive mode: 98 dB SPL
  • Low Frequency Driver: 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
  • Nominal Impedance: 8 ohms
  • Sensitivity (1W @ 1m, within operational band): 99 dB SPL
  • High Frequency Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
  • Nominal Impedance: 8 ohms
  • Sensitivity (1W @ 1m): 115 dB SPL
  • Waveguide: PT-H66HF-1
  • Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
  • Finish: Black DuraFlex™ finish. White available upon request.
  • Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
  • Dimensions (H x W x D in vertical cabinet orientation): 783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in)
  • Net Weight: 25.0 kg (55 lb)
  • Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
