JBL AM5212/26 2-Way Full-Range Loudspeaker

2-Way Loudspeaker System with 1 x 12" LF

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features:

• 60° x 40° Coverage
• 262H-1 Differential Drive® Low-Frequency Driver
• 2408H-1 High-Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Available in Black, White and WRC/WRX weather resistant finishes

Applications:

• Performing Arts Facilities
• Theatrical Sound Design
• Auditoriums
• Worship Facilities
• Live Clubs
• Dance Clubs
• Sports Facilities
• Themed Entertainment Venues

Specifications:

• Frequency Range (-10 dB): 37 Hz – 20 kHz
• Frequency Response (±3 dB): 43 Hz – 18 kHz
• Coverage Pattern: 120° x 60°
• Crossover Modes: Bi-amp/Passive switchable
• Passive Crossover Frequency: 1.5 kHz
• Transducer Power Rating (AES): LF: 400 W (1600 W peak), 2 hrs 300 W (1200 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
• Long-Term System Power Rating (IEC): Passive mode: 300 W (1200 W peak), 100 hrs
• Maximum SPL: Bi-amp mode: LF: 122 dB HF: 131 dB
• System Sensitivity (1W @ 1m): Passive mode: 115 dB SPL
• Low Frequency Driver: 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
• Nominal Impedance: 8 ohms
• Sensitivity (1W @ 1m, within operational band): 97 dB SPL
• High Frequency Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
• Nominal Impedance: 8 ohms
• Sensitivity (1W @ 1m): 113 dB SPL
• Waveguide: PT-H126HF-1
• Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
• Finish: Black DuraFlex™ finish. White available upon request.
• Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

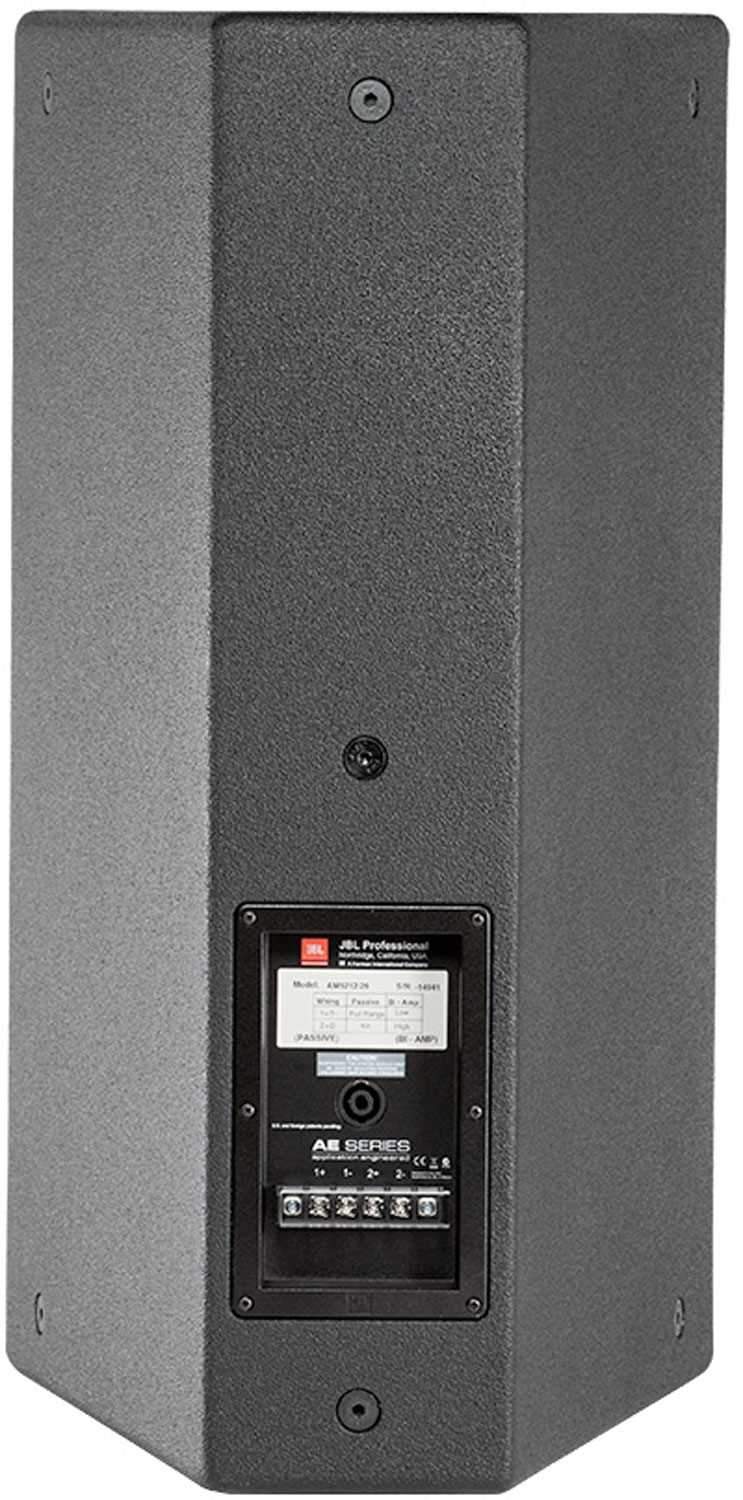

• Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental Specifications: Mil-Std 810; IP-x3 per IEC529
• Dimensions (H x W x D in vertical cabinet orientation): 713 x 371 x 458 mm (28.06 x 14.6 x 18.1 in)
• Net Weight: 20.2 kg (45 lb)
• Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
