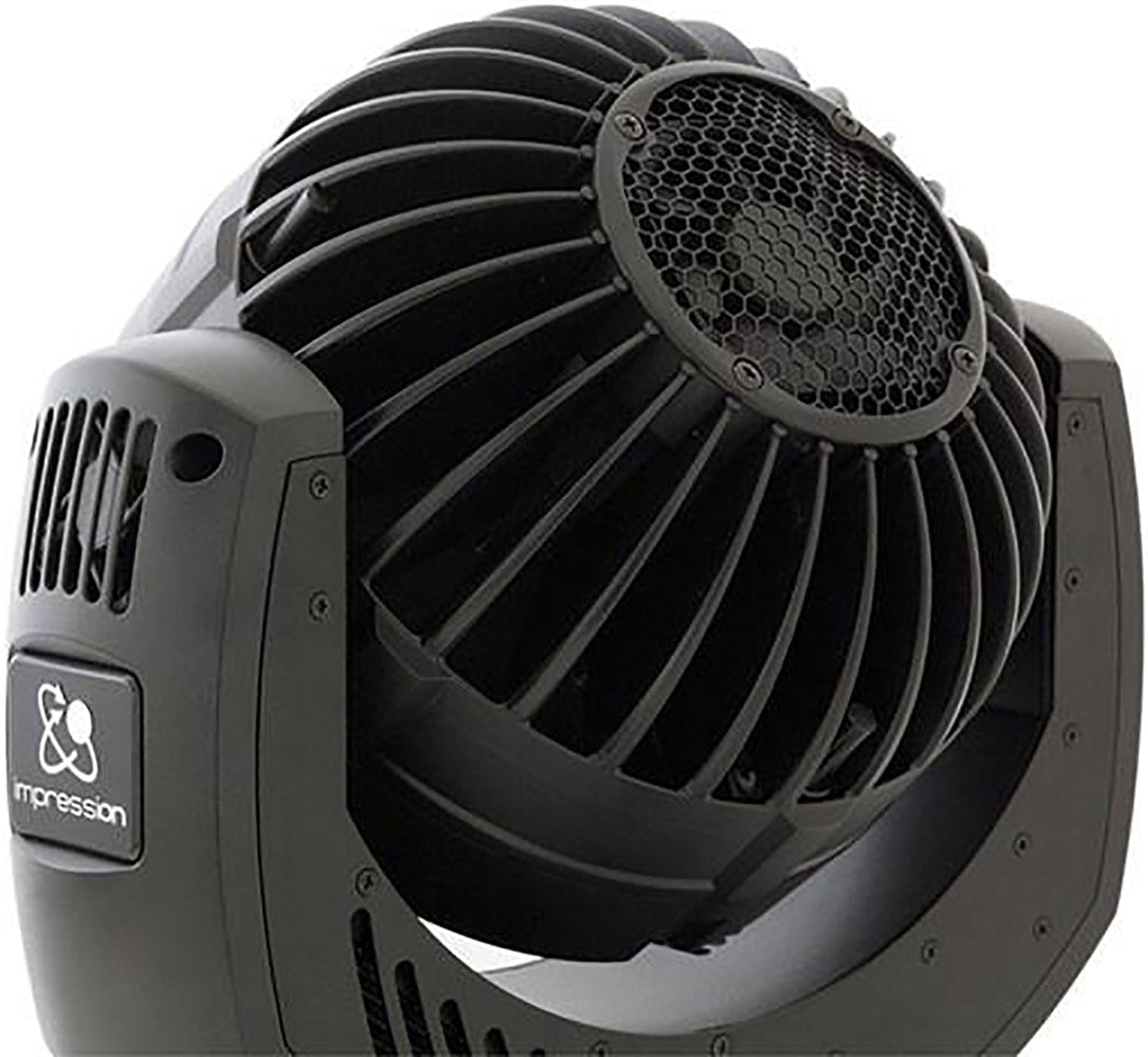

GLP impression X4 RGBY Moving-Head with Zoom Optics
The impression X4 features 19 high power RGBY LEDs, each rated at 15W with a 7 ° - 50 ° zoom range. The housing design is based on the legendary, and award winning, impression 90 and 120RZ fixtures including their baseless design and small footprint. The brand new optical system gives a well defined beam, complete with hard edge in the lower zoom range whilst remaining absolutely homogenous and soft edged at wider angles. RGBY color mixing, variable CTO and a finely tuned dimming curve are standard in the impression X4. The impression X4 features individually controllable LEDs allowing a range of different patterns to be created and displayed on the front lenses, including arrows, numbers, letters and much more, either from stock patterns or through user created patterns.
Features:
- Light Source - 19 x 15 Watt RGBY LED
- Zoom - 7 to 50 degrees
- Colors - RGBY Color Mixing
Specifications:
- Light Source:
- LED Type: Osram Ostar
- Lifetime (Hours): 50,000 h
- LED Count: 19
- LED Colors: RGBY
- Optical System:
- Min. Zoom: 7°
- Max. Zoom: 50°
- Effects:
- Dimmer / Shutter: 0 – 100% electronic
- Shutter: max. 25 Hz
- CTC (Color Temperature Control):
- electronic
- 2,500 – 10,000 K
- Internal Effects:
- LED Macro Effects
- Color presets
- Pan: 623°
- Tilt: 295°
- Movement:
- Resolution: 8 – 16 Bit
- Position Feedback: yes
- Control:
- Control Modes:
- Normal
- Compressed
- HighRes
- Pixel-Mapping
- Protocol: DMX (USITT DMX512-A)
- Display: illuminated graphic LCD
- Cooling:
- temperature controlled
- overheating protection
- Connectors:
- Signal connection: XLR 5-Pin
- Power input: Neutrik PowerCON
- Operating Condtions:
- Mains voltage: 100 – 240 VAC / 50 – 60 Hz
- Power (Watt @ 230V): 350 Watt
- Fuse: 20mm T 5A
- Maximum ambient temperature: 45°C / 115°F
- Operating Position: any
- EEC: C
- EEI: 0.673
- Ec (kWh/1,000h): 268
- Power factor:
- > 0.99 / 220 V AC
- > 0.999 / 110 V AC
- Total heat dissipation (calculated, +/-10%): 1,200 BTU/h
- Mounting Options:
- Safety wire attachment: 2 eyelets
- Standing: Removable baseplate with brackets for ratchet belt
- Hanging (horizontally): adjustable bar for sideways truss installation (optional)
- Hanging (vertically): M10 socket for half coupler, or other clamp
- Housing Colors:
- Standard colors: black
- Dimensions & Weight:
- Height (head vertical): 85 mm / 15.2 in
- Width (across yoke): 340 mm / 13.4 in
- Length: 242 mm / 9.52 in
- Weight: 7.5 kg / 16.5 lbs
