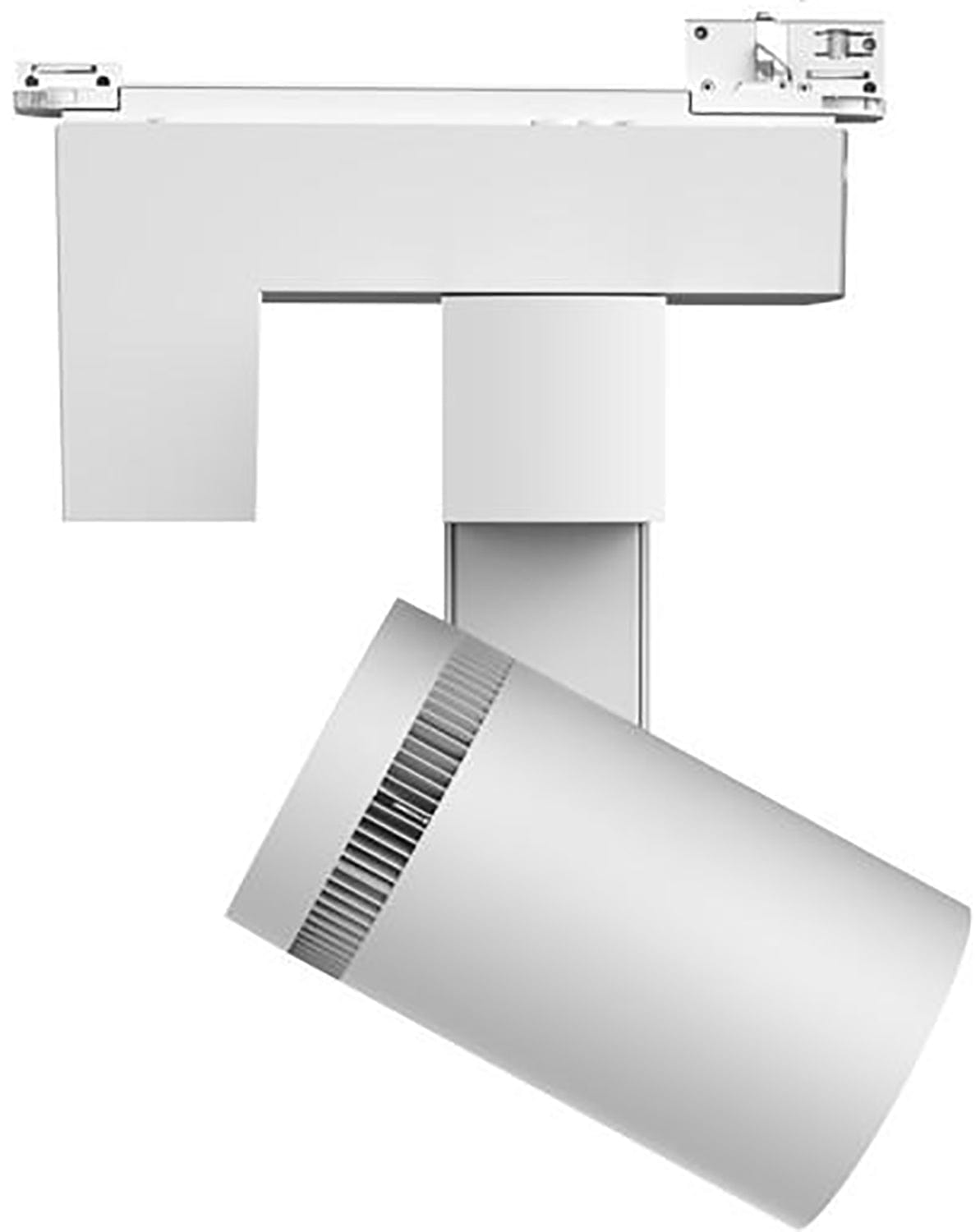

GLP AGILIO
The Agilio Wash Light delivers illumination with high-quality white LED technology and exceptional colour rendering.
The wash light features motorised zoom optics that transition seamlessly from narrow to wide coverage, creating a homogeneous light field across any venue.
It has dual motorised pan and tilt control enabling precise positioning and dynamic effects, while offering a selection from three colour temperature options, 3,000K (warm), 4,000K (neutral), and 5,700K (cool), to match your production requirements and achieve consistent colour accuracy across multiple fixtures.
The Agilio Wash Light is available in black or white.
Features:
- Colour Temperature Control - 4,000 K standard, 3,000 K and 5,700 K on request
- Bright Output - Bright Output of up to 6,000 lm
- iQ.Mesh - iQ.Mesh Technology with App Control
Specifications:
- Light Source:
- Type: White Light LED
- Light Source Power: 100 W
- Light Source Lifetime: 50,000 h
- CCT: 4,000 K (standard); 3,400, 5,700 (on request)
- CRI (Ra): 95+
- CQS: 90+
- TLCI: 90+
- TM-30 Rf: 90+
- TM-30 Rg: 95+
- Optical System:
- Output: up to 6,200 lm
- Min. Zoom: 15°
- Max. Zoom: 35°
- Zoom Ratio: 1:2
- Output Lens Diameter: 14 mm / 4.5 in
- CCT fixture: 3,784 K
- Others: UVA- and IR-free light
- Control:
- Protocol:
- DMX (USITT DMX512-A)*
- RDM (ANSI/ESTA E1.20)*
- *via DoP
- Setting and addressing:
- DIP Switches für DMX Adresse, DoP Kanal und Addressing Mode
- Fixture Settings via DMX and RDM
- DoP
- Software Update:
- DMX link
- via DProg
- High-Res Channels:
- Dimming
- Pan
- Tilt
- Dimming Curves:
- linear
- logarithmic
- Square
- Pan Movement Angle: 450° in 16 Bit Resolution
- Connectors:
- Power input: 3-circuit track adapter (fix connected to phase 3)
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- Fuse: T2A 250 V 5x20mm
- max. power (@230V): 120 W
- typ. Power (@ 230V): 116 W
- min. power (@230 V): 12 W
- Thermal Specifications:
- Cooling: combined convection and forced air
- min. ambient temperature (Ta min.): 5 °C / 40 °F
- Total heat dissipation (calculated, +/-10%): 410 BTU/h
- Mounting Options:
- Location: Dry location only. Only to be installed outside harms reach
- Construction:
- Housing Colour: White
- Housing Material:
- high-impact flame-retardant thermoplastic
- Aluminium
- steel metal plates
- Protection Rating: IP 20
- Construction Features:
- Static-Position at No-Power
- Manual Movement Button
- Power Track mount Adapter
- Optional Optic Accessories (Beam shaper)
- Architectural Design (by Zumtobel)
- DIP Switches for DMX Address, DoP Channel and Addressing Mode
- Dimensions & Weight:
- Height (head vertical): 364 mm / 14.4 in
- Height (head straight down): 389 mm / 15.3 in
- Width (head straight down): 278 mm / 10.9 in
- Depth (head straight down): 125 mm / 4.9 in
- Weight: 4.85 kg / 10.7 lbs
