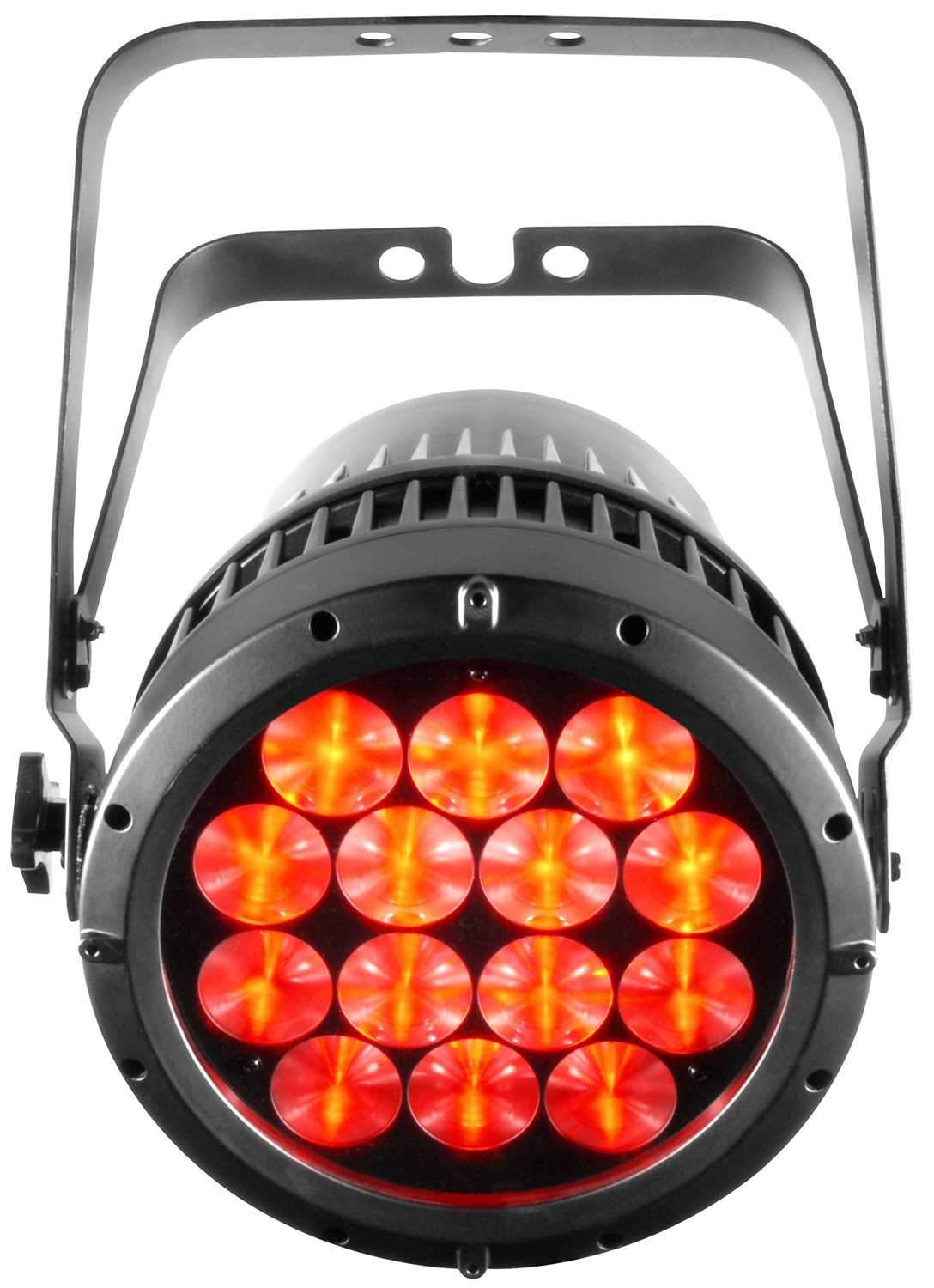

Chauvet COLORado 2-Quad Zoom Tour 14 x 15-Watt RGBW LED

COLORado 2-Quad Zoom Tour is a reliable PAR-style powerhouse featuring fourteen 15-watt quad-color RGBW LEDs, a zoom range of 11° to 43° and nine dimming curves offering the creative freedom of use as a beam, a wide flood, or both in the same rig. Secure Neutrik powerCON in addition to 3-pin and 5-pin DMX input/output connections and its tough construction make it a reliable, tour-ready addition to any rig.

Features:
  • RGBW color mixing via DMX or manually
  • Zoom control via DMX or manually
  • Color temperature presets 3200 to 10000 K
  • Built-in auto and custom programs recalled via DMX and Master/Slave
  • 16-bit dimming of individual colors as well as master dimmer
  • Selectable, smooth dimming curves for programming versatility
  • Color macros with included speed adjustment
  • Double-bracketed yoke doubles as a floor stand
  • Neutrik powerCON power input/output connections
  • 3- and 5-pin DMX input/output connections
  • LED display with passcode protection
Specifications:
  • Light source: 14 x 15-watt LEDs (quad-color RGBW), (985 mA), 50,000 hours life expectancy
  • Color temperature (range): 2800 to 10000 K
  • Beam angle: 6° to 30°
  • Field angle: 11° to 43°
  • Zoom angle: 11° to 43°
  • Illuminance (11°): 8,000 lux @ 5 m
  • Illuminance (43°): 695 lux @ 5 m
  • PWM frequency: 1,200 Hz
  • Color macros: 20 macros
  • Dimmer: electronic
  • Shutter/strobe: electronic
  • Zoom: motorized
  • Strobe rate: 0 to 20 Hz
  • Standalone color mixing: yes
  • Color temperature presets: yes
  • Dim modes: 5
  • Dim curves: 4
  • Built-in automated programs: yes
  • Customizable programs: yes
  • Recall custom programs: yes
  • Power connection: Edison (Local) plug to Neutrik powerCON
  • Power input: Neutrik powerCON
  • Power output: Neutrik powerCON
  • Data connectors: 3- and 5-pin XLR
  • Cable length (power): 5" / 1.5 m
  • Control protocol: DMX
  • DMX channels: 3, 4, 5, 6, 7, 12 or 17
  • Modes/personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)
  • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
  • Power and current: 205 W, 1.71 A @ 120 V, 60 Hz
  • Power and current: 208 W, 0.99 A @ 208 V, 60 Hz
  • Power and current: 212 W, 0.93 A @ 230 V, 50 Hz
  • CE, MET
  • IP rating: IP20, dry location
  • Included: COLORado 2-Quad Zoom Tour, Neutrik powerCON power cord, Gel frame holder (9" / 229 mm accessories), Gel frame
  • Compatiable accessories: professional clamps: CTC-50HC, CTC-50HCN, Neutrik powerCON cables3- or 5-pin DMX cables color blending filters: DF60X1D, DF20D
  • Exterior color: black
  • Housing material: aluminum die-cast
  • Accessory holder/gel frame size: 9" / 229mm
  • Dimensions: 11.1" x 9.3" x 13.8" / 283mm x 236mm x 348mm
  • Weight: 17.8 lb / 8.1 kg
