ETC Source 4WRD PARNel

The Source 4WRD PARNel transforms your Source 4WRD II LED into a versatile softlight fixture. This accessory delivers a smooth, symmetrical field across a 25º-45º range, allowing you to adjust from spot to flood configurations with ease.

The Source 4WRD PARNel runs at 575 watts, and it matches the output of traditional 1000W PAR64s while consuming 40% less energy.

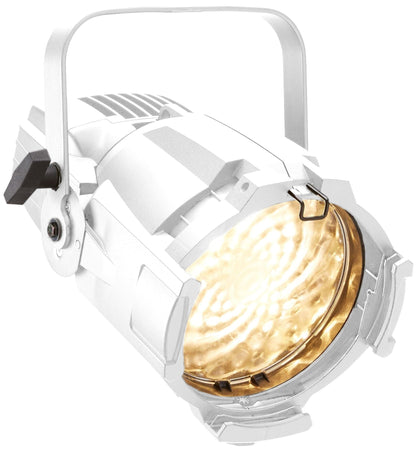

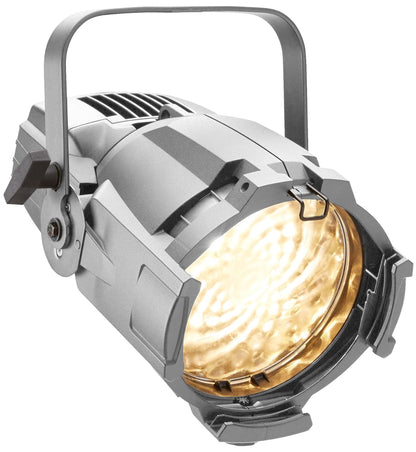

The Source 4WRD PARNel is available in black, silver or white.

Features:

• Fixture bodies for use with Source 4WRD II LED
• Works just like a Source Four PARNel, using the same accessories
• 155 W at full output
• Brighter than the 750 W HPL versions
• Uses same Source 4WRD II LED as the Source 4WRD II ellipsoidal

Specifications:

• Source:
  • LED details: S4WRD LED (48 Cree LEDs) *Not Included*
  • Max lumens: 9,909 (PARNel) w/ S4WRD
  • Lumens per watt: 63 (PARNel)
  • L70 rating (hours to 70% output) >45,000 hours (LM84 test pending)
  • Notes: S4WRD LED sold separately
• Colour:
  • Colours used: Warm or Cool White
  • Colour temperature range: 3200 K 80 or 90+ CRI, 5900 K 90+ CRI
  • Calibrated array: No
  • Red shift: No
  • Notes: S4WRD is available in 80+ CRI (Standard) and 90+ CRI (Gallery)
• Optical:
  • Beam angle range- PARNel: 25°–46°
  • Gate size: N/A
  • Aperture size: 7 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: No
  • Notes: PARNel ships with PARNel lenses.
• Control:
  • Input method: DMX Control or Line Dimmed
  • Protocols: DMX / RDM via RJ45
  • Modes (Footprint): 1 Channel (Intensity) for DMX
  • RDM configuration: Yes
  • UI type: 7-segment address display, local level control via UI
  • Local control: Yes
  • Onboard pre-sets: No
  • Onboard sequences: No
  • Onboard effects: No
  • Fixture to fixture control: No
• Electrical:
  • Voltage range: 209–252 V, 50 Hz (230 V)
  • Input method: Hard-wired, 1 m cord, bare end (230 V)
  • Inrush: 12 A (first half-cycle) at 230 V
  • Fixtures per circuit: 6 fixtures per non-dimmed circuit (ER15AFR module)
  • Wattage (Typical/Standby): 175 W / 3.7 W (230 V)
  • Current draw: 0.75 A at 230 V
  • Notes: When using line dimming, see the S4WRD Manual for dimmer setup When using line dimming, standby power is 0 W
• Thermal:
  • Ambient operating temp: 5°–50° C (41°–122° F)
  • Fan (controllable): Yes (no)
  • Droop compensation: No
  • dB range: 28 dBa average at 1 m
  • BTUs/hour: 529
• Physical:
  • Materials: Die-cast aluminium
  • Colour options: Black
  • Mounting options: Yoke
  • IP rating: IP-20
  • Weight: PARNel: 3.5 kg (7.7 lb)
  • Included accessories: Colour frame
  • Notes: Includes S4WRD mounting post. Required S4WRD LED available separately
• Warranty:
  • Fixture body: 5 years
  • LED array: 10 years
