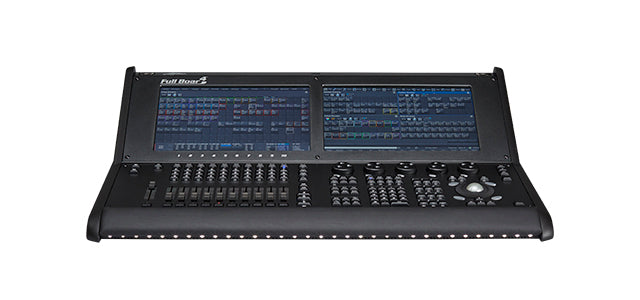

ETC Hog 4 Full Boar 4 Lighting Console

The Hog 4 Full Boar 4 is a lighting console with dual 15.6" multi-touch monitors, and two additional video outputs for expanded workspace visibility. Also, it offers four onboard DMX universes and 12 universes of onboard processing.

The console has two gigabit Ethernet ports to support Art-Net and sACN protocols, while HogNet and FixtureNet connectivity enables seamless console integration.

The Full Boar 4 has four local DMX outputs, dual external touchscreen connections, USB, SMPTE, and MIDI ports to conclude the available I/O.

Features:

• Robust Hog 4 OS operating system
• Hog-Net etherCON connector
• Fixture-Net etherCON connector
• Unlimited simultaneous crossfades
• Internal solid-state hard drive
• Two internal 15.6-inch 10-point touchscreens
• Up to two external DisplayPort monitors/touchscreens supported
• 10 motorized playback faders
• Motorized Grand Master
• Dedicated DBO toggle key
• Five expanded-wheelset encoders
• 12 user-assignable function keys with associated LCD
• Tri-axis backlit trackball with rotary encoder and four configurable buttons
• Kensington security slot
• Integrated dimmable white lap work light
• Integrated dimmable blue vent light
• Two dimmable white/blue desk lights included
• Two USB flash drives for show storage and console recovery included
• Dust cover included
• Custom road case included
• Compliance: ETL, CETL, CE
• Capture Lighting Design Software, Quartlet

Specifications:

• Onboard output processing- 12 universes
• Onboard DMX-512 outputs- 4
• Faders- 10 motorised
• Integrated touchscreens- 2 x 15.6"
• External touchscreens- 2
• Encoder wheels- 5
• User keys- 12 with LCD
• Front Work Light
• Dedicated GM & DBO
• Backlit trackball
• Integrated LTC & MIDI I/O
