Description

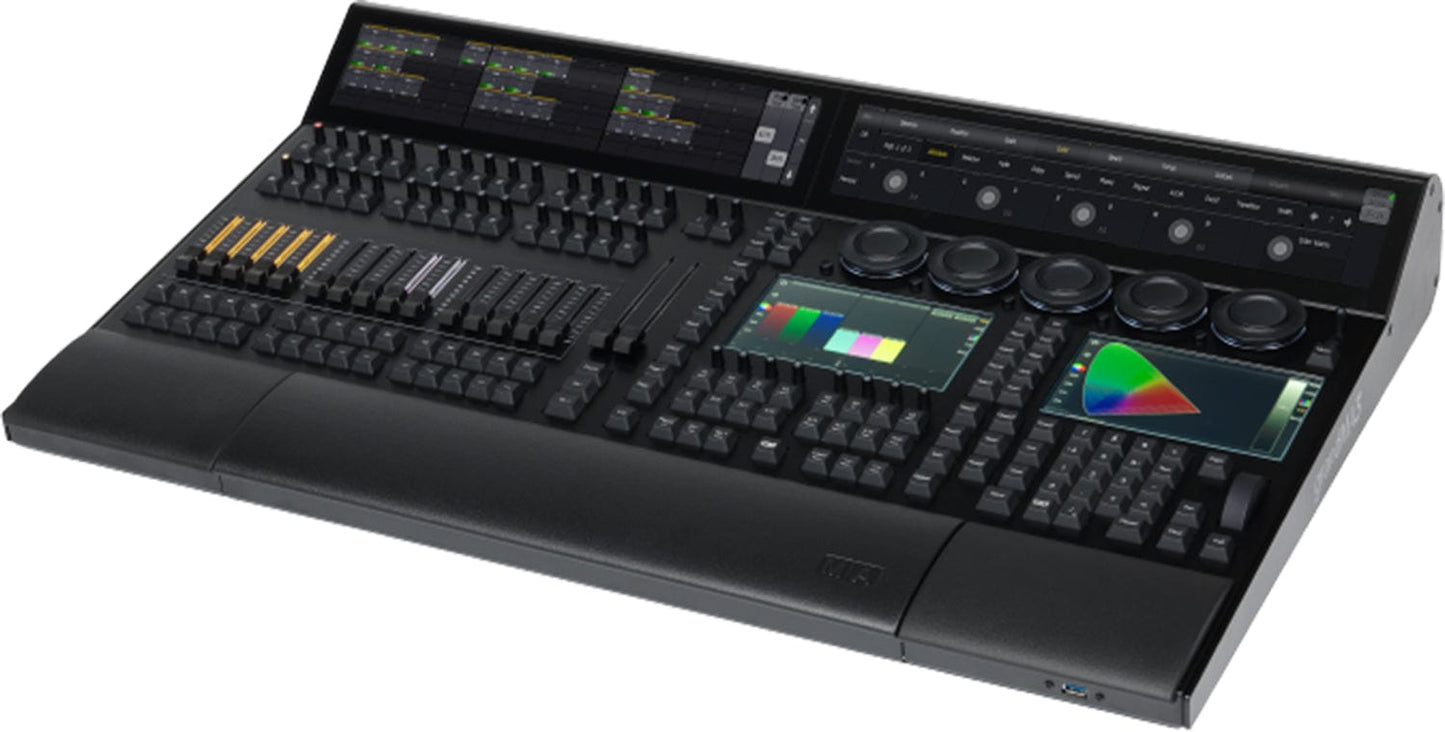

MA Lighting MA4010503 MA grandMA3 Light CRV Lighting Console

The grandMA3 light CRV (Control Room Version) console is the work-horse of the range but supplied without the monitor wing. Designed for use in control rooms where sightlines can be challenging, the grandMA3 light CRV features 2 additional external monitor ports to facilitate the convenient location of external 3rd party touchscreens without compromising the grandMA3 light console functionality.

Features:

  • Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
  • 6 DMX outputs, 1 DMX input
  • 2 internal letterbox multi-touch screens
  • 2 internal multi-touch command screens
  • 4 external multi-touch screens can be connected
  • 41 rotary RGB backlit encoder
  • 5 backlit dual encoders
  • 15 backlit motorized 60 mm faders
  • 60 separate playbacks
  • 16 assignable x-keys
  • Integrated keyboard drawer
  • Built-in uninterruptible power supply (UPS)
  • 3 etherCON connectors, 6 USB connectors
  • 2 backlit motorized A/B faders 100 mm
  • Individually backlit and dimmable silent (clickless) keys

Specifications:

  • Parameters: 16 384 (HTP/LTP)
  • Parameters Mode2: 4 096 (HTP/LTP)
  • Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
  • Power: max. 300 VA
  • Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
  • Dimensions:
    • 811 x 539 x 169 mm / 32 x 22 x 7 in (width x depth x height, drawer closed)
    • 811 x 644 x 169 mm / 32 x 26 x 7 in (width x depth x height, drawer opened)
  • Net weight: 25 kg / 56 lbs
  • Connectors:
    • 1 x powerCON TRUE1
    • 3 x etherCON/RJ45
    • 6 x DMX512-A Out (5pin XLR female)
    • 1 x DMX512-A In (5pin XLR male)
    • 1 x MIDI In (5pin DIN female)
    • 1 x MIDI Out (5pin DIN female)
    • 1 x Linear Timecode (3pin XLR female)
    • 1 x Audio In (3pin XLR female)
    • 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
    • 4 x DisplayPort 1.2 for external screens
    • 2 x S/PDIF In and Out
    • 3 x USB 2.0 (type A)
    • 3 x USB 3.0 (type A)
    • 2 x LED desk light (4pin XLR female)
