ETC ColourSource Par

The ColourSource Par delivers lighting in a compact, intuitive package. Its four-color mixing system produces vibrant outputs and refined pastels with exceptional brightness.

The Par is engineered with advanced thermal management to ensure reliable performance, and can operate with or without a lighting console. Also, it offers a lifespan of 55,000-hours.

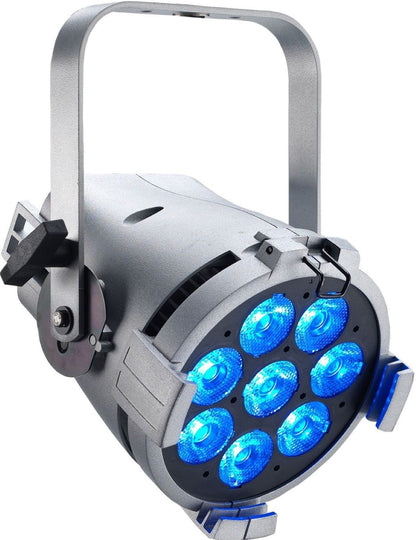

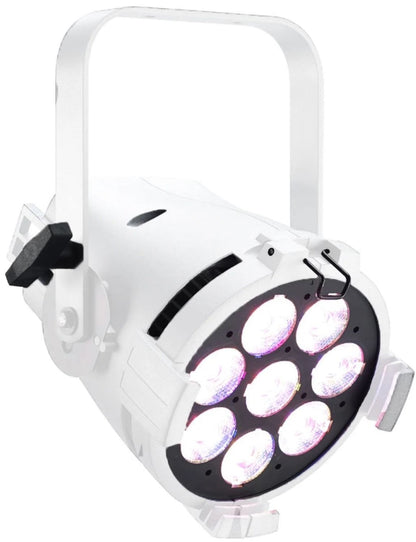

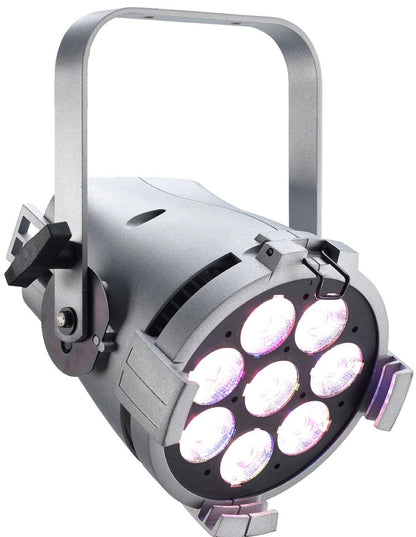

The ETC ColourSource Par is available with with 5-pin DMX/XLR, in both Original and Deep Blue arrays, and black, white or silver.

Features:

• Three array options:
  • Original RGB-L (Red/Green/Blue/Lime)
  • Deep Blue RGI-L (Red/Green/Indigo/Lime)
  • Pearl (Warm and Cool White), see separate datasheet
• Homogenized optics
• Simple user interface with seven-segment display
• powerCON® in and thru
• 5-pin XLR
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminium housing

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Z LED
  • Max lumens: 3,039
  • Lumens per watt: 28.1
  • L70 rating (hours to 70% output): 55,000 hours
• Colour:
  • Colours: red, green, blue, lime
  • Colour temperature range: Colour mixing
  • Calibrated array: Yes
  • Red shift: No
• Optical:
  • Beam angle range: 15.3° (secondary lenses available for multiple beam-spread options)
  • Gate size: N/A
  • Aperture size: 7.5 in / 190 mm
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range:
    • 1,200 Hz (default)
    • 25,000 Hz (via RDM)
• Control:
  • Input method: DMX512 via 5-pin XLR connector
  • Protocols: DMX512/RDM
  • Modes (footprint): 4 modes
  • RDM configuration: Yes
  • UI type: Seven-segment, three-button interface
  • Local control: Yes
  • Onboard pre-sets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: powerCON power in and thru
  • Inrush:
    • 35 A at 120 V (First half-cycle)
    • 49 A at 240 V (First half-cycle)
  • Fixtures per circuit:
    • 9 (15 A power thru connector)
    • 10 (R20 module or similar)
  • Wattage typical:
    • 90 W at 120 V
    • 89 W at 240 V
  • Current draw:
    • 0.75 A at 120 V
    • 0.40 A at 240 V
• Thermal:
  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): Yes (No)
  • Droop compensation: Yes
  • dB range: 24.8 dBA average at 1 m
  • BTUs/hour (RGB-L / DB): 307 / 303
• Physical:
  • Materials: Die-cast, all metal housing
  • Colour option: Black
  • Mounting options: Yoke, floor stand yoke (available as an accessory)
  • IP rating: IP20
  • Weight: 3.77 kg (8.3 lb)
  • Included accessories: Hanging yoke, power cable
  • User interface: Seven-segment, three-button interface
