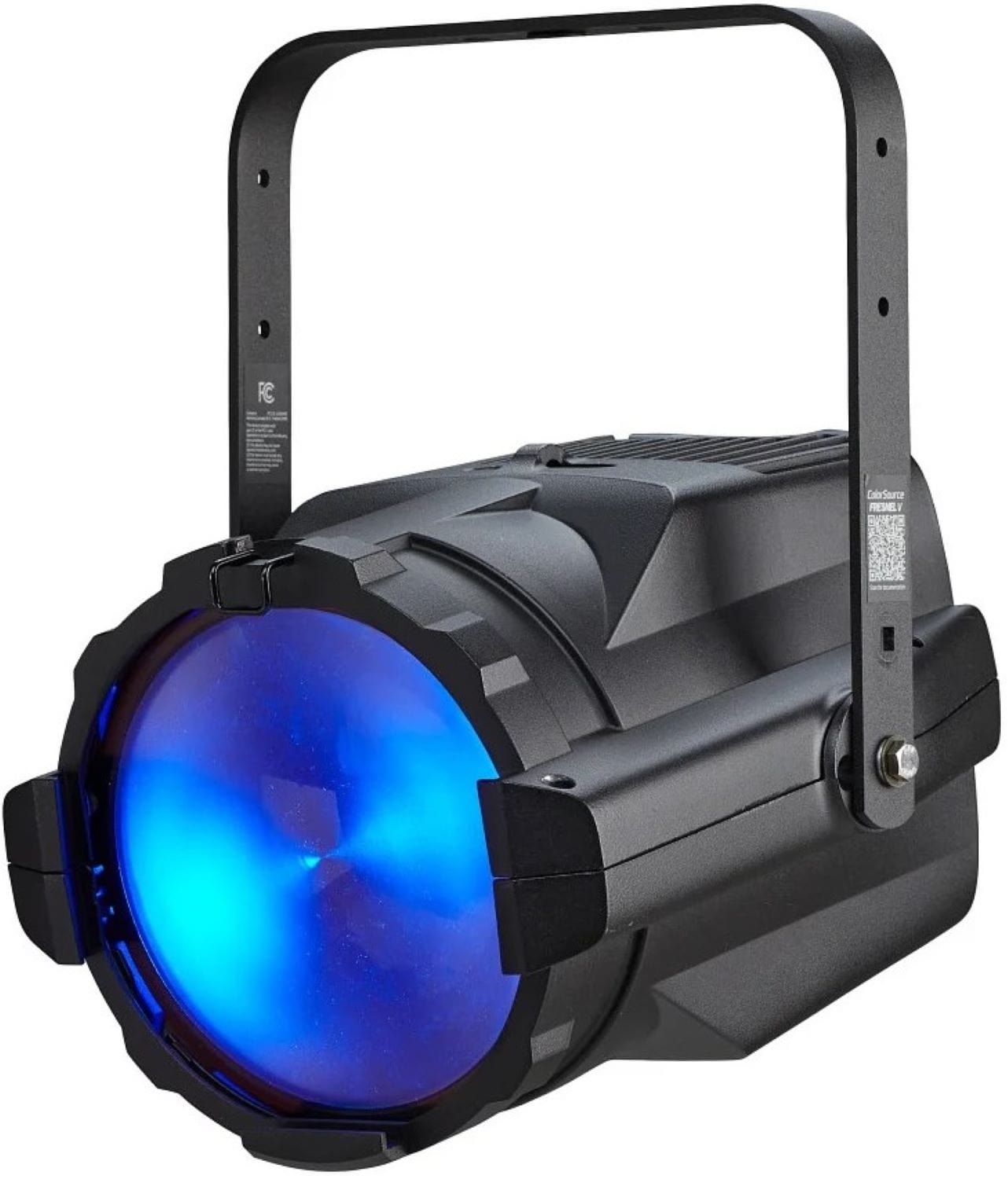

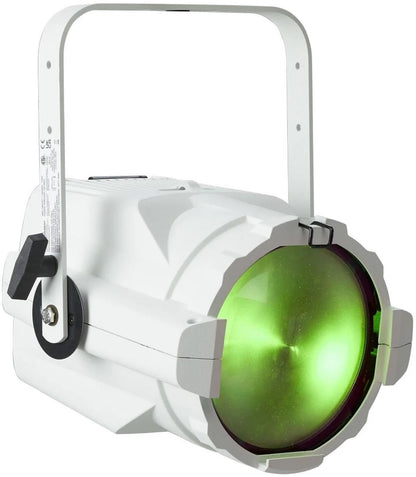

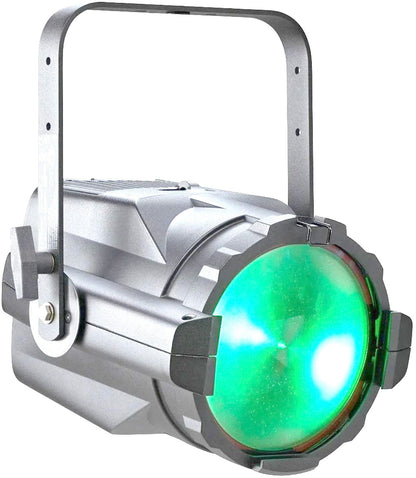

ETC ColourSource V Fresnal V

The ColourSource V Fresnal V delivers lighting in a compact, intuitive package. Its four-color mixing system produces vibrant outputs and refined pastels with exceptional brightness.

The fixture also features a motorized 13°–44° zoom that can be controlled manually from the rear or via DMX.

The ColourSource V Fresnal V offers wireless control using Multiverse technology, NFC configuration from your mobile device, and superior brightness.

Features:

• Five-colour array (red, green, blue, indigo, and lime)
• Motorized 13–44 degree zoom with DMX and local control
• Simple user interface with seven-segment display
• Powercon True1 Top connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM
• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminium housing

Specifications:

• Source:
  • LED details: 44 Lumileds LUXEON C LEDs
  • Max lumens: 5330
  • Lumens per watt: 36
  • L70 rating (hours to 70% output): 54,000 hours
• Colour:
  • Colours used: Red, Green, Blue, Indigo, Lime
  • Colour temperature range: Colour mixing
  • Calibrated array: Yes
  • Red shift: No
• Optical:
  • Beam angle range: 13° – 44°
  • Gate size: N/A
  • Aperture size: 190 mm (7.48 in)
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)
• Control:
  • Input method: 5-Pin XLR, Multiverse wireless (optional), and NFC
  • Protocols: DMX-512, RDM, City Theatrical Multiverse (optional), NFC
  • Modes (footprint): 4 modes, see page 6
  • RDM configuration: Yes
  • UI type: Seven-segment display, three-button interface, Focus encoder
  • Local control: Yes
  • Onboard pre-sets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • FixtureLink: Yes
  • Notes: 15-bit virtual dimming engine
• Wireless:
  • Band: 2.400–2.480 GHz
  • Range: 100 m indoors, 500 m line of sight (subject to conditions)
  • Max receivers:
    • DMX: No limit
    • RDM: Varies by transmitter used
    • Multiverse SHoW Baby: 585
    • Multiverse Transmitter: 5,000
  • Broadcast power: 100 mW
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: powerCON TRUE1 TOP power in and thru
  • Inrush (first half-cycle):
    • 120 V: 36 A
    • 240 V: 57 A
  • Wattage (typical):
    • 120 V: 148.4 W
    • 230 V: 147.0 W
  • Current draw:
    • 120 V: 1.28 A
    • 230 V: 0.70 A
  • Fixtures per circuit on standard R20 breaker: 9 (link up to 8 via Power Thru connector)
• Thermal:
  • Ambient operating temp: 32°F – 104°F (0°C – 40°C)
  • Fan (controllable): Yes (yes)
  • Droop compensation: Yes
  • Average dB: 22.7 dBA
  • BTUs/hour (120 V): 508
• Physical:
  • Materials: Cast and extruded aluminium
  • Colour: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 13.75 lb (6.24 kg)
