Description

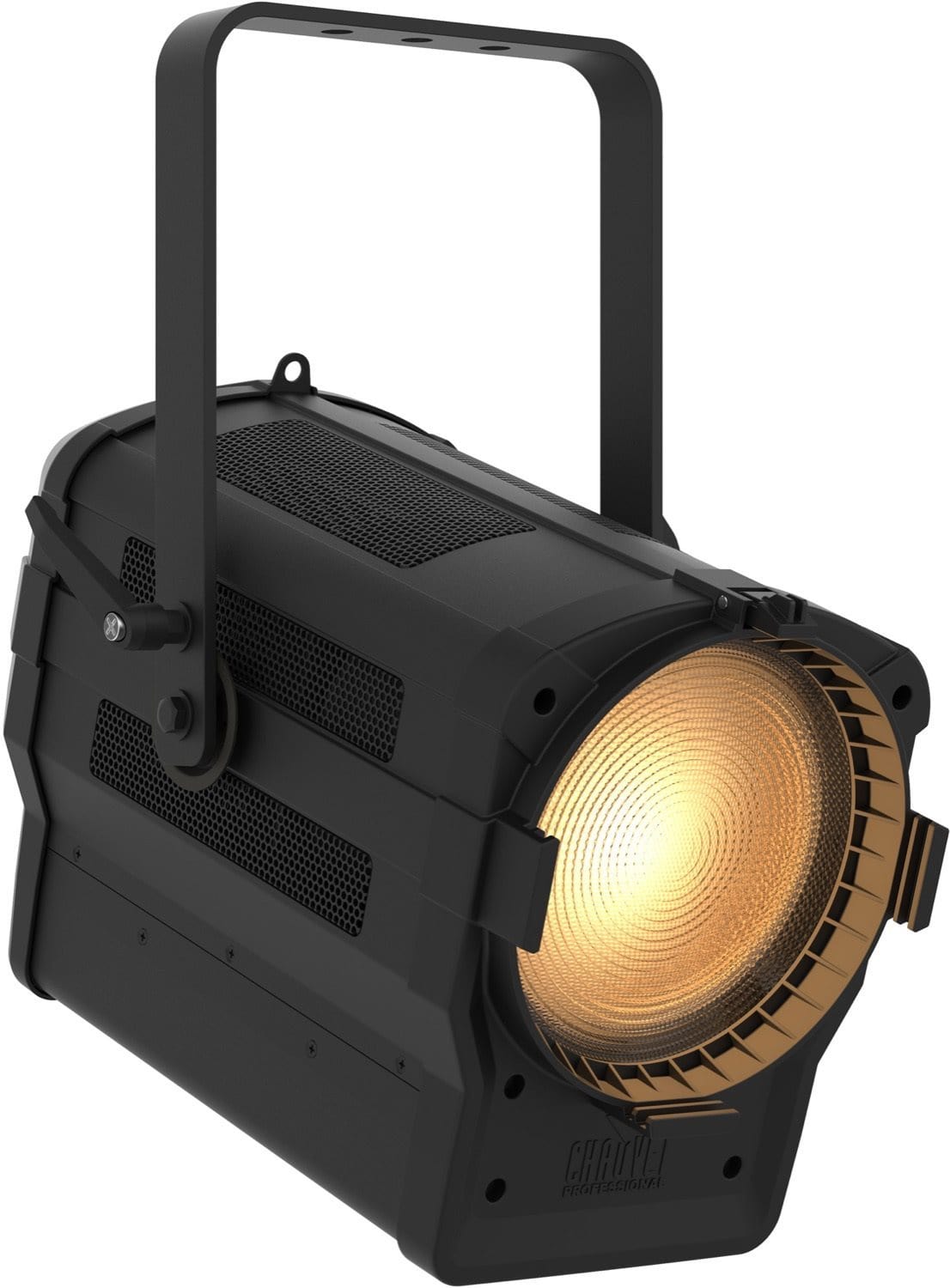

Chauvet Ovation F265WW Fresnel LED Light

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theaters and television studios. A motorized zoom with a 27°- 68° field angle and the light output can be controlled via DMX, on-board dials, RDM, adjustable PWM and an easy to navigate OLED full text display.

Features:

  • Warm white fresnel with output comparable to an 8", 2,000 W Fresnel
  • 16-bit dimming resolution for smooth fades
  • Flat, even field of light
  • Virtually silent operation for use in any situation
  • Motorized zoom angle between 27° to 68°, manually or via DMX
  • Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3142 K
  • CRI: 96
  • Beam Angle: 16° to 46°
  • Field Angle: 27° to 68°
  • Zoom Angle: 27° to 68°
  • Lumens (27°): 9,283
  • Lumens (59°): 12,802
  • Illuminance (27°): 4,010 lux @ 5 m
  • Illuminance (59°): 1,162 lux @ 5 m
  • Illuminance (59°): 1,162 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Specifications:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4
  • Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
  • Weight: 17.2 lb (7.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 227 W, 1.88 A @ 120 V, 60 Hz
  • Power and Current: 234 W, 1.11 A @ 208 V, 60 Hz
  • Power and Current: 235 W, 1.01 A @ 230 V, 50 Hz
  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Ovation F-265WW
  • Neutrik powerCON power cord
  • Gel Frame
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F7.5" Barndoor
  • Light Source: 27 LEDs (quad-color RGBW) 40 W, (2.6A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 5° to 29°
  • Field Angle: 7° to 45°
  • Zoom Angle: 7° to 45°
  • Illuminance (7°): 89,200 lux @ 5 m
  • Illuminance (45°): 2814 lux @ 5 m
  • Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Curves: 4
  • Dimensions: 18.7 x 11.49 x 22.93in 459 x 292 x583 mm)
  • Weight: 68.2 lb (31 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Control Protocol: Art-Net, Kling-Net, sACN, DMX, W-DMX
  • DMX Channels Single Mode: 20, 129, 243 or 297
  • DMX Channels Dual Mode - Function: 9,21,27
  • DMX Channels Dual Mode - Pixel: 81,108,216
  • Art-Net Channels Single Mode: 21, 129, 243 or 297
  • Art-Net Channels Dual Mode - Function: 9,21,27
  • Art-Net Channels Dual Mode - Pixel: 81,108,216
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 1,120 W, 9.51 A @ 120 V, 60 Hz
  • Power and Current: 1,090 W, 5.35 A @ 208 V, 60 Hz
  • Power and Current: 1,100 W, 4.84 A @ 230 V, 50 Hz
  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware
  • Professional Clamp: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX Cables
