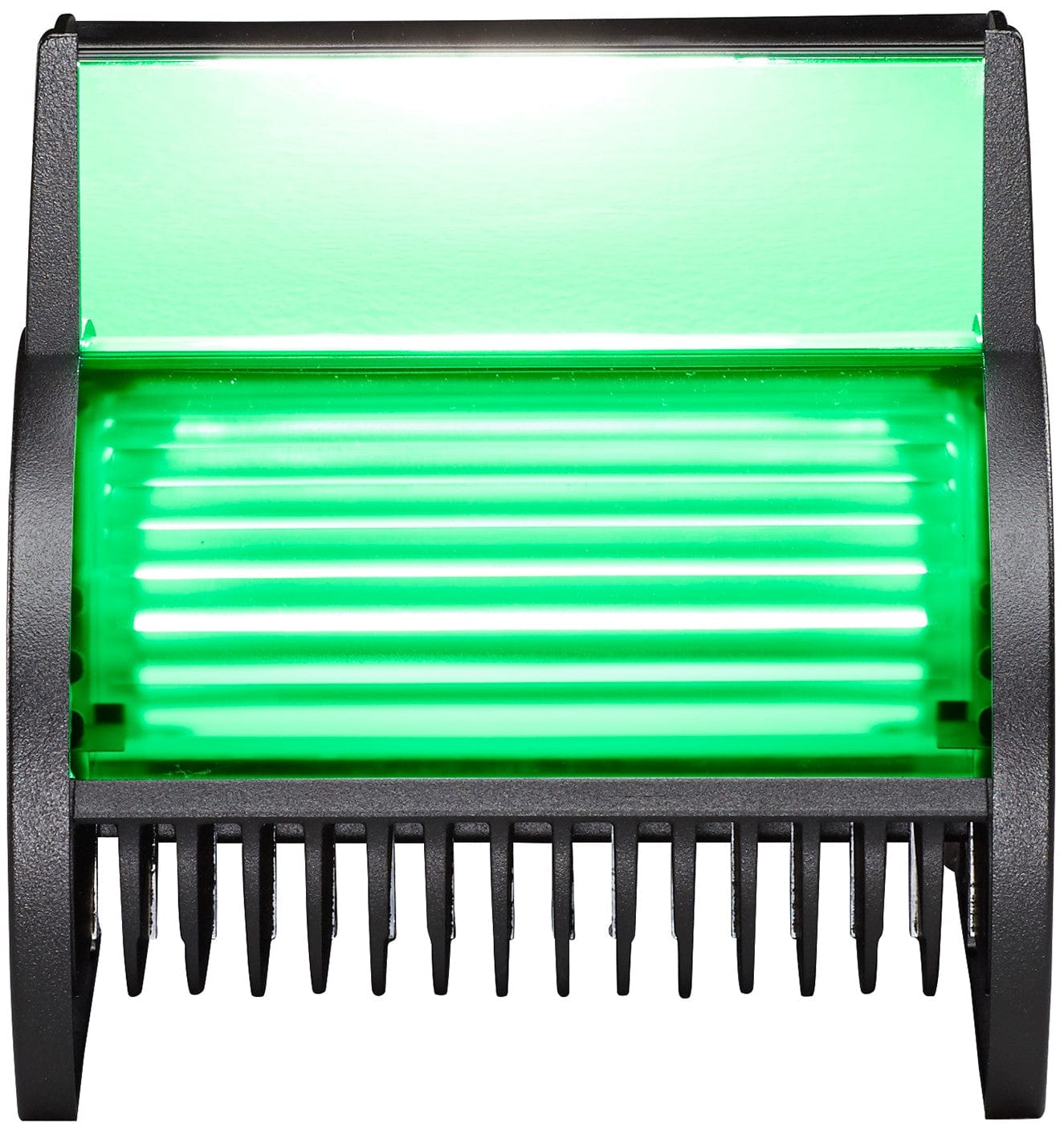

ETC ColourSource CYC

The ColourSource CYC delivers cyclorama lighting with a singular focus: creating luminous washes across any surface. Its compact, fan-free construction houses a five-colour LED engine, providing a range of colours.

This fixture is pre-focused and ready to deploy minimising set-up time.

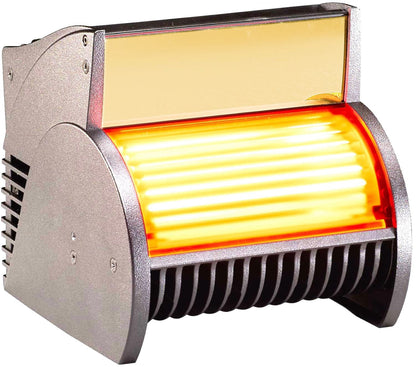

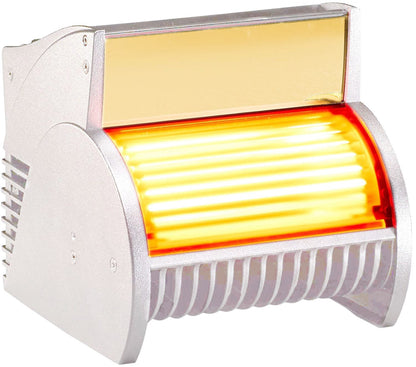

The ETC ColourSource CYC is available in black, white or silver.

Features:

• Compact Design
• Unique, all LED (RGBI-L) 5-color array
• Rich, bright light
• Fanless operation
• Stand-alone pre-sets and sequences
• Simple setup and user interface

Specifications:

• Source:
  • LED Details: 42 Lumileds LUXEON C LEDs
  • Max Lumens: 4117
  • Lumens Per Watt: 31
  • L70 Rating (Hours to 70% output): 50,000 hours (estimate pending testing data)
• Colour:
  • Colours Used: Red, green, blue, indigo and lime
  • Colour temperature range: Variable
  • Calibrated Array: Yes
  • Red Shift: No
• Optical:
  • Beam angle range: N/A (asymmetrical)
  • Gate size: N/A
  • Aperture size: N/A
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
• Note: The ColourSource CYC has a built in accessory for spill control
• Control:
  • Input method: DMX-512 via 5-pin XLR or RJ45 connector
  • Protocols: DMX
  • Modes (Footprint):
  • 5 channel- IRGBS (5)
  • Direct- IRGBILS (7)
  • 1 channel- I (1)
  • RGB- RGB (3)
  • RDM configuration: Yes
  • UI type: 7-segment address display
  • Local control: Yes
  • Onboard pre-sets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • Fixture to fixture control: Yes
• Note: Local level control via UI
• Electrical:
  • Voltage range: 100V-240VAC, 50/60Hz
  • Input method: powerCON in and thru
  • Inrush: 39A (first half-cycle) at 120V
  • Fixtures per circuit: 9 (20A switched circuit, R20 module or similar)
  • Wattage (Typical/Standby): 133W/1.4W
  • Current draw: 1.11A at 120V
• Thermal:
  • Ambient operating temp: 32-104 °F (0-40 °C)
  • Fan (controllable): No (N/A)
  • Droop compensation: Yes
  • dB range: 18.5 dBa average at 1m
  • BTUs/hour: 418
• Physical:
  • Materials: Die-cast aluminium and plastic
  • Mounting options: Yoke and floor
  • IP rating: IP-20
  • Weight 10.3 lbs. (4.67 kg)
