Name: Electro-Voice MTS-6154-64CFWW IPX Amplifier Speaker/LF Chamber/60x40 Degree - Full Weatherized White
Brand: Electro Voice
SKU: MTS-6154-64CFWW

Electro-Voice MTS-6154-64CFWW IPX Amplifier Speaker/LF Chamber/60x40 Degree - Full Weatherized White

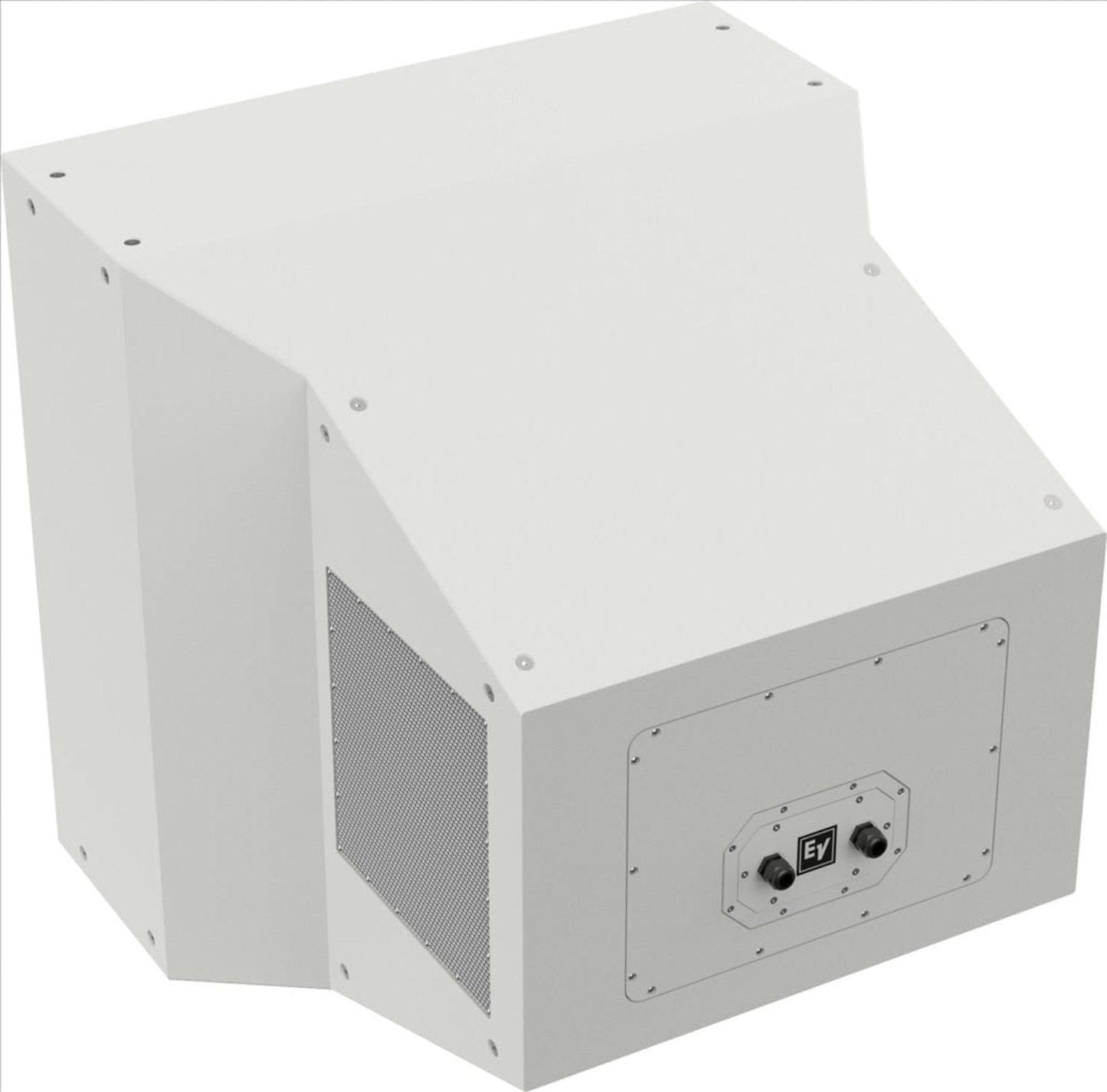

The MTS-6154-64CFWW is a full-range, high-output, point-source loudspeaker with exact directivity for very long-throw applications. Acoustic design, amplifier matching, and digital processing are optimized with proprietary software to ensure precisely distributed SPL that is balanced and controlled throughout the entire coverage area, even at full output. Four slot-loaded, 15-inch high efficiency low-frequency drivers are coupled to the same full range constant directivity waveguide as two coaxial mid/high frequency compression drivers.

This creates a true point-source with substantial bass response, eliminating the need for subwoofers in many applications. The three-way MTS-6154-43CFWW is augmented by a cardioid low-frequency chamber at the rear of the cabinet, resulting in full-range directivity with reduced spill outside the intended pattern, improved intelligibility, and increased low-frequency output. The speaker's coverage pattern is 60° x 40° .The loudspeaker can deliver 151 dB peak (music, with low-frequency response that extends to 55 Hz at-10 dB) and 154 dB peak (speech).The speaker is typically configured in tri amp mode with the two front low-frequency inputs driven as a single4 ohm load. The installer could also drive the front low frequency inputs separately using two cable runs to minimize signal losses over long distances. The loudspeaker is designed for outdoor use with full exposure to the elements. All MTS loudspeakers have an IP55 rating, indicating that they are impervious to dust and water ingress. MTS is engineered for use with Dynacord IPX series amplifiers.

Proprietary speaker settings and limiter functions ensure exceptional performance with long term reliability at extremely high output levels. A package of design files is provided for advanced system simulation in venues. Electro-Voice PREVIEW Loudspeaker Software is the fastest and most accurate way to create acoustic designs with MTS.

Features:

Full-range, high-output, horn-loaded loudspeaker with exact directivity for very long throw applications
Lossless Hydra' waveform converter couples dual coaxial compression drivers to a constant directivity (CD) waveguide with pattern control to below 350 Hz
Four woofers couple to the same waveguide, creating a true point source with substantial bass response
Optimized acoustic design, amplifier matching, and DSP to ensure perfectly controlled SPL and coverage, even at full output
Full-bandwidth directivity control cardioid versions reduce sound spill and improve dynamics, sound quality and speech intelligibility
