Description

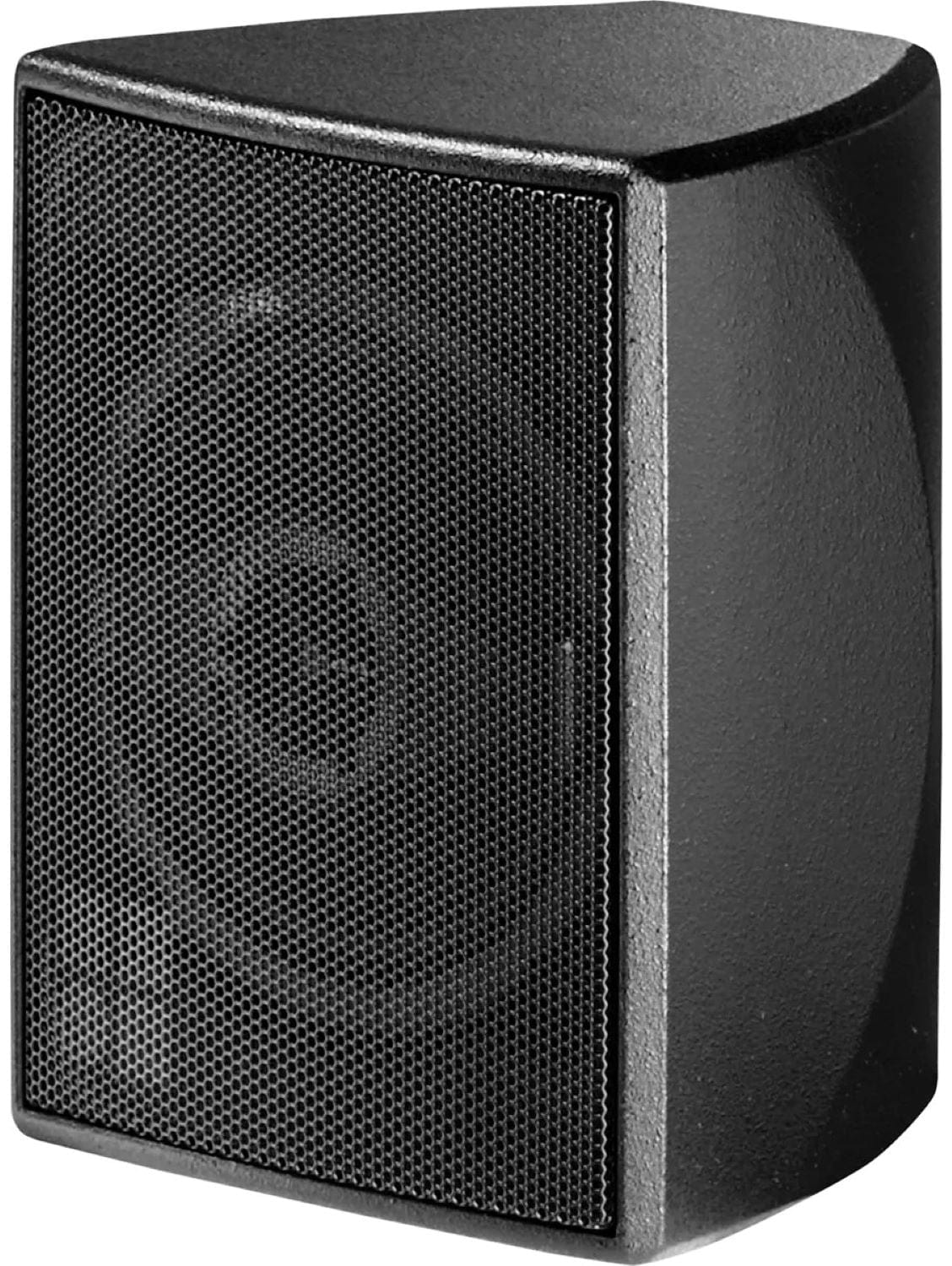

D&B Audiotechnik Z0440.000 E4 4-Inch NL4 Passive Loudspeaker

The E4 is a lightweight 2-way passive loudspeaker using a neodymium LF driver and a coaxially mounted wide dispersion dome tweeter. It offers a wide symmetrical dispersion pattern in the horizontal and vertical plane while the cabinet may be mounted in either attitude. The E4 is intended for mobile near field applications for speech and music reinforcement in theatres, conferences, industrial presentations, broadcast studios and as surround sound, delay and fill systems. It can be used stand-alone or supplemented by different subwoofers from the E-Series. The highly compact sealed enclosure is injection moulded with an impact resistant black paint finish. The loudspeaker cabinet is weather protected and suitable for outdoor use as standard and is also available with a Special Colour (SC) option.

Features:

  • Components 4"/0.75"
  • Dispersion 100° conical
  • SPLmax 115 dB
  • Weight 1.1 kg / 2.4 lb

Specifications:

  • System data:
    • Frequency response (-5 dB standard): 130 Hz - 20 kHz
    • Frequency response (-5 dB CUT mode): 180 Hz - 20 kHz
    • Max. sound pressure:
      • with 10D: 114 dB
      • with D20/5D/30D: 115 dB
      • with D40/D80/40D: 115 dB
    • Cabinets per amplifier channel4
  • Loudspeaker data:
    • Configuration: 2-way compact coaxial loudspeaker
    • Nominal impedance: 16 Ω
    • Power handling capacity (RMS/peak 10 ms): 60/400 W
    • Nominal dispersion angle (h x v): 100° conical
    • Components:
      • 4" driver with neodymium magnet
      • 0.75" dome tweeter coaxially mounted
      • passive crossover network
    • Connections:
      • 2 x NL4
      • two pole push terminal
  • Dimensions / weight:
    • Dimensions (H x W x D):
      • 150 x 120 x 106 mm
      • 5.9 x 4.72 x 4.2"
    • Weight:
      • 1.1 kg
      • 2.4 lb
