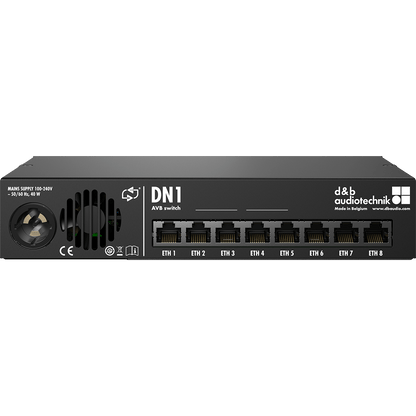

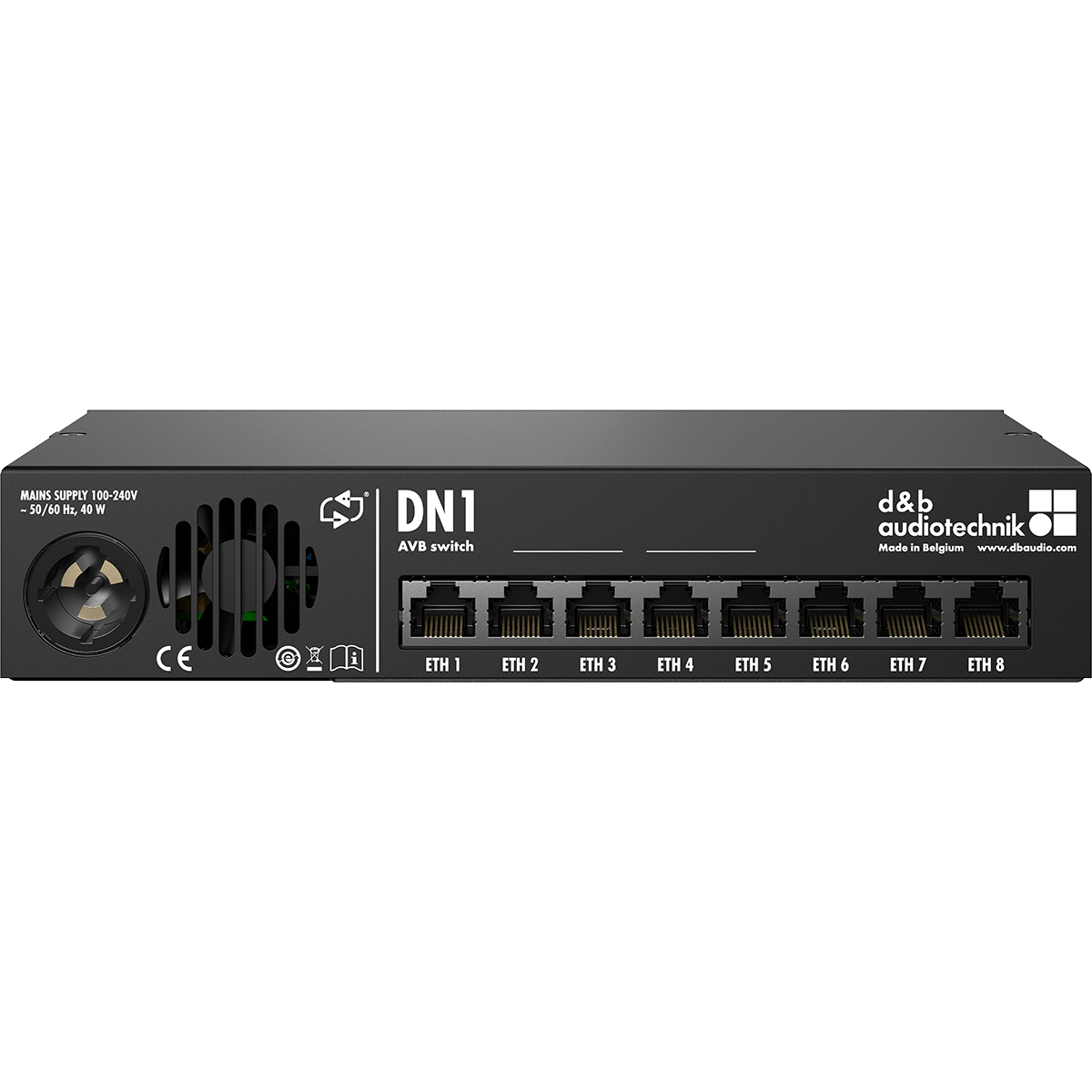

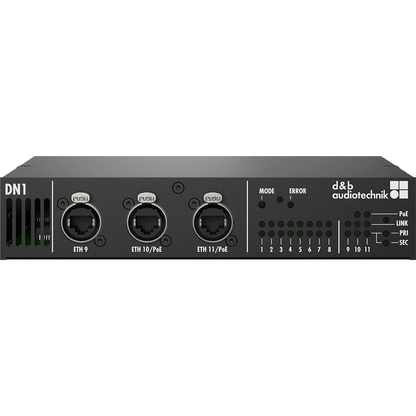

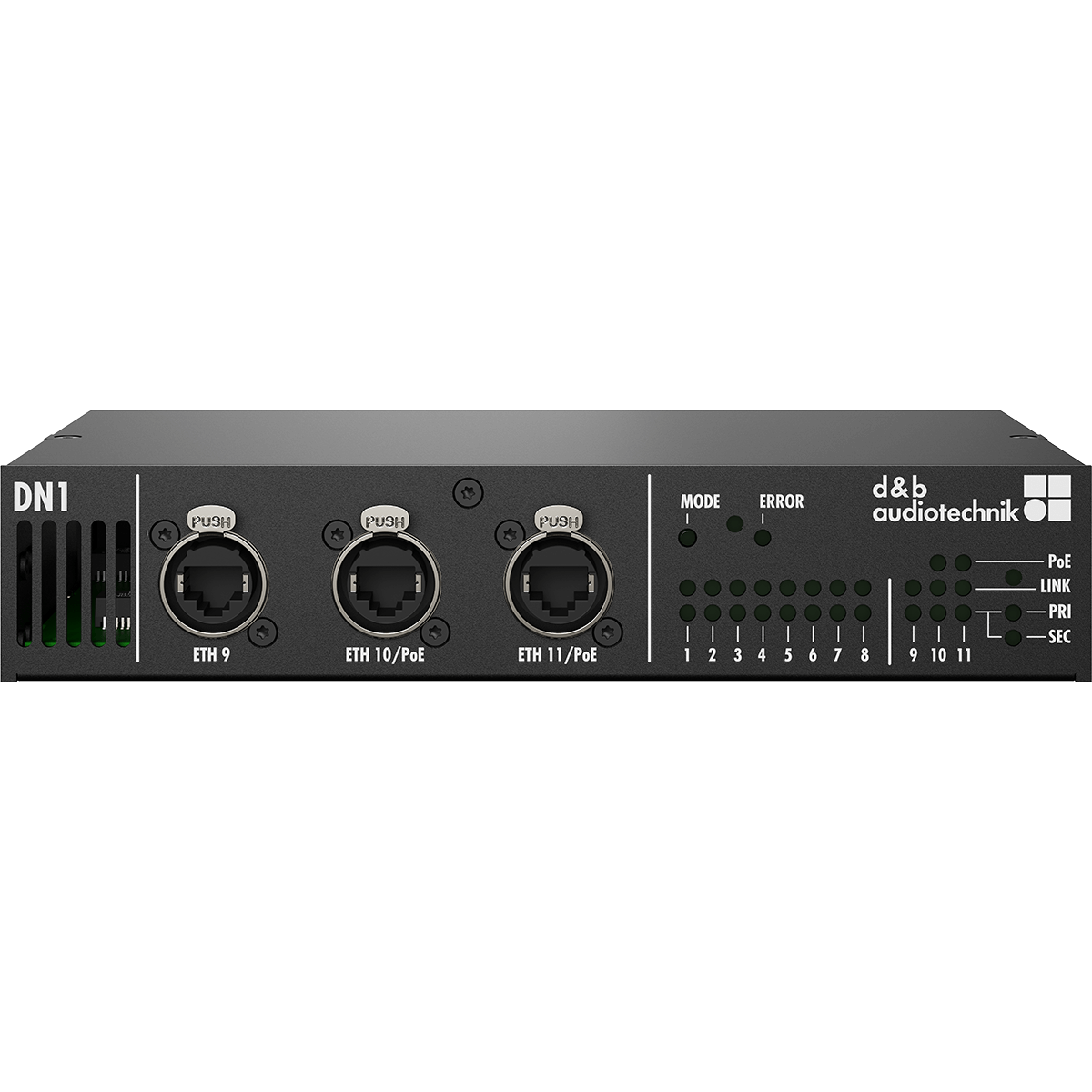

d&b audiotechnik DN1 Ethernet Switch Bridge

Name: d&b audiotechnik DN1 Ethernet Switch Bridge
Brand: d&b audiotechnik

Write a review Q&A SKU: Solotech ID#:

Product variants

Description

The DN1 supports Milan/AVB, AES70/OCA, Dante, and standard IP traffic simultaneously.

The bridge is equipped with eleven IEEE 802.1BA-certified Ethernet ports delivering 10/100/1000 Mbit/s speeds.

The DB1 is housed in a rugged 1 RU x 9.5" chassis. Also, two DN1 units can be mounted side-by-side for a compact setup.

Supporting Milan™/AVB, Dante®, AES67, AES70/OCA and standard IP traffic simultaneously
Plug-and-play approach
Monitoring and setting of IP address and remoteID using the R1 Remote control software
Milan™/AVB primary / secondary network traffic detection and error indication
Two Ethernet ports to connect and power PoE enabled devices
