d&b audiotechnik 5S Loudspeaker
The 5S is a lightweight, passive 2-way loudspeaker featuring a ferrite LF driver and a coaxially mounted wide dispersion dome tweeter. It employs a 5” driver in a compact bass-reflex enclosure and offers a symmetrical dispersion pattern.
The 5S is ideal for stand-alone use or combined with different subwoofers from the xS-Series.
The 5S is available weather-resistant.
Features:
- Components 5"/1"
- Dispersion 100° conical
- SPLmax 118 dB
- Weight 2.5 kg / 5.5 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 80 Hz - 20 kHz
- Frequency response (-5 dB CUT mode): 130 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 117 dB
- with D20/5D/30D: 118 dB
- with D40/D80/40D: 118 dB
- Cabinets per amplifier channel: 4
- Loudspeaker data:
- Configuration: Installation specific 2-way compact coaxial loudspeaker
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 60/400 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
- 5" driver
- 1" dome tweeter coaxially mounted
- passive crossover network

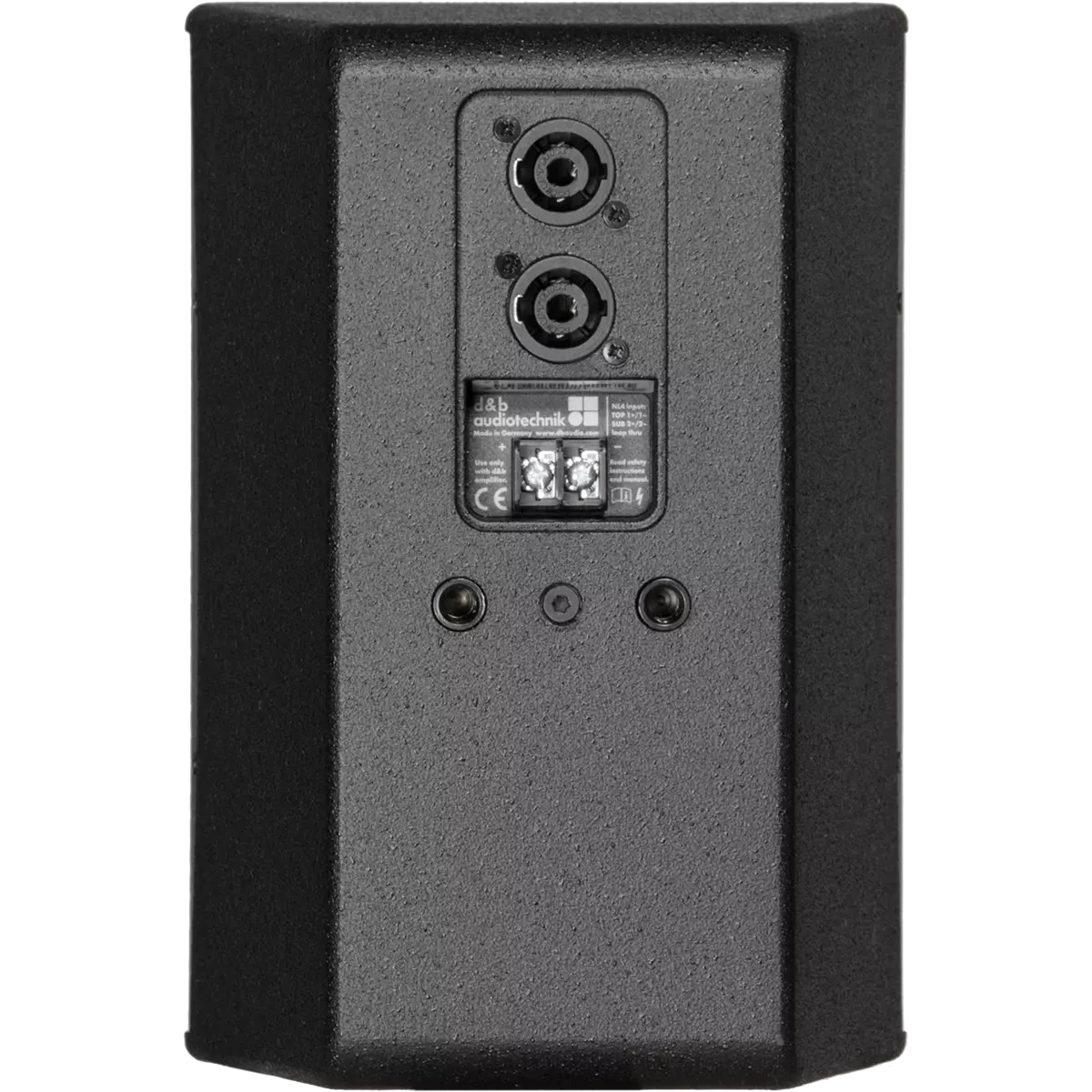

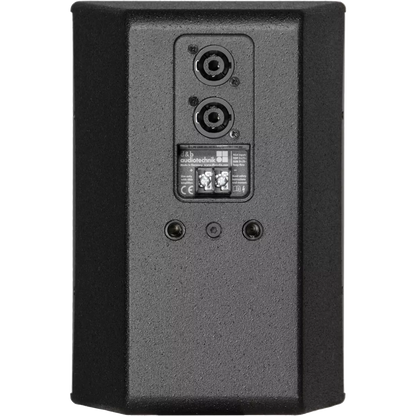

- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 240 x 164 x 160 mm / 9.4 x 6.5 x 6.3"
- Weight: 2.5 kg / 5.5 lb
- System data:
- Frequency response (-5 dB standard): 80 Hz - 20 kHz
- Frequency response (-5 dB CUT mode): 130 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 117 dB
- with D20/5D/30D: 118 dB
- with D40/D80/40D: 118 dB
- Cabinets per amplifier channel: 4
- Loudspeaker data:
- Configuration: Installation specific 2-way compact coaxial loudspeaker
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 60/400 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
- 5" driver
- 1" dome tweeter coaxially mounted
- passive crossover network
- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 240 x 164 x 160 mm / 9.4 x 6.5 x 6.3"
- Weight: 2.5 kg / 5.5 lb
