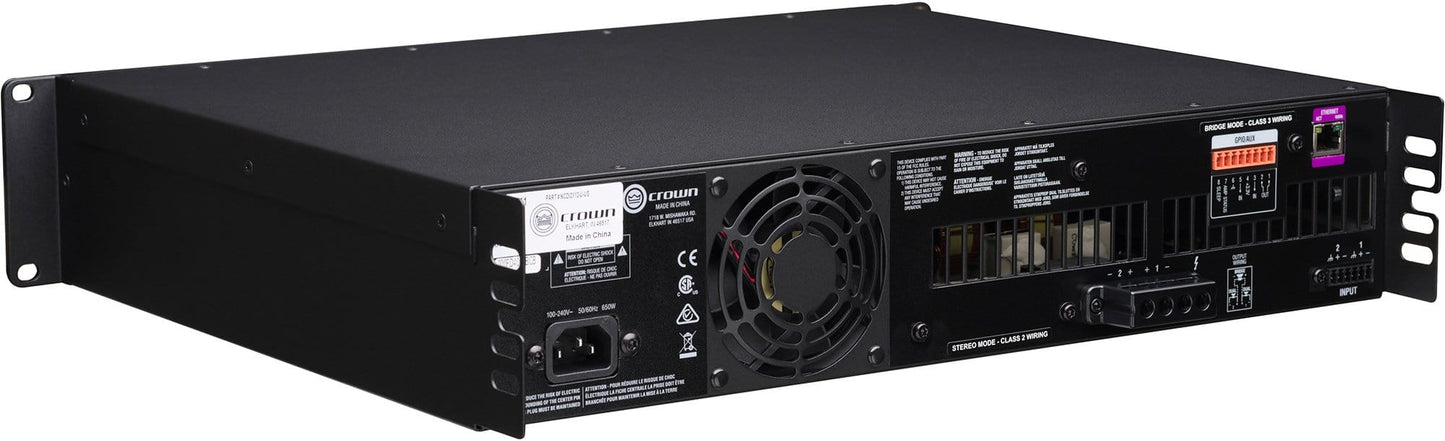

Crown CDi2x1200 2-Channel 1200-Watt Power Amplifier

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 2|1200 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Specifications:

• BLU link: No
• Channels: 2
• Sensitivity (for full rated power at 8 ohms): 0.7V RMS
• Rated Power Output (per channel @ 4 ohms): 1200W
• Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB
• THD (full rated power, 20 Hz - 20 kHz): 0.35%
• Damping Factor (20 Hz to 100 Hz): > 1000
• Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.25dB
• Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
• Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unblanced
• Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion): 19 x 3.5 x 14.71
• Weight: 17.2 lbs (7.8 kg)
• Power Supply Connector: "15A IEC connector, 100 – 240V "
