Description

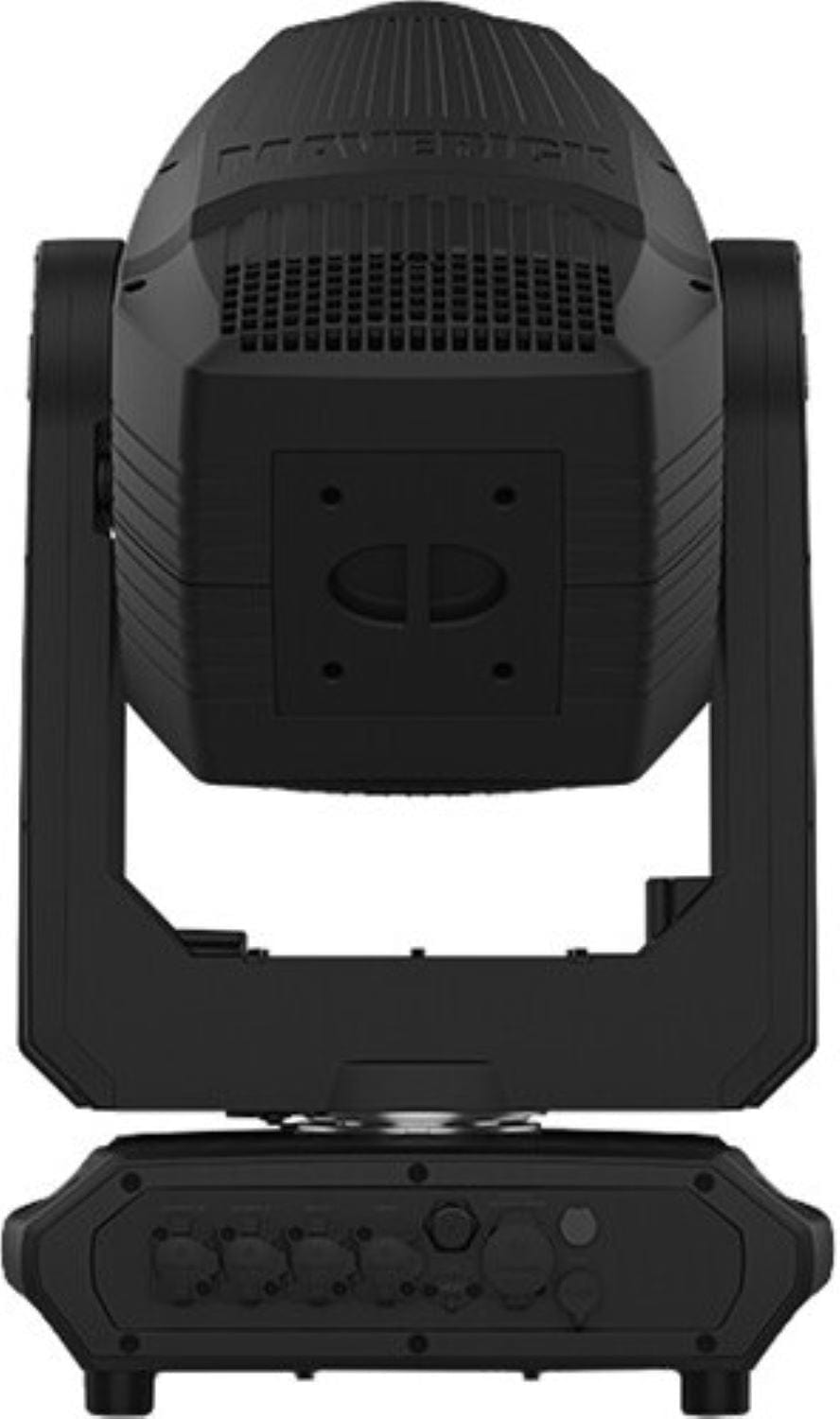

ChauvetPro MAVERICKSTORM1HYBRID Maverick Storm 1 Hybrid Moving Head Light

Maverick Storm 1 Hybrid brings the latest Maverick series IP65 technology together with an advanced optical system designed to optimize output from its Osram 420W 7700K source. This combination Beam/Spot/Wash fixture delivers stadium-scale output and CMY color mixing that produces the boldest reds, greens and blues while perfectly matching its fellow Mavericks in the rig. Its linear zoom smoothly delivers precise coverage in both projection modes, from tightly focused beams to crisp even spots, offering a zoom range of 0.9° to 23.7° in Beam mode and 1.1° to 36° in Spot mode. This hybrid houses a full arsenal of features: static and rotating gobo wheels, stackable independent prisms, animation wheel and a heavy frost to shift to a distinctive wash. Maverick Storm 1 Hybrid speaks DMX, ArtNet, sACN, RDM and W-DMX.

Features:

  • Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with an Osram 420W, 7700 K with 2,500 hour life expectancy lamp, CMY color mixing, an animation wheel, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing
  • Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact
  • Frost and beam flattening options for even light distribution
  • 9 rotating and 17 static gobos for massive visual effect
  • DMX and RDM protocol control
  • True 1 compatible power input
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
  • USB-C port for uploading software
  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost

Specifications:

  • Optical:
    • Light Source: Osram Sirius HRI 420 W lamp, 7700 K (Color Temp), 2,500 hours life expectancy
    • Color Temperature (at full): 6,995 K
    • Front lens diameters: 195.6 mm
    • Beam Angle: 1.3° to 17.7° (Spot mode)
    • Field Angle: 2.2° to 31.9° (Spot mode)
    • Cutoff Angle: 2.6° to 40.8° (Spot mode)
    • Beam Angle: .8° to 7.4° (Beam mode)
    • Field Angle: 1.5° to 19.9° (Beam mode)
    • Cutoff Angle: 1.9° to 25.6° (Beam mode)
    • Beam Angle: 3.6° to 16.6° (Wash mode)
    • Field Angle: 6.7° to 30.1° (Wash mode)
    • Cutoff Angle: 9.2° to 32.2° (Wash mode)
    • Zoom Range: 1.3° to 40.8° (Spot mode)
    • Zoom Range: .8° to 25.6° (Beam mode)
    • Zoom Range: 3.6° to 32.2° (Wash mode)
    • Lumens: 30,978
    • Illuminance (2.2°): 1,075,418 lux @ 5 m (Spot mode)
    • Illuminance (31.9°): 5,422 lux @ 5 m (Spot mode)
    • Illuminance (1.5°): 226,074 lux @ 15 m (Beam mode)
    • Illuminance (19.9°): 2,144 lux @ 15 m (Beam mode)
    • Illuminance (6.7°): 71,522 lux @ 5 m (Wash mode)
    • Illuminance (30.1°): 3,005 lux @ 5 m (Wash mode)
  • Dynamic Effects:
    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
    • Colors: 14 + white, split colors, continuous scroll at variable speeds
    • Colors: CMY flags
    • Gobos (1): 9 + open (1 empty slot + 8 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    • Gobos Static: 17 + open (17 metal), rotating, continuous scroll at variable speeds
    • Gobo Size (1): Gobo Wheel 1 (rotating): 16 mm (outside), 10 mm (image), 1.1 mm (max. thickness)
    • Animation Wheel: 1
    • Dimmer: Motorized
    • Shutter/Strobe: Motorized
    • Zoom: Motorized
    • Focus: Motorized
    • Frost: Motorized
    • Iris: Motorized
    • Prism (1): 6 Facets, motorized, rotating
    • Prism (2): 8 Facets, motorized, rotating
    • Move-in-Black: Yes
  • Construction / Physical:
    • Dimensions: 15.27 x 10.78 x 29.72 in (388 x 274 x 755 mm)
    • Weight: 64.4 lb (29.2 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
  • Connections:
    • Power Connection: Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
    • Cable Length (power): 5 ft (1.5 m)
    • Software Connection: Type-C USB
  • Control:
    • Control Protocol: Art-Net, sACN, RDM, DMX, WDMX
    • DMX Channels: 24 or 29
    • Art-Net/sACN Channels: 24 or 29
    • Modes/Personalities: 2 personalities (24, 29)
  • Electrical:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 660 W, 5.540 A @ 120 V, 60 Hz
    • Power and Current: 648 W, 3.124 A @ 208 V, 60 Hz
    • Power and Current: 647 W, 2.800 A @ 230 V, 50 Hz
  • Certifications / Qualifications:
    • CE, MET, FCC, CB, UKCA
    • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
