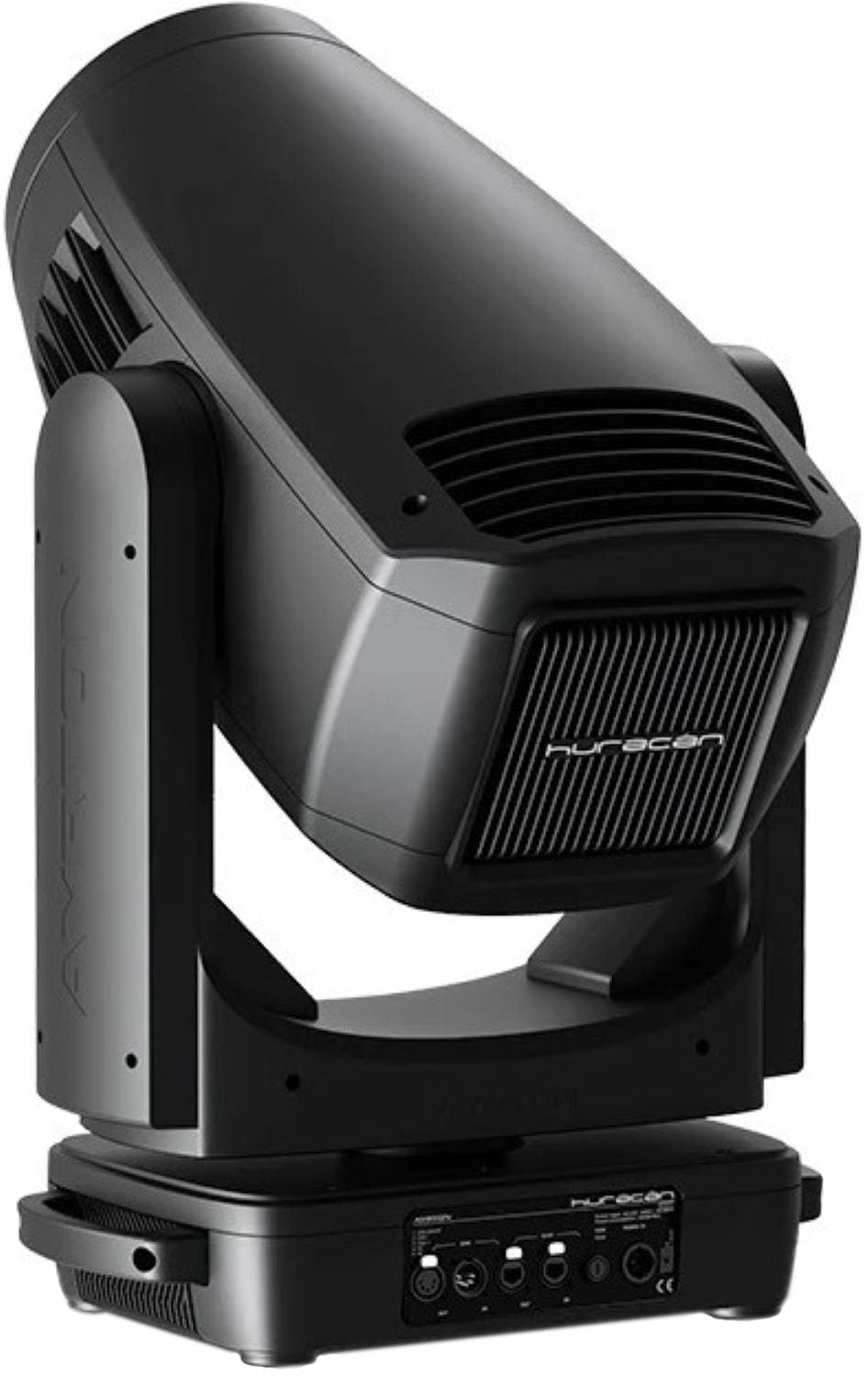

Ayrton Huracán Wash-TC AY011885 1000 Watt 52,000 Lumens LED Wash Moving Head Light - 6.2 to 75 Degree
For the latest wash-type luminaire of the HURACÁN family, AYRTON has designed an entirely new Fresnel lens with an optical structure specially developed for use with framing barndoors, also favouring use with geometric gobos or ovalisation lenses, without constraints. A subtle progressive diffusion system allows the diffusion level to be adapted according to the application and accessories or optical elements used. The Fresnel lens also significantly improves the colour mix and can obtain 10% more light than when using a conventional Fresnel lens F.O.S.™. The proprietary optical system of HURACÁN WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. This new luminaire adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement. T.C.S.™ (patent pending).
Features:
- Native CRI greater than 95
- Beam Aperture 6.2° to 75°
- Front Lens 210 mm
Specifications:
- Optics:
- 13-element 12:1 zoom high-resolution optic system
- Beam aperture: 6.2° (half peak) to 75° (one-tenth peak)
- Fast motorised linear zoom
- Tempered anti-reflective coated lenses
- 210 mm Fresnel frontal lens
- Light Source:
- Huracán Wash TC:
- 49,000-lumen white light engine
- Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)
- Colour temperature output: 6000 K
- CRI: greater than 95
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
- Movement:
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt automatic repositioning
- Moving head range: 540° (pan), 260° (tilt)
- Colors:
- Complex CMY colour mixing system capable of generating billions colours (patent pending)
- Variable CTB colour temperature correction
- Variable CTO colour temperature correction
- Variable CTP colour temperature correction
- Fixed colour wheel with six complementary colours
- GOBOS:
- Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open position
- Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
- Adjustable-speed rotating cassette and gobo in both directions
- Gobo diameter: 30.0 mm
- Image diameter: 25.0 mm
- Gobo thickness: 1.1 mm
- Framing System:
- 4 individually positionable barndoors on a 100% surface area in all positions
- Rotation of barndoor module: +/- 60°
- Iris Diaphragm:
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- Frost:
- 20% to 100% variable linear frost
- Effects:
- CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
- Indexable de-focusable rotating beam-shaping optic
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- Clicking jog wheel to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- XLR 5 pin male and female connectors for DMX connection
- etherCON RJ45 IN / OUT connectors for ArtNet™ connection
- powerCON TRUE1 male connector for power connection
- Control:
- DMX 512 protocol, through DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet™ & sACN protocol through Ethernet cable
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 36 to 58 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 1,470 W maximum
- Cooling System:
- Advanced liquid cooling system
- Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user’s modes with a new Super Silent Mode
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of aluminium and steel metal plates
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating Parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45° C (113° F)
- Minimum permitted ambient temperature (Ta min): -10° C (14° F)
- Minimum usage distance: 3.0 m (9.84 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B: 2018
- Size:
- Product: 494 x 788 x 294 mm (l x h x d)
- Flight-case foam : 715 x 555 x 630 mm (l x h x d)
- Weight:
- Product: 42.5 kg
