Sennheiser XSW 1-908 Wireless Gooseneck Brass Mic
A powerful performance. Go for XS Wireless 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS Wireless 1 Brass Set is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.
Features: - Compact bodypack transmitter and powerful gooseneck microphone optimized for brass instruments
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Specifications: - System (XSW 1-908)
- Modulation: wideband FM
- Frequency ranges: A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz, C: 766-790 MHz
- D: 794-806 MHz,
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Switching bandwidth: up to 24 MHz
- Frequencies: 8 frequency banks, each with up to 10 factory-preset channels
- Signal-to-noise ratio: ? 103 dBA
- THD: ? 0.9%
- Temperature range: operation: 0°C to +40°C; storage: –20°C to +70°C
- Transmitter synchronization: 2.4 GHz, low power OQPSK (only active during synchronization)
-

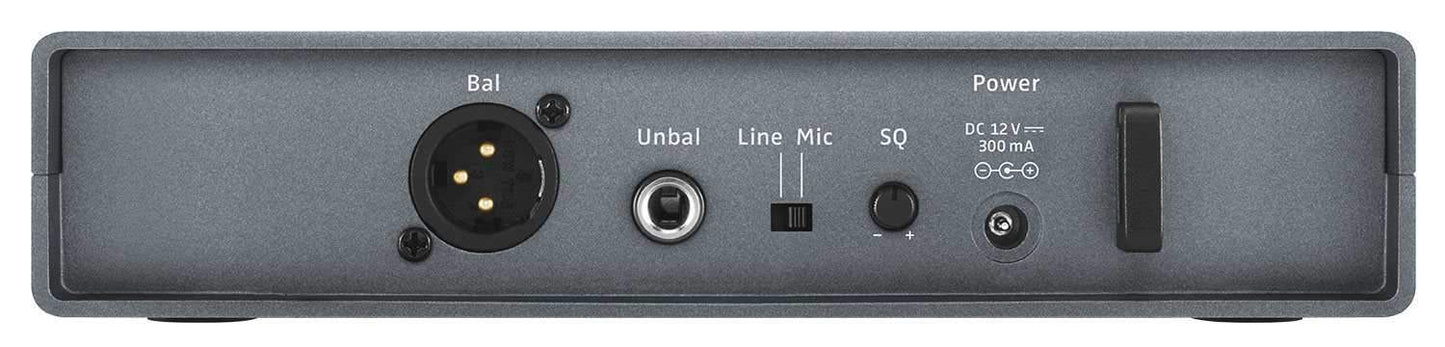

Receiver (EM-XSW 1)
- Receiver principle: double superheterodyne
- Diversity principle: antenna switching diversity via internal antennas
- Sensitivity (at peak deviation): < 3 ?V at 52 dB(A)rms S/N
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Maximum AF output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Audio adjustment range: 45 dB, adjustable in 5 dB steps
- Power supply: 12V DC nom. / 300 mA
- Squelch: adjustable from 3 dB?V to 28 dB?V (combined with pilot tone)
- Line/mic level: 20 dB, switchable
- Housing material: rugged ABS housing
- Dimensions: 200 mm x 42 mm x 127 mm (WxHxD)
- Weight: 340g
- Bodypack transmitter (SK-XSW)
- RF output power: 10 mW
- AF frequency response: line: 50-16,000 Hz; mic: 50-16,000 Hz
- Audio input: 3.5 mm jack socket
- Maximum input voltage (mic/line) at 3% THD: typ. 1.V rms Mic / typ. 2.6 V rms line at -30 dB gain
- Power supply: 2 AA batteries, 1.5V
- Operating time: approximately 10 hours
- Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Housing material: rugged ABS housing
- Dimensions: 71 mm x 96 mm x 28 mm (WxHxD)
- Weight: 95g
- Gooseneck microphone (e 908 T)
- Transducer principle: condenser, prepolarized
- Sensitivity: 0.6 mV/Pa
- Pick-up pattern: cardioid
- Maximum SPL: 147 dB
- What's includes: 2 AA batteries, 1 NT 12-5 CW power supply, 1 EM-XSW 1 receiver, 1 SK-XSW bodypack transmitter, 1 e908T instrument microphone, includes clamp and windshield
