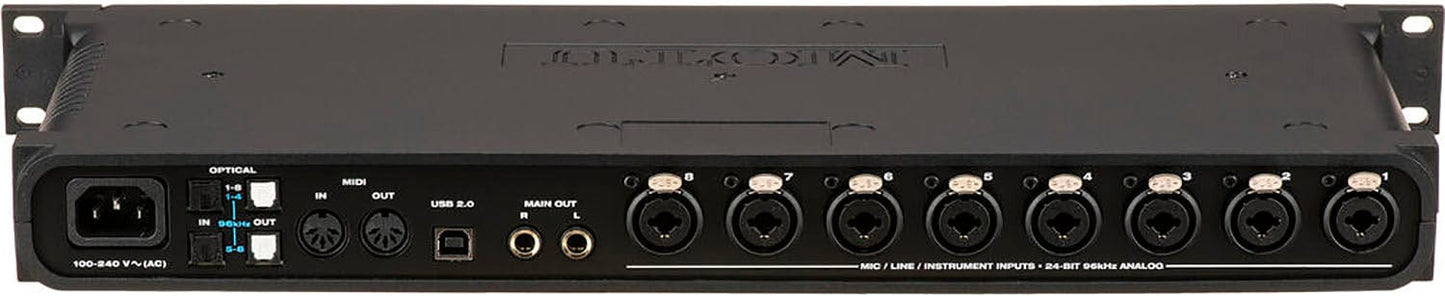

MOTU 8Pre USB 16x12 USB-2 Audio Interface and Preamp Expansion

Turn your computer into a powerful digital audio workstation with eight mic inputs. Or add eight high-quality mic/instrument inputs to your current system.

The 8pre audio interface delivers everything you need to turn your computer into a powerful 24-bit, 96kHz digital audio workstation. The 8pre provides eight microphone/instrument preamps with pristine 96kHz analog recording and playback, combined with 8 channels of ADAT optical digital I/O. Expand your system by connecting additional 8pres or other MOTU audio interfaces.

Features:

• FireWire audio interface for Mac and Windows - provides 16 inputs with 8 mic preamps and 12 outputs including separate phone and main outs for all the basic I/O you need for a powerful desktop studio.
• Eight XLR/TRS "combo jack" mic inputs - connect up to eight mics, or mix and match mics with guitars, synths, drum machines and other analog input signals.
• Flexible analog inputs - each provides a crystal-clear preamp (for both the XLR and TRS input), 24-bit 96 kHz converters, individually switchable 48-volt phantom power, 20 dB pad and front-panel trim controls. Mix and match condenser and dynamic microphones as your needs require.
• Eight channels of ADAT optical I/O - provides two sets of optical connectors to provide eight channels of optical digital I/O even at high samples rates (88.2 or 96 kHz).
• Operates as an optical expander - connect the 8pre to any ADAT optical compatible device (another audio interface, a digital mixer, etc.) to add 8 additional mic inputs seamlessly integrated into the mixing environment of the host device.
• Discrete ins/outs - there's no channel sharing in the 8pre; the mic inputs, ADAT optical I/O, headphone out and main outs are all handled as separate channels.
• CueMix DSPT near-zero monitoring system.
• Multiple CueMix DSP mixes - create different monitor mixes for the main outs and headphones. Add send/return loops for outboard gear with no latency.
• Front-panel metering - five-segment meters for all analog inputs, plus status lights for clock and interface/expander mode.
• Sample-accurate MIDI - connect a MIDI controller and/or sound module with no separate interface needed. MIDI I/O is sample-accurate with supporting software.
• Expandable - add additional 8pre, UltraLite, 828, 828mkII, 896, 896HD or Traveler FireWire interfaces for additional I/O. Or connect the 8pre optically to any audio interface or mixer that supports ADAT optical I/O.
• Separate TRS main outs and front-panel headphone jack, each with independent volume control.
• SMPTE time code sync via any analog input.
• SMPTE time code generation to any analog output.
• Includes native 32- and 64-bit drivers for Mac OS X and Windows 8/7/Vista/XP, including ASIO, WDM, Wave, Core Audio, and Core MIDI. Supports all popular Mac and Windows audio software.
• 100% compatible with all host-based effects processing in today's popular audio programs.
• Includes AudioDesk full-featured sample-accurate workstation software for Mac with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync.
• Two FireWire ports - daisy-chain up to four units on a single FireWire bus without a hub.
• Plug-and-play operation with your Mac or PC via FireWire.
• Chassis dimensions, excluding rack ears and front and back panel knobs and connectors: 19 x 7 x 1.75 inches (48.26 x 17.78 x 4.45 cm). Knobs and connectors extend up to 0.5 inch (1.27 cm) from front and back panels, adding 1 inch (2.54 cm) to depth. With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high
