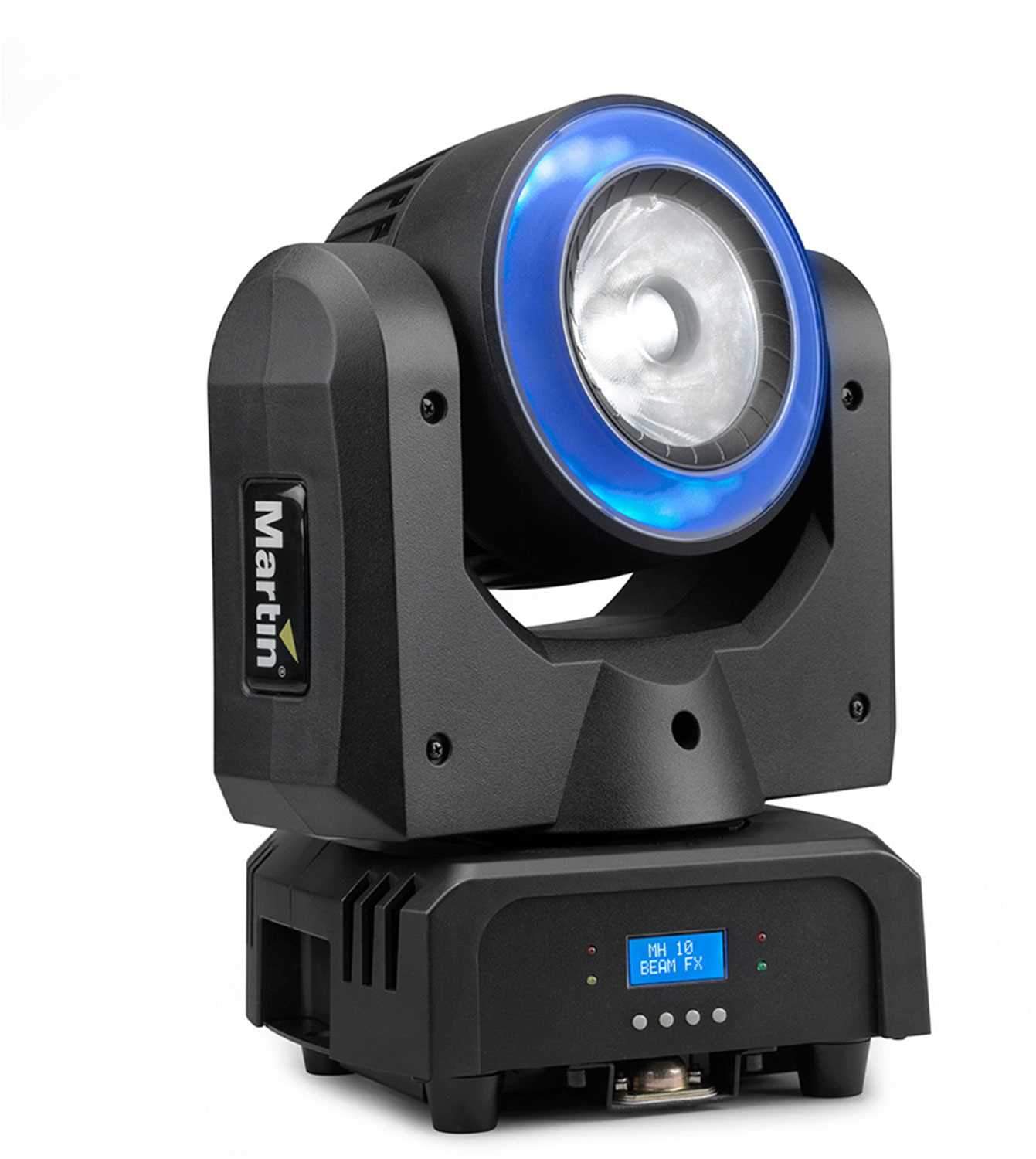

Martin Rush MH 10 Beam FX 60W RGBW LED Moving Head
The Martin RUSH MH 10 Beam FX is a compact 60W RGBW LED Beam moving head fixture with an independent, built-in LED ring. With 24 individually-controllable RGB LEDs surrounding a central beam lens, the RUSH MH 10 FX offers a variety of exciting visual effect possibilities at an affordable price.
The Martin RUSH MH 10 Beam FX uses a collimator lens design, creating a striking, high-intensity look on stage. The OSRAM OSTAR LEDs on the MH 10 Beam offers excellent color mixing with Martin MAC Aura, RUSH MH 6, and RUSH Par 2 fixtures. Independent control of the ring LEDs also allows the fixture to easily blend into on-stage LED video elements.
Other features include continuous pan and tilt and lightweight build, providing a number of interesting rigging possibilities and high-speed looks. The Martin RUSH MH 10 is a perfect fit for nightlife, houses of worship, cruise ships and small-to-medium touring and rental customers.
- Collimator lens for a super-tight 4.5° high intensity beam
- LED ring with 24 independently-controllable LEDs
- Continuous pan/tilt for unrestricted movement and high-speed looks
Features
- Bright 60 W Osram RGBW LED engine
- Collimator lens with tight 4.5° beam angle
- Ambient glow ring with 24 individually pixel-controllable RGB LEDs
- Electronic dimming and Strobe
- Temperature-controlled fan cooling
- Unlimited Pan & Tilt rotating
- 3 + 5 pin XLR DMX connection
- Neutrik TRUE 1 in and thru socket
- Compact size—L: 275 x W: 188 x H: 325 mm / L: 10.8 x W: 7.4 x H: 12.8in
- Low weight—7.5 kg/16.5 lbs.
Technical Specifications
- Physical
- Length: 275 mm (10.8 in.)
- Width: 188 mm (7.4 in.)
- Height: 325 mm (12.8 in.)
- Weight: 7.5 kg (16.5 lbs.)
- Dynamic Effects
- Beam color mixing: RGBW
- Ring color mixing: RGB, grouped or individual control of 24 cells
- Virtual color wheel: 33 color presets, virtual color wheel rotation effects, random color (independent in beam and ring)
- Pre-programmed effects: FX (effect macros) in ring with variable speed and direction of sequences, synchronization and chases across multiple fixtures
- Dimming: 0-100%, coarse and fine control (independent in beam and ring)
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring)
- Pan: 540°
- Tilt: 270°
- Pan and tilt rotation effect: Constant, variable speed and direction
- Control and Programming
- Control options: DMX, RDM, stand-alone, master/slave
- DMX channels: 24 or 93
- Stand-alone trigger options: Music trig, auto trig
- Setting and addressing: Control panel with backlit LCD display
- Pan and tilt speed: Adjustable via onboard control panel and DMX
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- Optics
- Beam effect light source: 60 W RGBW Osram LE RTDUW S2WP
- Ring effect light source: 24 x 0.25 W RGB LEDs
- Cutoff beam angle: 4.4°
- Minimum LED lifetime: 20 000 hours to >70% luminous output
- Construction
- Color: Black
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
- Installation
- Mounting points: Two quarter-turn omega brackets for rigging clamps
- Location: Indoor use only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to illuminated surfaces: 200 mm (8 in.)
- Minimum distance to combustible materials: 100 mm (4 in.)
- Minimum clearance around fans and air vents: 100 mm (4 in.)
- Connections
- AC power in, thru: Neutrik TRUE1
- DMX data in, thru: 3-pin and 5-pin locking XLR
