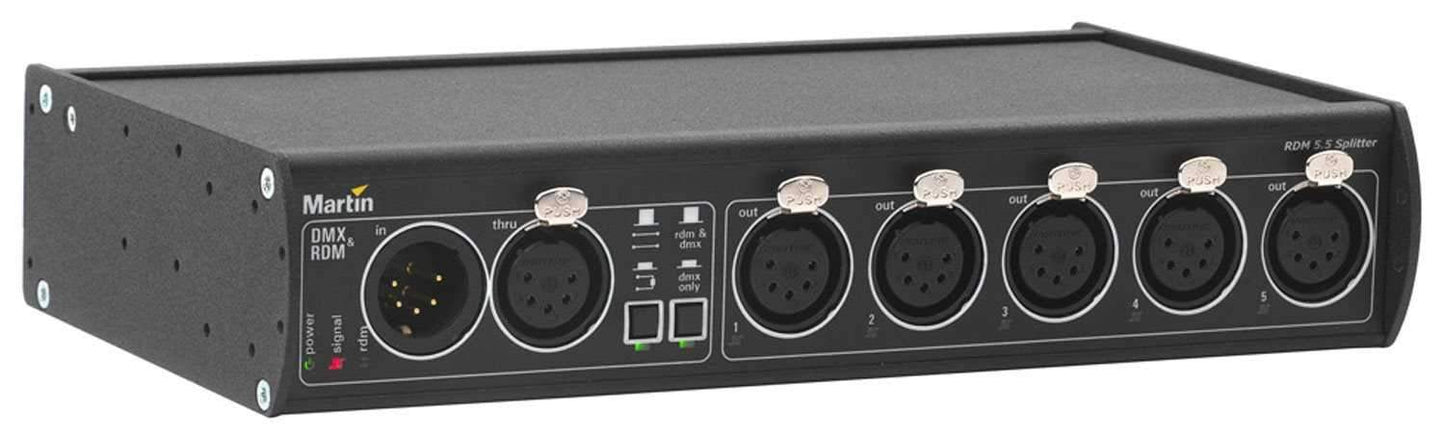

Martin RDM 5.5 5-Pin 5-Channel DMX Splitter
The Martin RDM 5.5 Splitter is the perfect companion to any controller or DMX/RDM device. The main purpose of the Martin 5.5 Splitter is to maintain proper data over long or several runs of DMX signal. The Splitter boosts the weak DMX signal to its original output level before it becomes too low to be read by DMX devices. Disruption of DMX is often caused by bad cables or bad connections. The Martin RDM 5.5 Splitter will help to rectify the signal.
Features:- DMX Splitter/Booster
- Opto-isolated DMX Output ports
- DMX loop through port with built-in termination
- 5-pin XLR Input and Outputs
- RDM E1.20 compliant
- Optimized for Martin fixture firmware upload
- Universal power supply
- PowerCon connectors in/out for easy daisy-chaining
- Lightweight yet robust construction
- Rack, truss and wall mountable
Physical
- Depth: 125 mm
- Width: 220 mm
- Height: 45 mm
- Weight: 0.9 kg
- DMX: ANSI E1.11 (USITT DMX 512-A)
- RDM: ANSI E1.20
- Electrical standard: EIA-485
- Recommended cable type: STP (Shielded Twisted Pair)
- Recommended cable gauge: 22 or 24 AWG
- Housing: Aluminum
- Finish: Electrostatic powder-coated
- Data input: 5-pin XLR male
- Data throughput (not amplified or branched): 5-pin XLR female
- Data outputs (optically isolated and amplified): 5 x 5-pin XLR female
- AC power input: Neutrik PowerCon
- AC power throughput: Neutrik PowerCon
- AC power: 100-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch-mode
- Typical total power consumption: 4 W
- * Power consumption figures are typical, not maximum. Allow for +/-10% variation.
- EU safety: EN 60950-1
- EU EMC: EN 55022, EN 55024, EN 55103-1, EN 55103-2
- US safety: UL 508
- US EMC: FCC Part 15 Class A
- Canadian safety: CAN/CSA C22.2 No. 14
- Canadian EMC: ICES-003 Class A
- Australia/NZ: C-TICK N4241
- 4 x screws to join two devices for rack mounting
- 2 x L-brackets + 8 x screws for 19-inch rack mounting
- Two Splitters (1U) for surface mounting
- Neutrik PowerCon NAC3FCA male input connector
