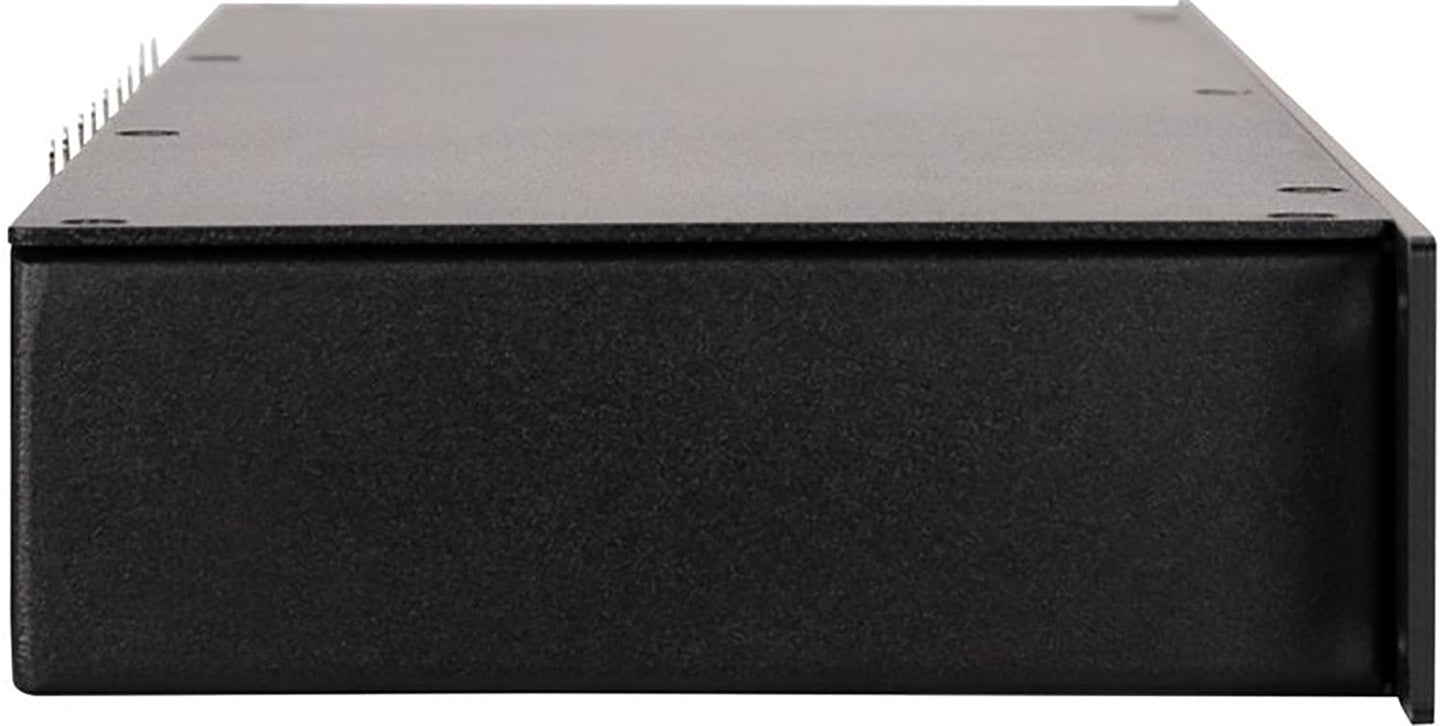

ADJ American DJ NET-8 Rackmount 4-Port DMX over Ethernet Node with Wired Digital Network
ADJ’s NET 8 is a versatile 4-port DMX over Ethernet node that can be mounted in a 19-inch rack case. It is compatible with DMX-512, RDM, Artnet and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance.
Features:
- ArtNet / sACN /DMX, 4 Port Node
- Line Voltage or Power over Ethernet (PoE) powered
- DHCP or Static IP Address
- 1.7”LCD Display
- Configurable from unit menu or web browser
Specifications:
- Protocols:
- DMX512
- RDM
- Artnet
- sACN
- Connections:
- 2x Indoor RJ45 Input & Output
- 8x 5pin XLR Input / Output
- Dimensions & Weight:
- Length: 5.09" (129.3mm)
- Width: 19" (482.5mm)
- Height: 1.73" (43.8mm)
- Weight: 4.76lbs. (2.16kg)
- Power:
- AC Input 95-240V,50/60Hz
- PoE 802.3af
- AC Power: 15W
- PoE Power: 15W
- Power Consumption: 5.7W @ 120V and 5.9W @ 230V
- Power Input Protection: Fuse, T1.25A/250V (5.2x20mm)
- Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Humidity:
- Storage Temperature: 77°F (25°C)
- Certifications & IP Rating:
- CE
- cETLus (Pending)
- FCC
- IP20
- Protocols:
- DMX512
- RDM
- Artnet
- sACN
- Connections:
- 2x Indoor RJ45 Input & Output
- 8x 5pin XLR Input / Output
- Dimensions & Weight:
- Length: 5.09" (129.3mm)
- Width: 19" (482.5mm)
- Height: 1.73" (43.8mm)
- Weight: 4.76lbs. (2.16kg)
- Power:
- AC Input 95-240V,50/60Hz
- PoE 802.3af
- AC Power: 15W
- PoE Power: 15W
- Power Consumption: 5.7W @ 120V and 5.9W @ 230V
- Power Input Protection: Fuse, T1.25A/250V (5.2x20mm)
- Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Humidity:
- Storage Temperature: 77°F (25°C)
- Certifications & IP Rating:
- CE
- cETLus (Pending)
- FCC
- IP20
