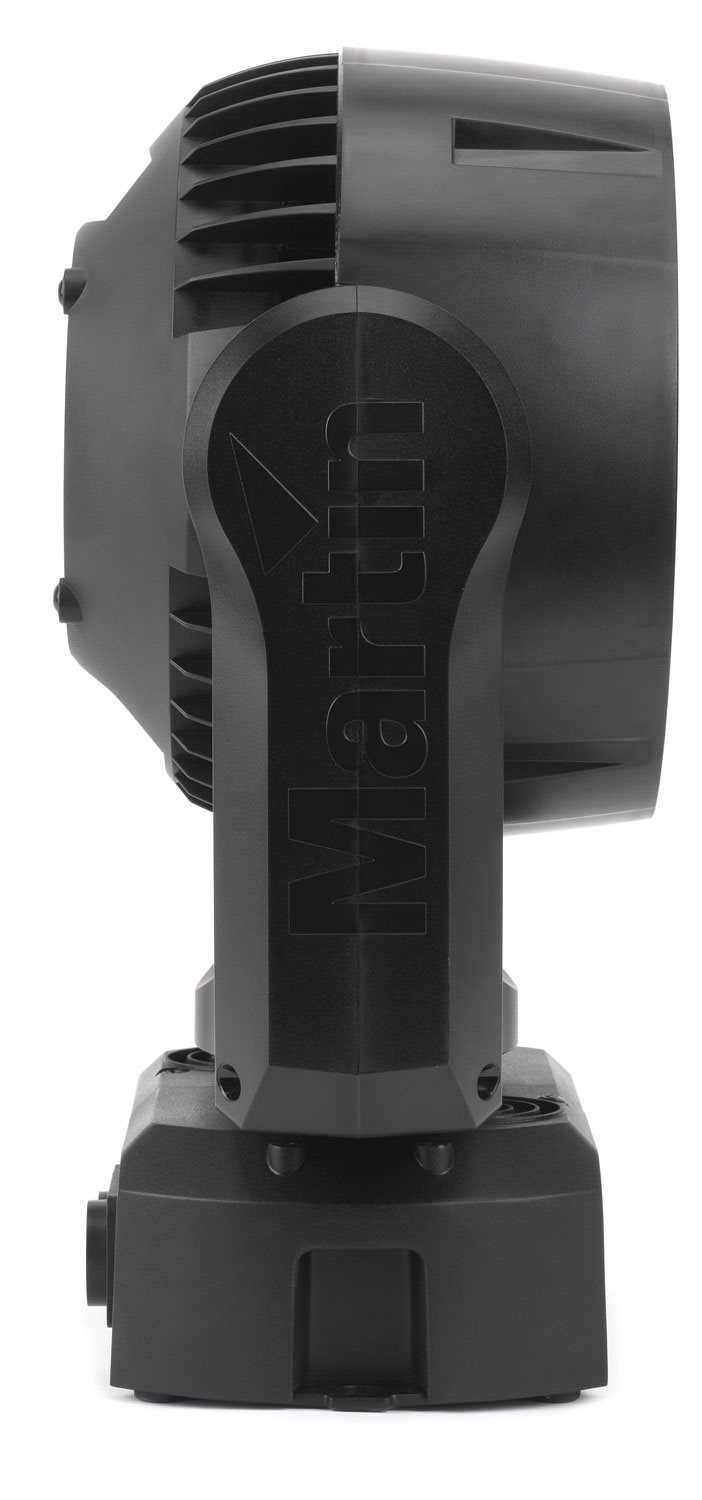

Martin MAC Aura XB RGBW Moving Head LED Wash Light

More Martin Professional products

Write a review Q&A SKU: MAC-AURA-XB Solotech ID#: 65374
1 of 5
Available options
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

Martin MAC Aura XB RGBW Moving Head LED Wash Light

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effects are also part of the package.

Features:
  • Super-bright single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixingEye-candy Aura Effects
  • Uniform shadesBuilt-in FX engine10 to 60° uniform zoom
  • 6000 Lumens outputRapid movement
  • Compact, low weight design (6.5 kg)High efficiency, low power consumption, long lifetime
Dynamic Effects
  • Beam color mixing: RGBW
  • Aura (secondary lens array illumination) color mixing: RGB
  • Beam color temperature control: CTO, variable 10 000 - 2500 K
  • Beam and aura electronic 'color wheel' effect:33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
  • Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
  • Pre-programmed effects: Range of independent and synchronized Beam and Aura FX, two combinable
  • Electronic dimming: Independent beam and aura, four dimming curve options
  • Zoom: 10° - 60° (one-tenth peak angle)
  • Pan: 540°
  • Tilt: 232°
  • Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming
  • Control options: Independent or synchronized Beam and Aura control
  • Control system: DMX, RDM
  • Control resolution: 8-bit, with 16-bit control of pan & tilt
  • DMX channels: 14/25
  • Setting and addressing: Control panel with backlit graphic display
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: RS-485
  • Firmware update: Via DMX with Martin USB Duo DMX Interface Box
Optics and Photometric Data
  • Light source: 15 W RGBW array system
  • LED refresh rate: Beam 1200 Hz, Aura 4395 Hz
  • Minimum LED lifetime: 50 000 hours (to >70% luminous output)
  • Total luminous output (wide, one-tenth peak): 6.0 Klm
  • Total luminous output (narrow, one-tenth peak): 4.3 Klm
  • Video compatibility: Designed for use with HD/high-speed video cameras
