Description

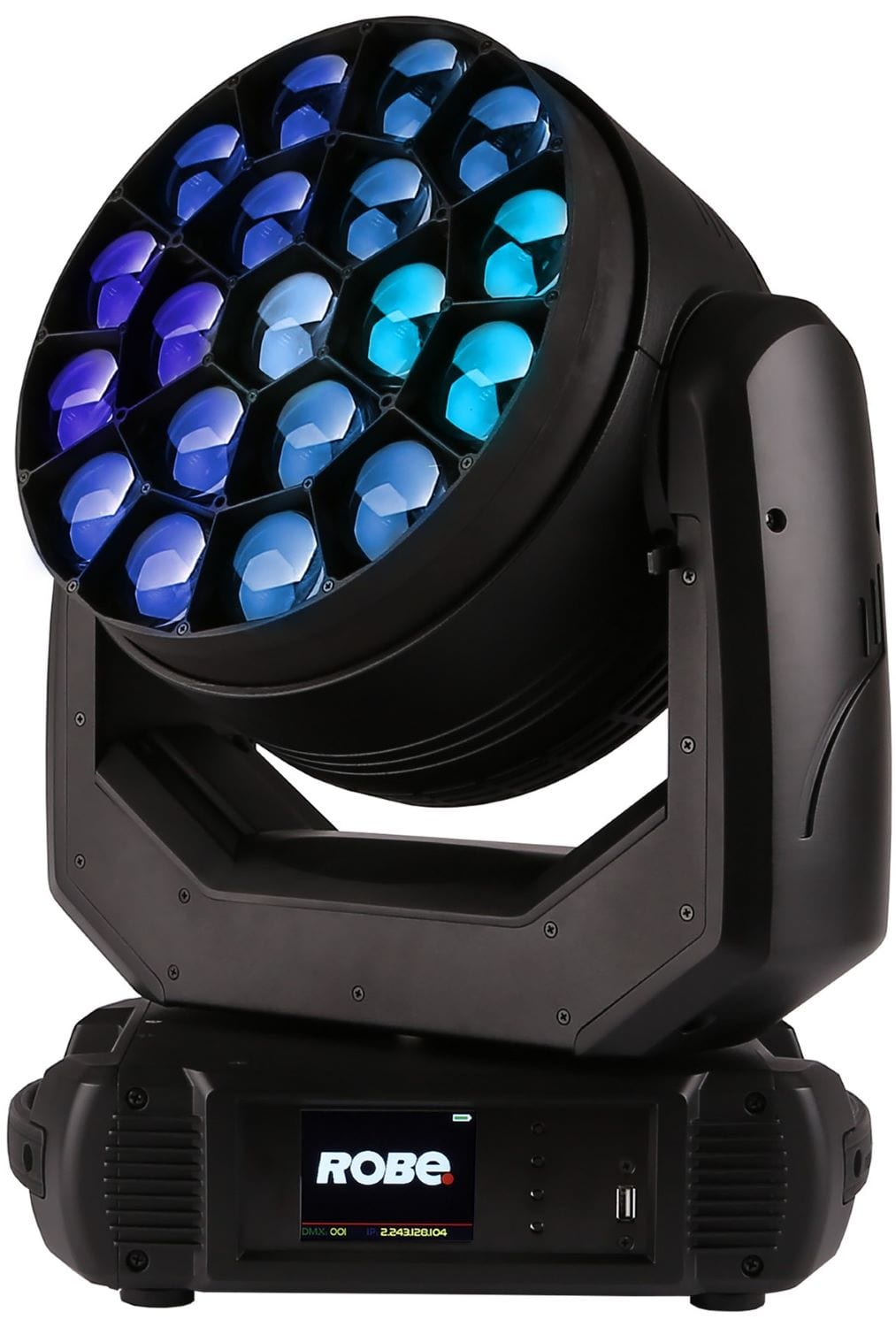

Robe Spiider 1x 60-Watt RGBW and 18x 40-Watt RGBW LED WashBeam Moving Head Light

The Robe Spiider® – The super bright LED WashBeam luminaire has truly set the benchmark in performance! Using 18 x 40 Watt and 1 x 60 Watt LEDs, combined with a highly efficient 12,5:1 zoom optical system, ranging from tight 4° Beam to wide 50° Wash, makes the Spiider® the leader in its class. Beautiful convergence of hard edge in-air effects, punchy beams and smooth, homogenized rich colour washes are all encapsulated in the unique Spiider®!

Features:

  • Light source - 1x 60W RGBW and 18 x 40W RGBW LED multichips
  • Light output - 13.700 lm, 50.100 lx @ 5m
  • Zoom range - 4° - 50°
  • Effects - pixel control, MCFE™ - Multi-Coloured Flower Effects (patented), virtual colour wheel, tungsten lamp effect, preprogrammed pixel effects

Specifications:

  • Source:
    • Light source type: 1x 60W RGBW and 18x 40W RGBW LED multichips
    • LED life expectancy: min. 50.000 hours
    • Typical lumen maintenance: L70/B50 @ 50.000 hours
  • Optical system:
    • Robe’s proprietary optical design
    • High - efficiency zoom optical system, ratio 12,5:1
    • Zoom range: 4° - 50°
    • Fixture total lumen output:
      • 13.700 lm (integrating sphere)
      • 11.000 lm (goniophotometer)
    • Illuminance: 50.100 lx @ 5 m
    • Innovative lens coating technology (Patent pending)
  • Dynamic Effects and Features:
    • Colour mixing mode RGBW or CMY
    • Individual control of each RGBW pixel
    • Variable CTO: 2.700K - 8.000K
    • Virtual Colour Wheel: with 66 preset swatches
    • Tungsten lamp effect at whites: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
    • Colour rainbow effect with variable speed
    • Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
    • MCFE™ - Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patented)
    • Strobe effect: variable speed (max. 20 flashes per second)
    • Pre-programmed random strobe & pulse effects
    • High resolution electronic dimming: 0 - 100%
    • L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
  • Control and programming:
    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation
    • memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
    • Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net
    • Wireless CRMX™ technology from Lumen Radio - on request
    • DMX Protocol modes: 10
    • Control channels: 49, 27, 33, 90, 27, 47, 91, 110, 104, 123
    • Pan/Tilt resolution: 16 bit
    • R,G,B,W colour mixing: 8 or 16 bit (internal 18 bit)
    • Zoom: 8 bit
    • Dimmer: 8 or 16 bit (internal 18 bit)
  • Movement:
    • Pan movement: 540°
    • Tilt movement: 220°
    • Movement control: Standard and Speed
    • Controllable speed of Pan/Tilt movement
    • EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
    • Automatic Pan/Tilt position correction
  • Thermal specification:
    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum surface temperature: 75 °C (167 °F)
    • Minimal operating temperature: - 5°C (23 °F)
  • Electrical specification and connections:
    • Power supply: Electronic auto-ranging
    • Input voltage range: 100-240 V, 50/60 Hz
    • Power consumption: max. 600 W
    • Power in connector: Neutric powerCON TRUE1
    • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
    • Ethernet port in/out: RJ45
    • Embedded Ethernet switch 10/100 Mbps: 1 x in / 1 x out
  • Approvals:
    • CE Compliant
    • cETLus Compliant
  • Mechanical specification:
    • Height: 477 mm (18.7”)
    • Width: 390 mm (15.3”)
    • Depth: 252 mm (9.9”)
    • Weight: 13.3kg (29.2 lbs)
    • Ingress protection rating: IP20
  • Rigging:
    • Mounting positions: Horizontally or vertically
    • Universal operating position
    • Mounting points: 2 pairs of 1/4-turn locking points
    • 2x Omega adaptors with 1/4-turn quick locks
    • Safety cable attachment point
    • Tilt transport lock
