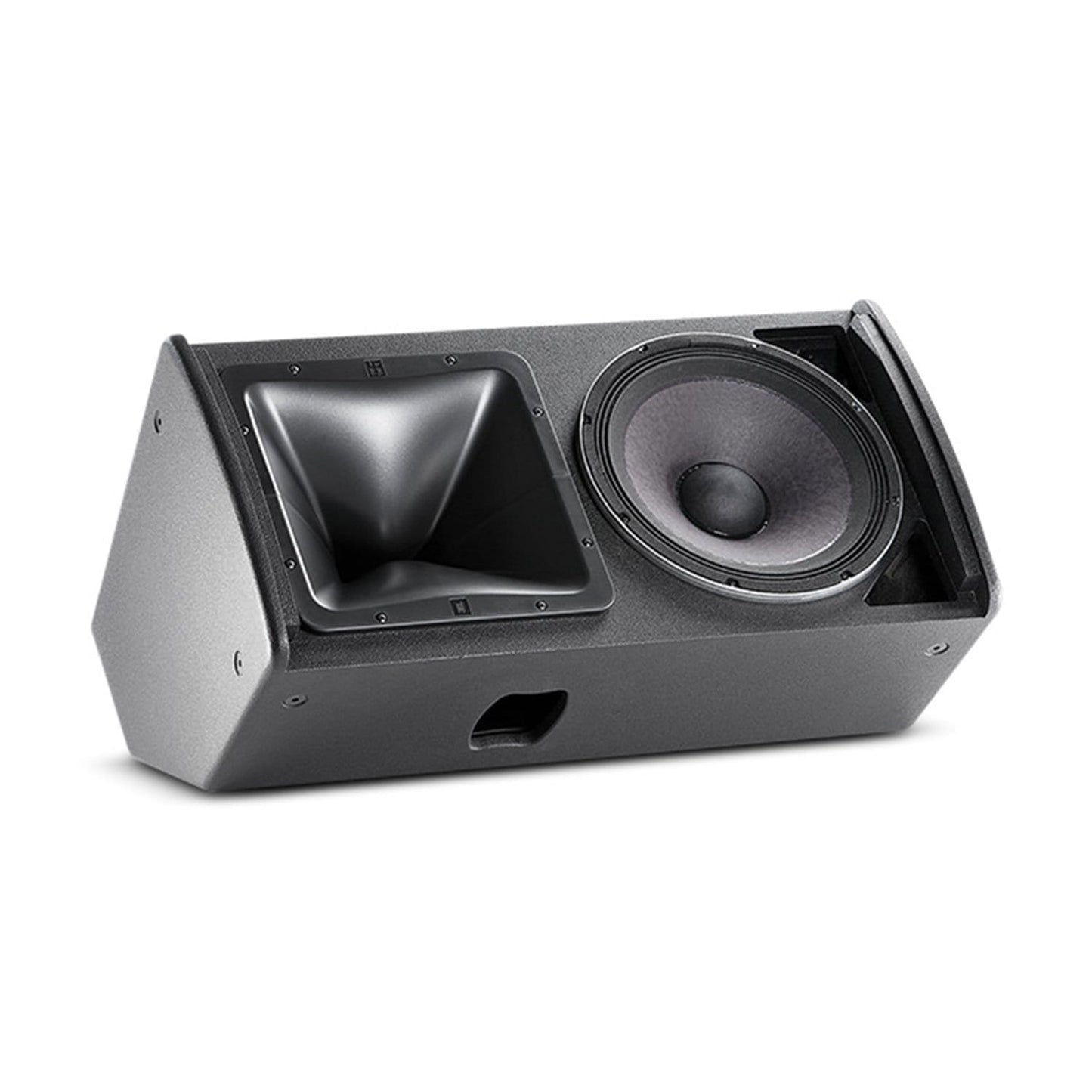

JBL MD52 12-inch 2-Way Full-Range Loudspeaker

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. 2-Way Full-Range Loudspeaker System with 1 x 12" LF, the MD52 is also designed for the mobile DJ requiring a light weight, high fidelity portable system. The multiangle enclosure features a 45° angle on one side for use as a floor monitor in the horizontal orientation and is fitted handles, a pole mount cup on the bottom panel. MD52 is a medium-power 90° x 50°, 12" 2-way fully passive full-range system utilizing a 262H Differential Drive transducers and a 2408H-1 compression driver with a 1.5" diaphragm for smooth low distortion high-frequency response. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.

• JBL 262H 2" dual voice coil – dual magnetic gap Differential Drive® woofers
• JBL 2408H-1 1.5" diaphragm, 1" exit compression driver
• 90° x 50° rotatable PT™ Progressive Transition waveguide
• Pole mount socket for portable applications

Specifications:

• Frequency Range (-10 dB)
• 39 Hz – 20 kHz
• Power Rating
• 550 W (2200 W peak) 2 hrs
• Coverage Pattern
• 90° x 50°, rotatable waveguide
• Frequency Response (±3 dB)
• 53 Hz – 19 kHz
• High Frequency Driver
• JBL 2408H-1, 25.4 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
• Enclosure
• Trapezoidal with 7.5° and 45° side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Dimensions (H x W x D)
• 711.2 x 371.4 x 400.6 mm (28 x 14.6 x 15.8 in)
• Net Weight
• 20.6 kg (45.5 lb)
