Description

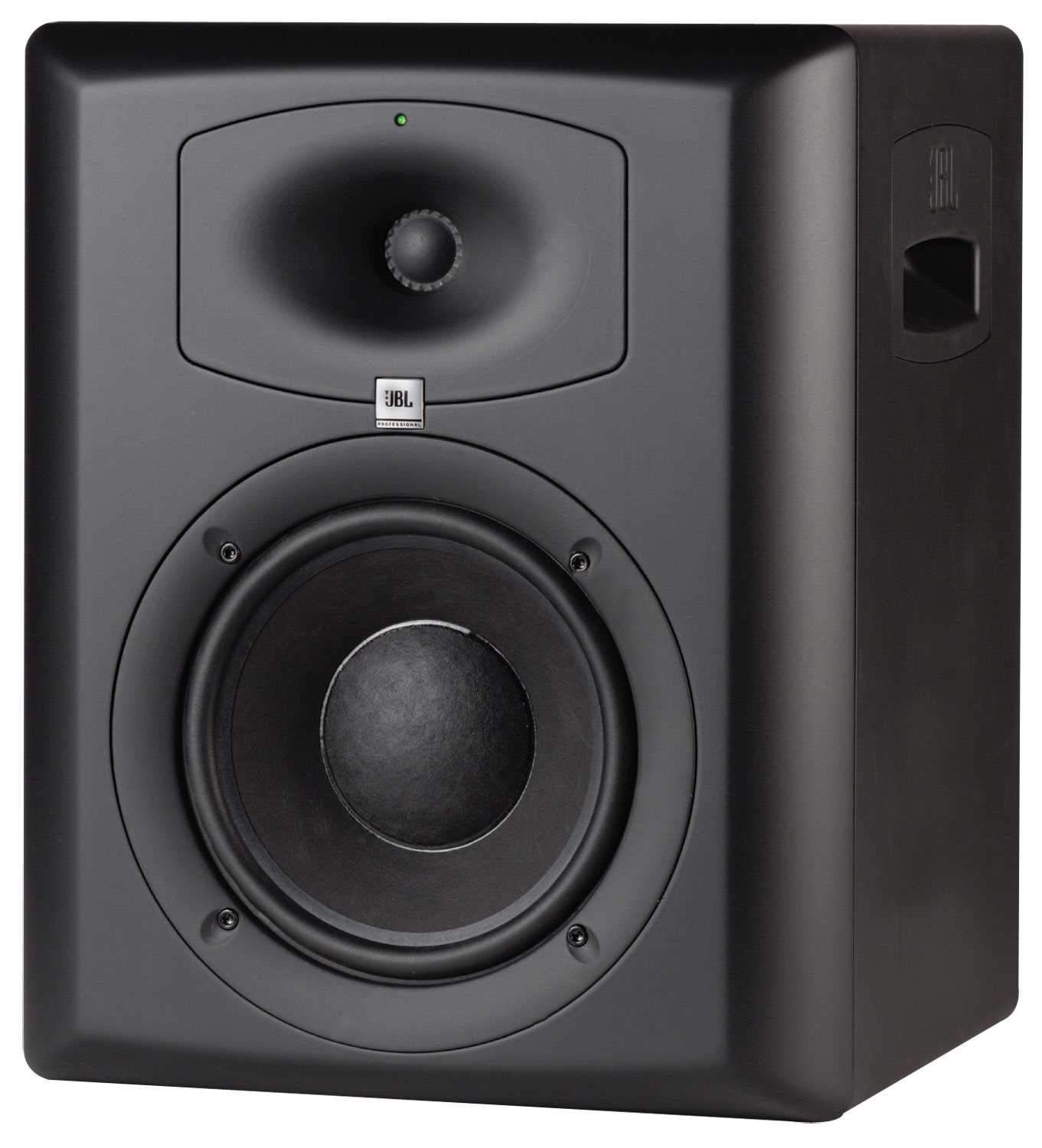

JBL LSR6328P Linear Spatial Reference Bi-amplified Studio Monitor (Each)

The LSR6328P is the choice for stereo and multi-channel music and post audio applications where accuracy and high SPL are required. THX® pm3 Approved. METAlliance Certified.


Features:
  • Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position.
  • RMC Room Mode Correction provides electronic control of room modes. User measurement and calibration kit available.
  • Differential Drive technology with dynamic braking for extended low frequency response and minimal power compression.
  • Integrated bi-amplification with factory calibrated sensitivities.
  • Titanium composite high frequency transducer with Elliptical Oblate Spheroidal waveguide for precise pattern control.
  • Magnetically shielded high frequency transducer minimizes interference when used in close proximity to video monitors.
  • High-density baffle for low enclosure resonance.
  • Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
  • Reinforced enclosure and convenient mounting points for mounted installation.
  • Integral handles facilitate ease of positioning.

Specifications:
  • Frequency Response: 50 Hz - 20 kHz (+1, -1.5 dB)
  • Enclosure Resonance Frequency: 38 Hz
  • Low Frequency Extension: User controls set to default
  • -3 dB: 6 Hz
  • 10 dB: 36 Hz
  • Low-High Frequency Crossover: 1.7 kHz 6th-order acoustic Linkwitz-Riley
  • Distortion, 96 dB SPL, 1m: N/A
  • Mid-High Frequency (120 Hz - 20 kHz): N/A
  • 2nd Harmonic: <0.6%
  • 3rd Harmonic: <1%
  • Maximum SPL (80 Hz - 20 kHz): >108 dB SPL / 1m
  • Maximum Peak SPL (80 Hz - 20 kHz): >111 dB SPL / 1m
  • Signal Input: Neutrik "Combi" XLR-1/4-in tip-ring-sleeve balanced or unbalanced positive voltage applied to XLR pin 2 (1/4" tip) produces outward woofer motion
  • Calibrated Input Sensitivity, XLR & 1/4": N/A
  • +4 dBu / +8 dBu: 96 dB SPL / 1 m
  • -10 dBV: 96 dB SPL / 1 m
  • AC Input Voltage: 100 / 240 VAC
  • AC Input Connector: IEC
  • Long-Term Maximum System Power: 220 W (IEC265-5)
  • Self-Generated Noise Level:

Note: Speakers are sold individually.
