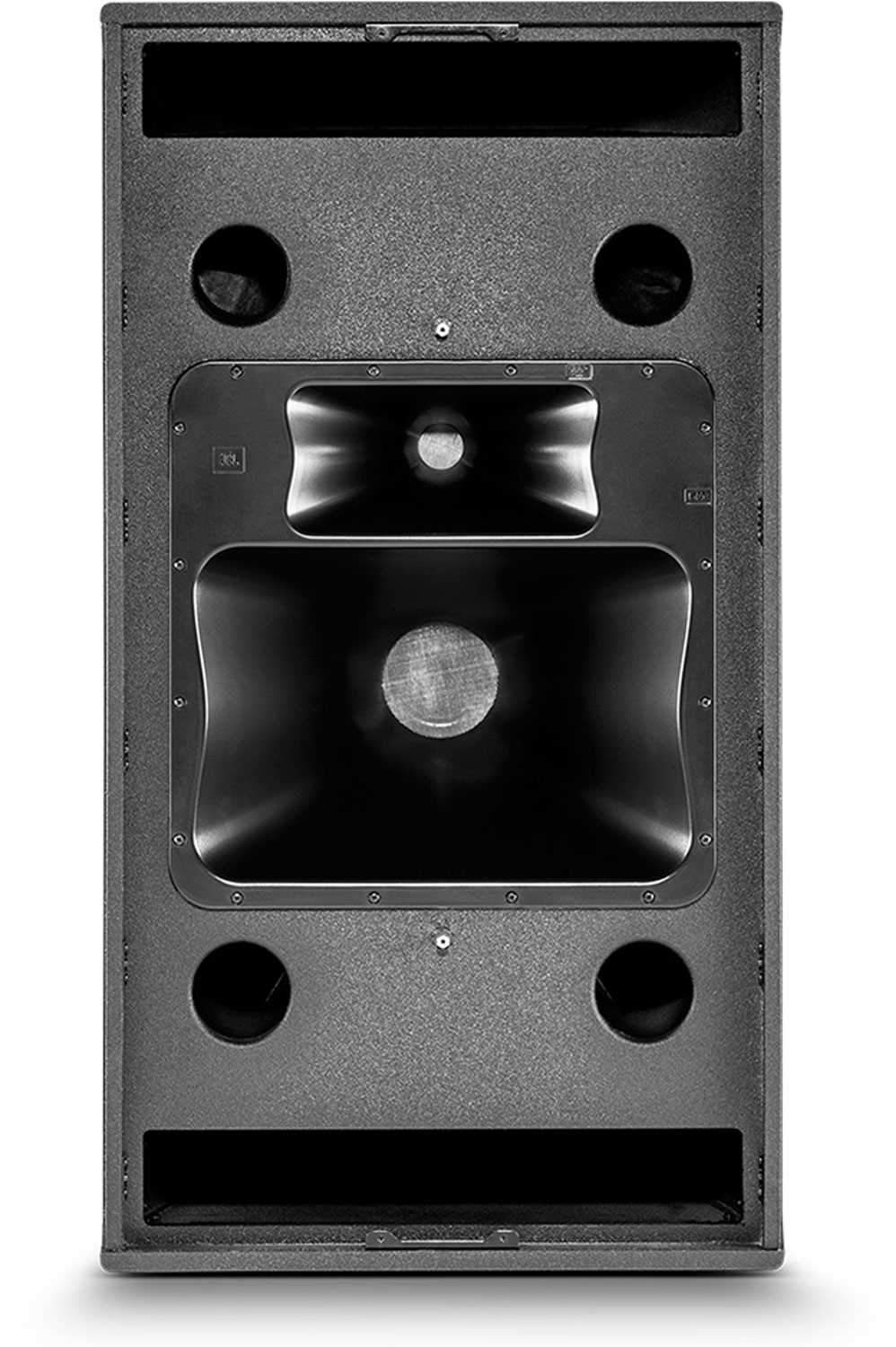

JBL CSX-F35/95 3-Way High Output Speaker

Designed to address a wide range of applications where high-impact, high-fidelity audio needs to be delivered with the form factor of a trapezoidal full-range system, F35 can be the go-to choice for customers needing high-power side-fills, mains speakers, or a V5-compliant high-performance compliment to a larger VTX system. This system has an exceptional power-to-weight ratio thanks to its lightweight, Differential Drive 15" and 8" transducers, and it benefits from proven JBL technologies, including a multi-band Progressive Transition Waveguide and the high-performance D2 high frequency driver. Able to ordered in 60x40 or 90x50 coverage patterns, and stackable or suspendable with integrated M10 mounting points, the high-performance F35 is truly a flexible design that delivers uncompromising performance.

Features:

• High output 3-way enclosure featuring the D2 Dual Diaphragm Dual Voice Coil high frequency compression driver in a light-weight trapezoidal enclosure
• Differential Drive™, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ MF and LF cone transducers
• Multiple M10 attachment points facilitate a variety of suspension options
• V5 Processing for use with Crown Audio I-Tech HD series amplifiers

Specifications:

• Frequency Range (-10 dB): 39 Hz - 18 kHz
• Coverage Pattern (-6dB): 90° Horizontal x 50°Vertical
• System Input Power Rating1: LF: 2 x 800 W Continuous (IEC / 100 hour) MF: 270 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour)
• Maximum Peak Output2: 143dB (Preset: -F35/95 FR)
• System Processing: Crown Audio I-Tech HD Series Crown Audio I-Tech 4x3500HD
• System Impedance: LF: 2 x 8 ohms MF: 8 ohms HF: 8 ohms
• Low Frequency Transducer: 2 x 2265H, 254 mm (15 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
• Mid Frequency Transducer: 1 x 2169H, 203 mm (8 in) dia., 76mm (3 in) Dual Voice Coil, Neodymium Differential Drive®, Direct Cooled™
• High Frequency Transducer: 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
• Construction: 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
• Grille: Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
• Input Connectors: Neutrik® Speakon® NL-8 (2x): LF1: 1± | LF2: 2± | MF: 3± | HF: 4±
• Dimensions (H x W x D): 1051.5 mm x 568.9 mm x 528.3 mm (41.4 in x 22.4 in x 20.8 in)
• Net Weight: 52.6 kg (116 lbs)
