Description

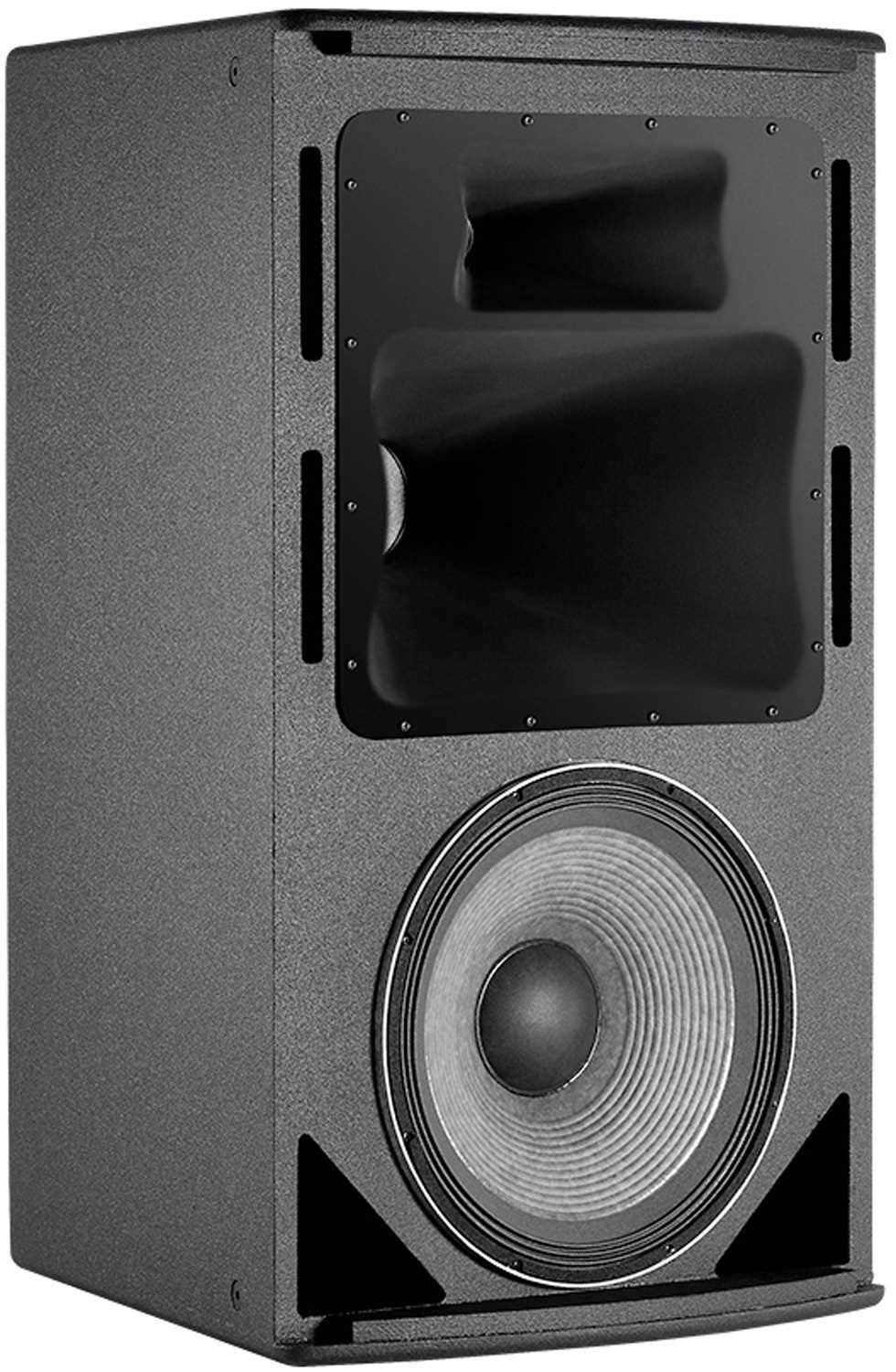

JBL AM7315/95 15-Inch High Power 3-Way Full-Range 90 x 50 Degree Rotatable Loudspeaker

High Power 3-Way Loudspeaker

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features:

  • 2265H Differential Drive® Low-Frequency Driver
  • CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
  • 2432H High-Frequency Compression Driver
  • PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
  • Bi-Amp/Tri-Amp Switchable.

Applications:

  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues

Specifications:

  • Frequency Range (-10 dB): 38 Hz – 20 kHz
  • Frequency Response (±3 dB): 45 Hz – 18 kHz
  • Coverage Pattern: 90° x 50°, rotatable waveguide
  • Directivity Index (DI): 13 dB
  • Crossover Modes: Tri-amp/Bi-amp switchable
  • Crossover Frequencies: 300 Hz and 2.3 kHz
  • Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hrs 750 W (3000 W peak), 100 hrs MF: 350 W (1400 W peak), 2 hrs HF: 100 W (400 W peak), 2 hrs
  • Long-Term System Power Rating (IEC): LF: 600 W (2400 W peak), 100 hrs MF/HF: 200 W (800 W peak), 100 hrs
  • Maximum SPL: LF: 127 dB-SPL cont avg (133 dB peak) Tri-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Bi-amp mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
  • System Sensitivity of Passive Sections (1W @ 1m): MF/HF Section in Bi-amp mode: 108 dB SPL
  • Nominal Impedance System Sensitivity: 8 ohms
  • Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)
  • Sensitivity (1W @ 1m) (Low Frequency): 97 dB SPL
  • Midrange Driver: JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
  • Sensitivity (1W @ 1m) (Midrange): 108 dB SPL
  • High Frequency Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
  • Sensitivity (1W @ 1m) (High Frequency): 115 dB SPL
  • Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
  • Suspension Attachment: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
  • Finish: Black DuraFlex™ finish. White available upon request.
  • Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Input Connector: NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
  • Dimensions (H x W x D in vertical cabinet orientation): 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
  • Net Weight: 45.8 kg (101 lb)
  • Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
