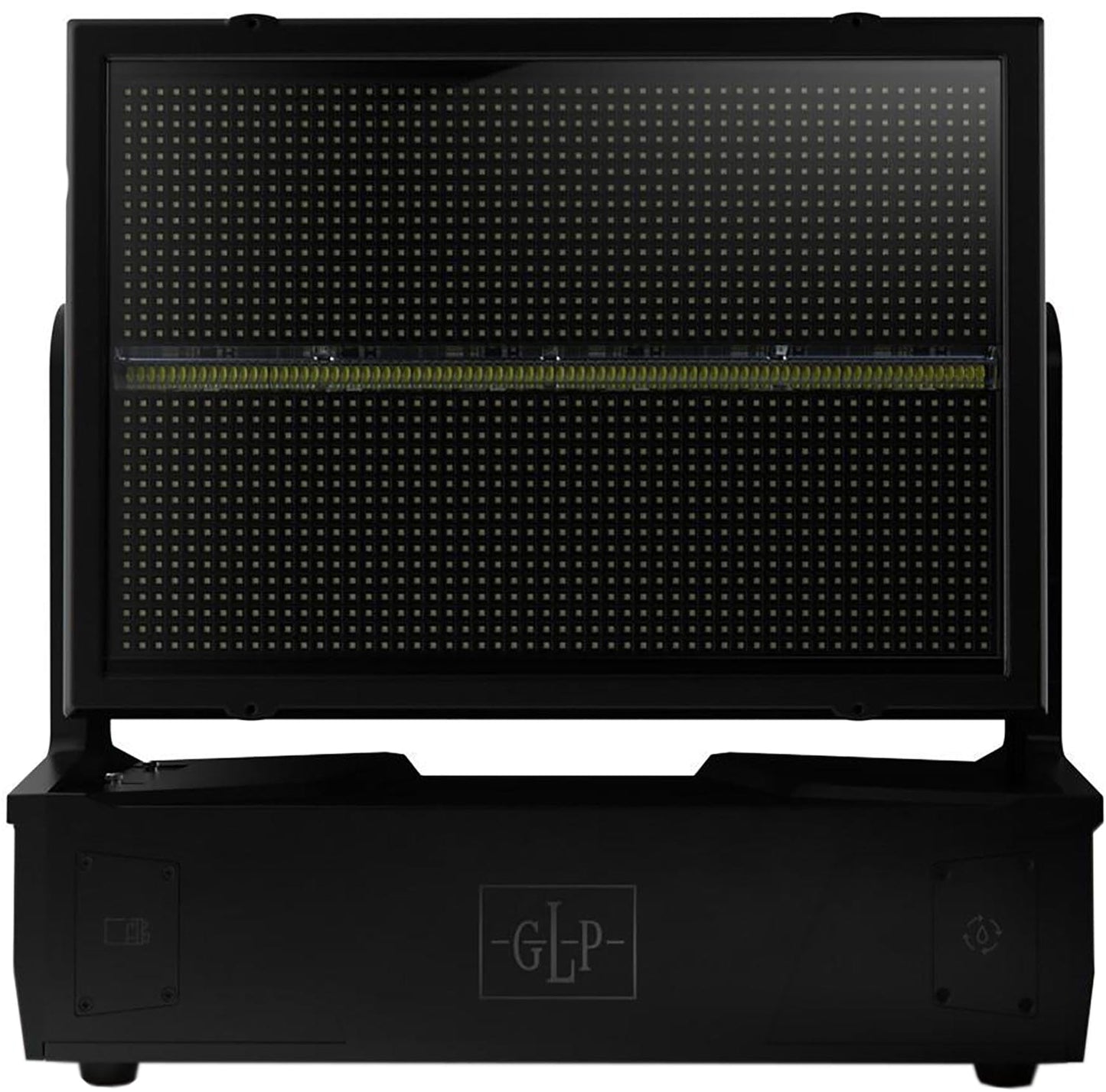

GLP 7678 JDC2 Strobe IP Fixture
GLP JDC2 IP is the new innovative hybrid strobe with more visibility, increased output and advanced creativity. The new integrated beam line is equipped with 84 high-performance LEDs which are highly efficient at 10 W each and produce a flash that is more powerful than ever. The optimized, extremely steep flash ramps ensure an even more realistic and intense strobe impression. With 12 individually controllable segments, the beam line offers extended intensity flash effects and more than 100 static and dynamic strobe patterns.
With 1,025 cm² (159 in²) luminous surface, not only does the visual solid angle increase, but the visibility of the surface is perceived as larger and up to 25% brighter. The saturated colors and exceptional brightness of the 1,728 LEDs provide powerful diffuse lighting. This allows stages and spaces to be completely immersed in color. An impressive, rich color environment is created, especially when combined with haze. The specialized black LED masking ensures a black front appearance, while eliminating reflection from other light sources.
Specifications:
- Light Source:
- Type: White Strobe LED | RGB LED
- Light Source Count:
- Beam: 84x 10 W White Strobe LEDs | Plate: 1,728x RGB LEDs
- Optical System:
- Output: >30% more output than JDC1
- Output Lens: 2x 377 x 111 mm | 2x 14.8 x 4.3 in
- Effects:
- Dimmer: 0 – 100%; 16 bit
- Tilt Movement Angle: 184°, 16 bit
- Control:
- Control Modes:
- M1: Dual Strobe (CH24 / 21 Fixture) | M2: Segment 1-1 (CH46 / 11 Fixture) | M3: Segment 12-12 (CH91 / 5 Fixture) | M4: Segment 12-24 (CH127 / 4 Fixture; DEFAULT) | M5: JDC1 Spix Patch (CH68 / 7 Fixture)
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net (in development)
- sACN (in development)
- iQ.Mesh
- optional: Lumenradio CRMX @ FPO
- Setting and addressing:
- control panel with backlit graphic display
- 4 Button Menu Navigation
- DMX
- RDM
- iQ.Mesh
- Software Update: iQ.Mesh
- High-Res Channels:
- Dimming
- Tilt
- Performance Modes:
- fast
- normal (balanced)
- smooth
- Dimming Curves:
- linear
- soft
- Fan Modes:
- regulated
- high
- medium
- low
- minimum
- Others:
- Stand Alone 1 captured Scene
- Beam Pattern Effect Engine
- Plate DigiFX Engine
- Beam/Plate Intensity Flash Effects
- Connectors:
- Signal connection:
- XLR 5-Pin
- In/Out
- Gigabit etherCON In/Out (failsafe)
- Power input:
- Neutrik powerCON TRUE1
- In/Out
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- max. power (@230V): 1,500 W
- Thermal Specifications:
- Cooling: combined convection and forced air
- Temperature range, operating: -10 °C / 40 °F to 45 °C / 115 °F
- Mounting Options:
- Mounting:
- 2 pair of 1/4-turn locks
- 2 eyelets for safety cable
- Orientation: any
- Location:
- Indoor permanent
- Outdoor temporary
- Construction:
- Housing Color: Black
- Housing Material:
- high-impact flame-retardant thermoplastic
- Aluminum
- steel metal plates
- Protection Rating: IP 65
- Construction Features:
- Tilt-Lock-System
- Alignment System
- Holder for optional accessories (filter frame, barndoor)
- Head Handles
- Shipping:
- Tourpack: 3-way
- Dimensions & Weight:
- Height: 354 mm / 13.94 in
- Height (head vertical): 452 mm / 17.8 in
- Width (across yoke): 444 mm / 17.48 in
- Length: 230 mm / 17.48 in
- Weight: 23.5 kg / 51.8 lbs
