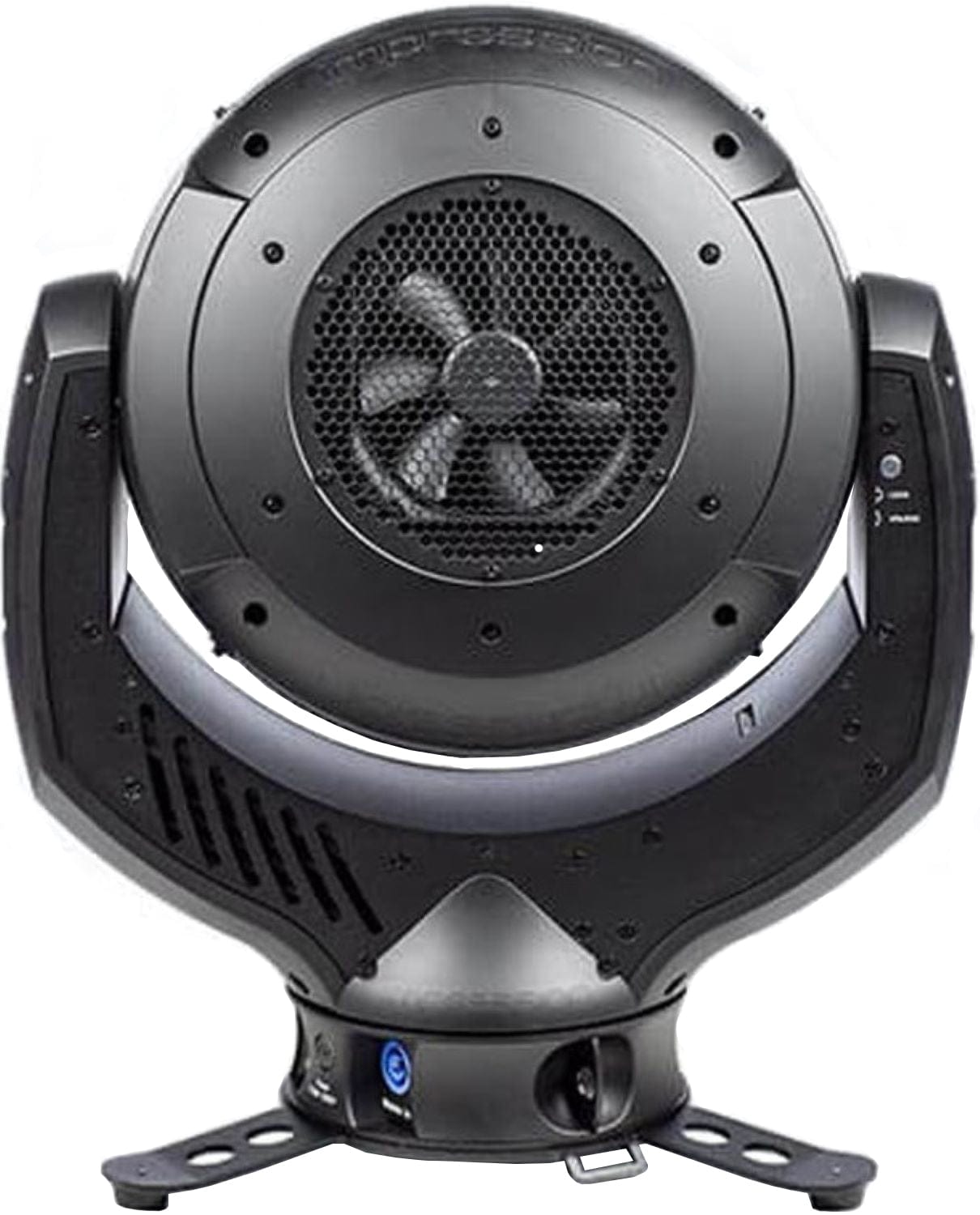

GLP 7640 Impression X4 L Moving Head Light
The impression X4 L offers a full package of a pixel mapping LED luminaire with front beam rotation, a fast 7:1 zoom range, wide color pallet and high output from its 37 LED sources which are each rated at 15 Watts and feature RGBW color technology.
The impression X4 L also offers smooth full range dimming, electronic strobe functionality, variable color temperature correction, 16 bit pan and tilt control, all in the sleek baseless design that has become a part of the GLP impression product range.
Specifications:
- LED Light Source:
- LED Type: Osram Ostar
- Lifetime (Hours): 50,000 h
- LED Count: 37
- LED Colors: RGBW
- Optical System:
- Min. Zoom: 7°
- Max. Zoom: 50°
- Beamshape: motorized
- Effects:
- Dimmer / Shutter: 0 – 100% electronic
- Shutter: max. 25 Hz
- CTC (Color Temperature Control):
- electronic
- 2,500 – 10,000 K
- Internal Effects:
- LED Macro Effects
- Color presets
- Pan: 608°
- Tilt: 243°
- Movement:
- Resolution: 8 – 16 Bit
- Position Feedback: yes
- Control:
- Control Modes:
- Normal
- Compressed
- HighRes
- Pixel-Mapping
- Protocol
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Display:
- illuminated graphic LCD
- self charging buffer battery
- backlit buttons
- RDM: bidirectional communication
- Cooling:
- temperature controlled
- overheating protection
- Connectors:
- Signal connection:
- XLR 5-Pin
- In/Out
- Power input: Neutrik PowerCON
- Operating Condtions:
- Mains voltage: 100 – 240 VAC / 50 – 60 Hz
- Power (Watt @ 230V): 900
- Fuse: 20mm T 12A
- Maximum ambient temperature: 45°C / 115°F
- Operating Position: any
- EEC: E
- EEI: 1.269
- Ec (kWh/1,000h): 755
- Power factor:
- > 0.986 / 220 V AC
- > 0.999 / 110 V AC
- Total heat dissipation (calculated, +/-10%): 3,070 BTU/h
- Mounting Options:
- Safety wire attachment: 2 eyelets
- Standing: Removable baseplate with brackets for ratchet belt
- Hanging (horizontally): adjustable bar for sideways truss installation (optional)
- Hanging (vertically): M10 socket for half coupler, or other clamp
- Housing Colors:
- Standard colors: black
- Optional: special colors on request
- Shipping:
- Single fixture: cardboard
- Tourpack:
- 4-way
- Flight Case
- Dimensions & Weight:
- Height (head vertical): 530 mm / 20.9 in
- Width (across yoke): 185 mm / 7.3 in
- Length: 430 mm / 16,9 in
- Weight: 17 kg / 37.5 lbs
- LED Type: Osram Ostar
- Lifetime (Hours): 50,000 h
- LED Count: 37
- LED Colors: RGBW
- Min. Zoom: 7°
- Max. Zoom: 50°
- Beamshape: motorized
- Dimmer / Shutter: 0 – 100% electronic
- Shutter: max. 25 Hz
- CTC (Color Temperature Control):
- electronic
- 2,500 – 10,000 K
- Internal Effects:
- LED Macro Effects
- Color presets
- Pan: 608°
- Tilt: 243°
- Resolution: 8 – 16 Bit
- Position Feedback: yes
- Control Modes:
- Normal
- Compressed
- HighRes
- Pixel-Mapping
- Protocol
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Display:
- illuminated graphic LCD
- self charging buffer battery
- backlit buttons
- RDM: bidirectional communication
- Cooling:
- temperature controlled
- overheating protection
- Signal connection:
- XLR 5-Pin
- In/Out
- Power input: Neutrik PowerCON
- Mains voltage: 100 – 240 VAC / 50 – 60 Hz
- Power (Watt @ 230V): 900
- Fuse: 20mm T 12A
- Maximum ambient temperature: 45°C / 115°F
- Operating Position: any
- EEC: E
- EEI: 1.269
- Ec (kWh/1,000h): 755
- Power factor:
- > 0.986 / 220 V AC
- > 0.999 / 110 V AC
- Total heat dissipation (calculated, +/-10%): 3,070 BTU/h
- Safety wire attachment: 2 eyelets
- Standing: Removable baseplate with brackets for ratchet belt
- Hanging (horizontally): adjustable bar for sideways truss installation (optional)
- Hanging (vertically): M10 socket for half coupler, or other clamp
- Standard colors: black
- Optional: special colors on request
- Single fixture: cardboard
- Tourpack:
- 4-way
- Flight Case
- Height (head vertical): 530 mm / 20.9 in
- Width (across yoke): 185 mm / 7.3 in
- Length: 430 mm / 16,9 in
- Weight: 17 kg / 37.5 lbs
