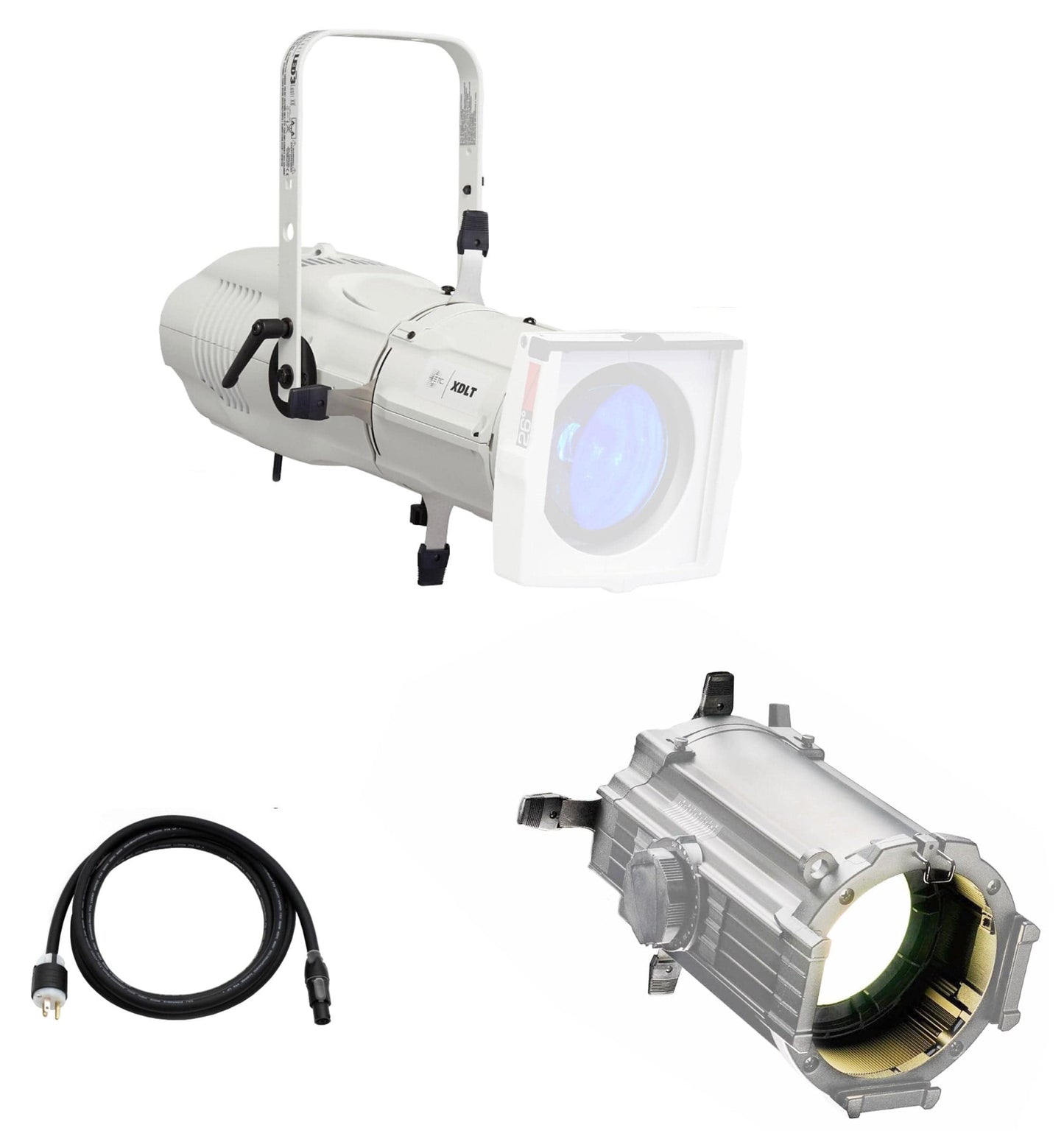

ETC Source Four LED Series 3 Light Engine Ellipsoidal with Daylight HDR 25-to-50-Degree Lens (White)
The ETC Source Four LED Series 3 Light Engine Ellipsoidal with Daylight HDR 25-to-50-Degree Lens (White)is a professional lighting fixture consisting of the following components:
ETC S4LEDS3D-1 Source Four LED Series 3, Light Engine Only, Daylight HDR, White
Over a decade of research comes together in the Source Four LED Series 3 fixture. ETC brings the eight-color Lustr X8 array and the tunable white light Daylight HDR array to the professional stage with this fixture. The deep red LEDs in both arrays reveal richer skin tones, bring a deeper dimension to your scenery, and add warmth to sunsets and firelight. Additional features include wireless DMX/RDM through City Theatrical's Multiverse technology, contactless programming and control using NFC and ETC's Set Light app, and an intuitive user interface featuring a color picker and action-responsive backlit encoders.
Features:
- Deep Red: Over a decade of research brings the addition of the deep red LED to Series 3. This LED expands the gamut for richer colors, healthier skin tones, and a higher quality white light.
- Wireless Control: Activate wireless DMX functionality with City Theatrical's Multiverse transmitter and configure your fixtures via NFC using the Set Light app.
- XDLT Lens Tubes: Increase fixture brightness and improve pattern projection clarity and contrast when used with XDLT lens tubes.
Specifications:
- Source:
- LED details: 90 Lumileds LUXEON C and CZ
- Max lumens: 10,889
- Lumens per watt: 35
- L70 rating (hours to 70% output): >54,000
- Color:
- Colors used: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
- Color temperature range: 1900–10450 K
- Calibrated array: Yes
- Red shift: Yes (selectable)
- Optical:
- Beam angle range: Swappable lens tubes between 5°–90°
- Gate size: 80 mm
- Aperture size: 6.25-17.5 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
- Control:
- Input method: 5-Pin XLR, Multiverse wireless and NFC
- Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
- Modes (footprint): 5 modes (1–12 channels)
- RDM configuration: Yes
- UI type: Full color display
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes
- Onboard effects: No
- FixtureLink: Yes
- Electrical:
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: AC via Neutrik powerCON TRUE1 TOP
- Inrush: 40 A at 120 V (First half-cycle), 80 A at 230 V (First half-cycle)
- Fixtures per circuit: 5 (link up to 4 via Power Thru connector) Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
- Wattage typical: 307 W at 120 V, 305 W at 230 V
- Current draw: 2.6 A at 120 V, 1.35 A at 230 V
- Thermal:
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (yes)
- Droop compensation: Yes
- dB range: 34 dBA average at 1 m
- BTUs/hour: 1,047
- Physical:
- Materials: Die-cast, all metal housing
- Color : White
- Mounting options: Yoke, cyc floor stand (sold separately)
- IP rating: IP20
- Weight (With barrel): 8.87 kg (19.55 lb)
- Weight (Without barrel): 6.76 kg (14.90 lb)
ETC 42550LT-1 25-to-50-Degree Zoom Lens Tube, White
- Source:
- LED details: 90 Lumileds LUXEON C and CZ
- Max lumens: 10,889
- Lumens per watt: 35
- L70 rating (hours to 70% output): >54,000
- Color:
- Colors used: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
- Color temperature range: 1900–10450 K
- Calibrated array: Yes
- Red shift: Yes (selectable)
- Optical:
- Beam angle range: Swappable lens tubes between 5°–90°
- Gate size: 80 mm
- Aperture size: 6.25-17.5 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
- Control:
- Input method: 5-Pin XLR, Multiverse wireless and NFC
- Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
- Modes (footprint): 5 modes (1–12 channels)
- RDM configuration: Yes
- UI type: Full color display
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes
- Onboard effects: No
- FixtureLink: Yes
- Electrical:
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: AC via Neutrik powerCON TRUE1 TOP
- Inrush: 40 A at 120 V (First half-cycle), 80 A at 230 V (First half-cycle)
- Fixtures per circuit: 5 (link up to 4 via Power Thru connector) Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
- Wattage typical: 307 W at 120 V, 305 W at 230 V
- Current draw: 2.6 A at 120 V, 1.35 A at 230 V
- Thermal:
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (yes)
- Droop compensation: Yes
- dB range: 34 dBA average at 1 m
- BTUs/hour: 1,047
- Physical:
- Materials: Die-cast, all metal housing
- Color : White
- Mounting options: Yoke, cyc floor stand (sold separately)
- IP rating: IP20
- Weight (With barrel): 8.87 kg (19.55 lb)
- Weight (Without barrel): 6.76 kg (14.90 lb)
ETC 42550LT-1 25-to-50-Degree Zoom Lens Tube, White
ETC’s 42550LT is a 25°-50° zoom lens tube assembly—in White—designed to be used with ETC’s Source Four incandescent and LED ellipsoidal light engine bodies. ETC’s patented one hand zoom and focus operation makes adjusting the lens simple and quick. But the best part is that Source Four Zoom has all the advantages of the revolutionary fixed-focus Source Four: bright even field, cool beam, and amazing efficiency. The patented dichroic mirror means shutters and accessories stay cool, and drop-in accessories are interchangeable with fixed-focus Source Fours. Source Four Zoom gives you Source Four's crisp optics for excellent imaging and field quality.
ETC T1PA-A-1 Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, White
6 ft TRUE1 TOP to parallel blade U-ground (Edison) connector.
*Note: Product appearance may differ from images shown.
*Note: All power plugs are Edison plugs.
