Description

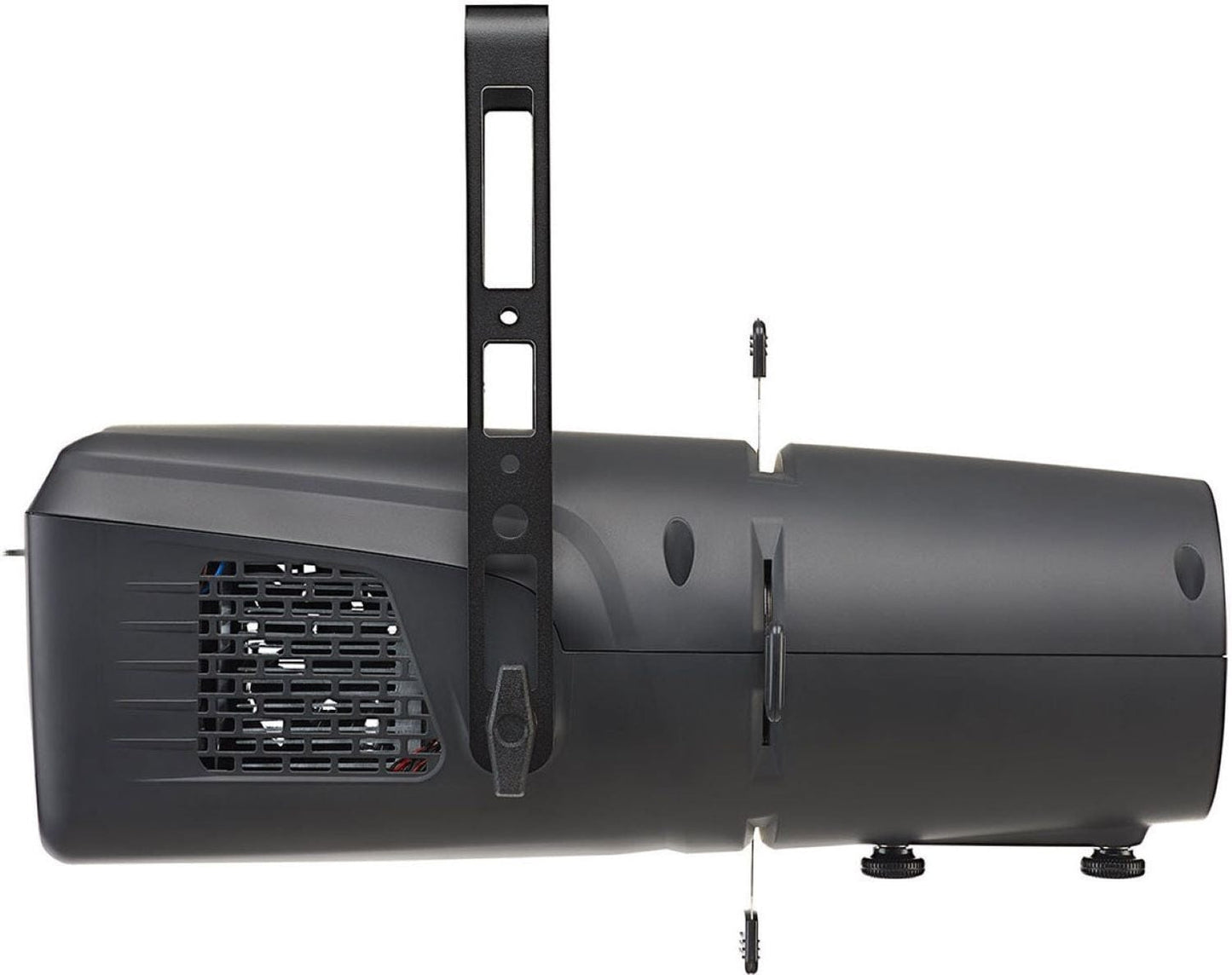

ETC CSSPOTJRDB2550 ColorSource Spot Jr., Deep Blue, Black, ETL

The ETC ColorSource Spot jr brings a four-color light engine at a fraction of the cost and a fraction of the size. Using a mix of red, green, blue, and lime LED emitters, the ColorSource Spot jr offers an amazing range of color. This fixture is available in both Original and Deep Blue arrays, and features the same color integrity technology as ETC’s other fixtures. Increasing the versatility of this fixture is its built-in zoom capabilities and 5,708 lumen output.

Features:

  • ETC’s RGB-L array (red, green, blue and lime) - Also available in Deep Blue, which replaces the blue LEDs with indigo for rich, saturated blues and magentas
  • Simple user interface with seven-segment display
  • powerCON® in and thru
  • DMX/RDM in and thru (5-pin XLR)
  • LED droop compensation
  • Optically calibrated
  • Built-in zoom

Specifications:

  • Source:
    • LED details: 52 Lumileds LUXEON® C LED
    • Max lumens: 5,426
    • Max lumens per watt: 44.8
    • L70 rating (hours to 70% output): >54,000 hours (both variants)
  • Color:
    • Colors: Red, green, indigo, lime
    • Color temperature range: Color mixing
    • Calibrated array: Yes
    • Red shift: No
  • Optical:
    • Beam angle range: Built in 25-50 degree zoom
    • Gate size: 50 mm
    • Aperture size: 6.25”-14”
    • Pattern projection: Yes
    • Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
    • Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
  • Control:
    • Input method: DMX512 via 5-pin XLR connector
    • Protocols: DMX512/RDM
    • Modes (footprint): 4 modes
    • RDM configuration: Yes
    • UI type: Seven-segment, three-button interface
    • Local control: Yes
    • Onboard presets: Yes (12)
    • Onboard sequences: Yes (5)
    • Onboard effects: No
    • Fixture-to-fixture control: Yes
    • Notes: 15-bit virtual dimming engine
  • Electrical:
    • Voltage range: 100–240 VAC 50/60 Hz
    • Input method: powerCON power in and thru
    • Inrush:
      • 35 A at 120 V (First half-cycle)
      • 49 A at 240 V (First half-cycle)
    • Fixtures per circuit: 7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
    • Wattage typical:
      • 166 W / 2.6 W at 120 V
      • 162 W / 2.0 W at 240 V
    • Current draw:
      • 1.59 A at 120 V
      • 0.87 A at 240 V
  • Thermal:
    • Ambient operating temp: 0°–40° C (32°–104° F)
    • Fan (controllable): Yes (No)
    • Droop compensation: Yes
    • dB range: Pending
    • BTUs/hour : 549
  • Physical:
    • Materials: ABS plastic
    • Color option: Black
    • Mounting options: Yoke
    • IP rating: IP20
    • Weight: 5.4 kg (12 lb)
    • Included accessories: Hanging yoke, 1.5 m power cable
