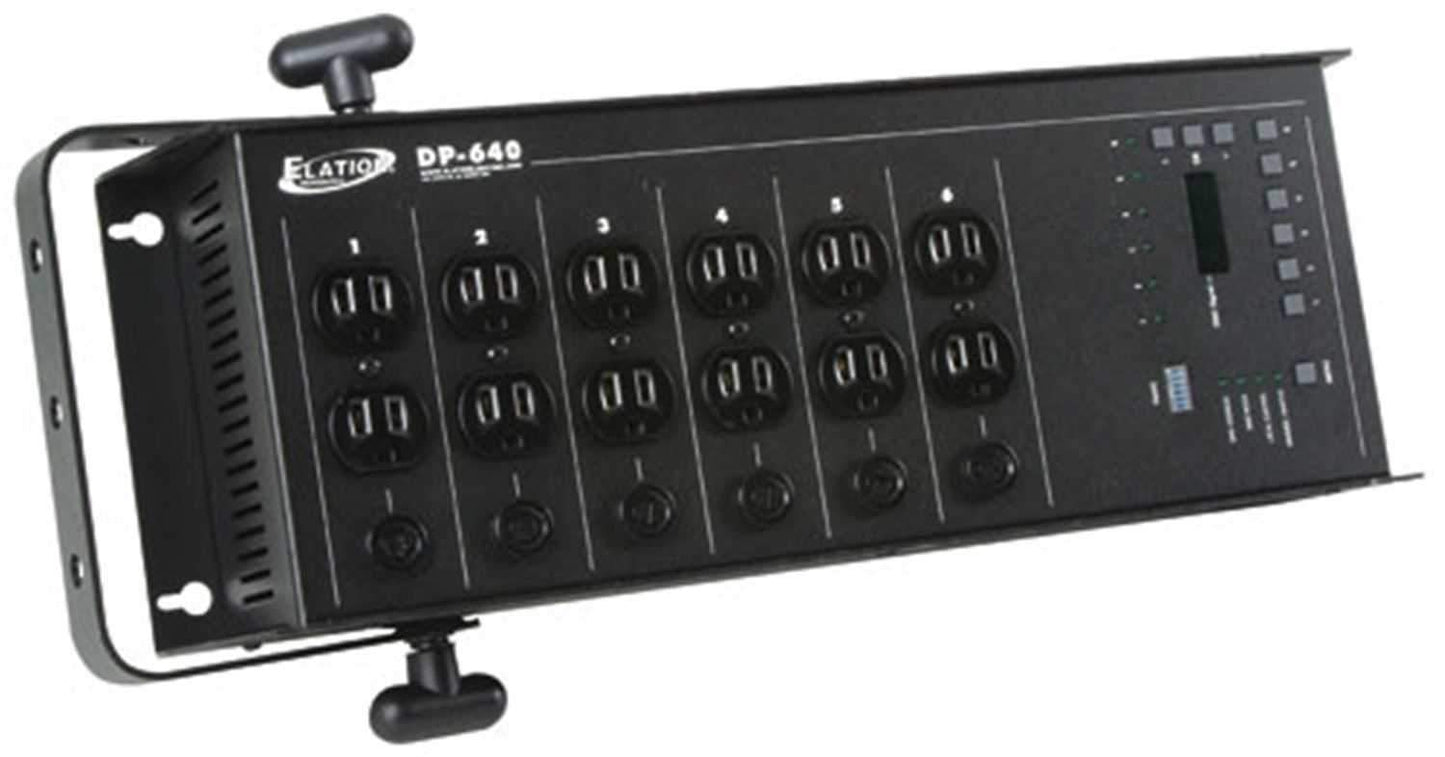

Elation DP-640 6 Channel 2400W Dimmer Pack

Write a review Q&A SKU: DP-640 Solotech ID#:
Unfortunately the Elation DP-640 6 Channel 2400W Dimmer Pack is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.
 View full details
Unfortunately the Elation DP-640 6 Channel 2400W Dimmer Pack is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Description

ELATION DP640 6 Channel 2400v Dimmer Pack


Features:
  • 6 channel hybrid DMX pack- serves as dimmer or power pack
  • Digital display- used to set starting DMX address channel and set all other menu options
  • Individual DMX addressing for each channel
  • 6 position dip switches for Panic function
  • Adjustable master dim level
  • Adjustable channel dim level- with HTP
  • Two three prong Edison sockets per channel
  • 3 pin XLR DMX Input & Output
  • Six LED's display channel activity
  • Individual fuse protection for each channel
  • Six external channel fuses for quick and easy replacement
  • Sleek aluminum case
  • Zero crossing circuitry for protection of transformer loads when switching
  • Use in conjunction with DMX Operator Pro, Stage Setter-8, Scene Setter, Scene Setter-48 and Stage Desk-16
  • Power Input: Dual 12AWG cables with 15A plugs- 120V ~ 60Hz each
  • Maximum Load: 10A per channel / 20A per phase - 40A total with 20A plugs
  • Dimensions: 19.9?L x 6.8?W x 3.7?H
  • Weight: 11 lbs
