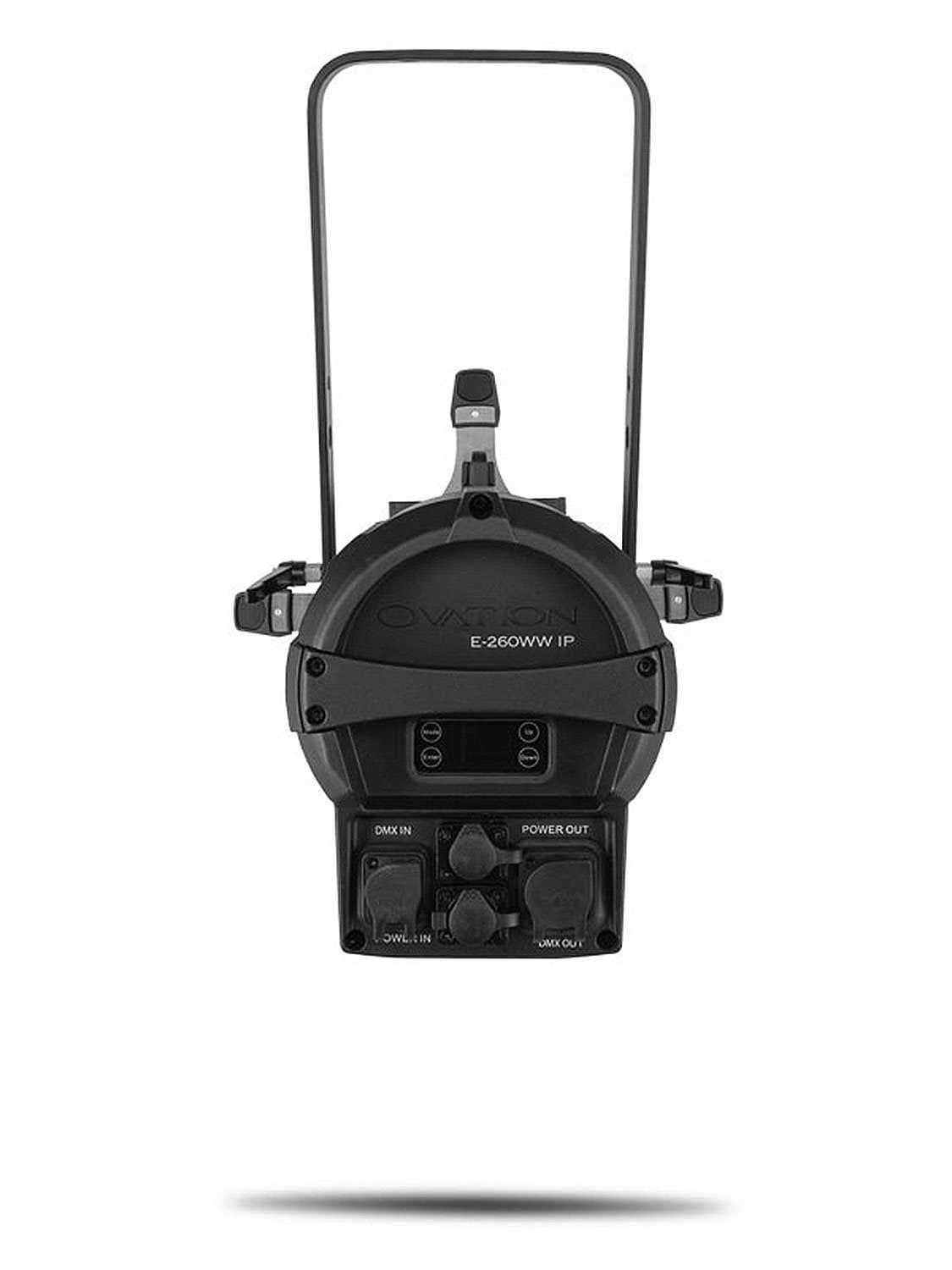

Chauvet Ovation E-260WWIP 26-Degree IP65 LED Ellipsoidal Light
Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Chauvet's standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750W HPL. This ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.
Features:
- Warm white ERS-style fixture with output exceeding a tungsten 750W source
- Fully IP 65 rated for seasonal use indoors or out
- Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
- Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
- Flat, even field of light for superior gobo projection
- RDM (remote device management) for added flexibility
- Adjustable PWM (pulse width modulation) to avoid flickering on camera
Specifications:
- Light source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy
- Color temperature (at full): 3149 K
- CRI: 91
- Beam angle (w/26° lens): 16°
- Field angle (w/26° lens): 25°
- Dimming modes: 4
- Lumens (w/26° lens): 10,284
- Illuminance (w/26° lens): 6,910 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
- Dimmer: electronic
- Shutter/strobe: electronic
- Strobe rate: 0 to 30 Hz
- Color temperature presets: No
- Dim modes: 4
- Built-in automated programs: yes
- Dimensions: 19.49" x 11.14" x 18.42" / 495 mm x 342 mm x 506 mm
- Dimensions (with 26° lens extended): 23.5" x 13.46" x 19.92" / 597 mm x 342 mm x 506 mm
- Weight: 20.2 lbs. / 9.2 kg
- Weight (with 26° lens): 24.4 lbs. / 11 kg
- Exterior color: black
- Gobo size (optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
- Gobo size (optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
- Accessory holder/gel frame size (19°, 26°, 36°, and 50° lens): 6.25" / 159 mm
- Power connection: edison (local) plug to seetronic powerkon IP 65
- Power input: seetronic powerkon IP 65
- Power output: seetronic powerkon IP 65
- Data connectors: 5-pin XLR
- Cable length (power): 5' (1.5 m)
- Control protocol: DMX
- DMX channels: 1, 2, 3 or 6
- Modes/personalities: 4 personalities (1, 2, 3, 6)
- Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
- Power and current: 221W, 1.85A @ 120V, 60 Hz
- Power and current: 215W, 1.11A @ 208V, 60 Hz
- Power and current: 213W, 1.01A @ 230V, 50 Hz
- Ovation E-260WW IP
- Seetronic powerkon IP 65
- Lens tube: 19°, 26°, 36°, 50°
