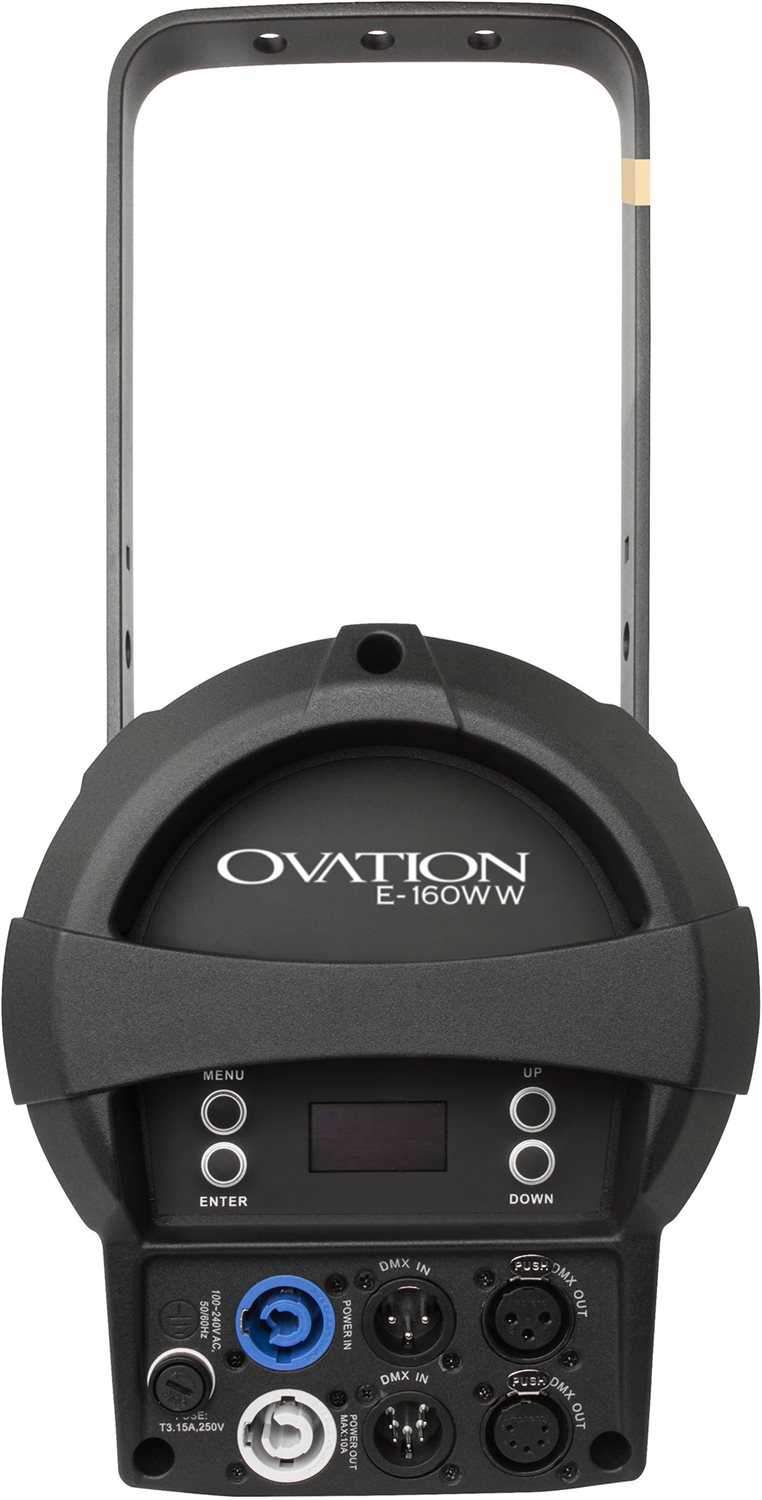

Chauvet Ovation E-160WW 19-Degree LED Ellipsoidal

Ovation E-160WW is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws less than 100 W of power. Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection. Control options include selectable PWM, RDM, and onboard dimming curve selections.

• Warm white ERS style fixture with output similar to a tungsten 575 W source
• Draws less than 100 W of power, a true electrical bill reducing fixture
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theater applications

Specifications:

• Light Source: 1 LED (WW) 88 W, (2.3 A), 3031 K, 50,000 hours life expectancy
• Color Temperature (at full): 3031 K
• CRI: 90Beam Angle (w/14° lens): 8°
• Beam angle (w/19° lens): 12°
• Beam angle (w/26° lens): 16°
• Beam angle (w/36° lens): 20°
• Beam angle (w/50° lens): 31°
• Beam angle (w/15°–30° lens)(Narrow): 10°
• Beam angle (w/15°–30° lens)(Wide): 15°
• Beam angle (w/25°–50° lens)(Narrow): 18°
• Beam angle (w/25°–50° lens)(Wide): 24°
• Field angle (w/14° lens): 14°
• Field angle (w/19° lens): 18°
• Field angle (w/26° lens): 25°
• Field angle (w/36° lens): 33°
• Field angle (w/50° lens): 50°
• Field angle (w/15°–30° lens)(Narrow): 16°
• Field angle (w/15°–30° lens)(Wide): 29°
• Field angle (w/25°–50° lens)(Narrow): 28°
• Field angle (w/25°–50° lens)(Wide): 48°
• Dimming modes: 4
• Illuminance (w/14° lens): 10,814 lux @ 5 m
• Illuminance (w/19° lens): 6,253 lux @ 5 m
• Illuminance (w/26° lens): 3,189 lux @ 5 m
• Illuminance (w/36° lens): 1,918 lux @ 5 m
• Illuminance (w/50° lens): 743 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): 9,361 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): 2,947 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): 2,719 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 1,072 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

• Dimmer: Electronic
• Shutter/strobe: Electronic
• Zoom: manual
• Strobe rate: 0 to 29 Hz
• Color temperature presets: Yes
• Dim modes: 4

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 14.2 lb (6.4 kg)
• Weight (w/14° lens): 19.6 lb (8.89 kg)
• Weight (w/26° lens): 18.4 lb (8.3 kg)
• Weight (w/15°–30° lens): 28.2 lb (12.7 kg)
• Weight (w/25°–50° lens): 25.8 lb (11.7 kg)
• Exterior color: Black
• Gobo size (optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo size (optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory holder/gel frame size (14° lens): 7.5 in (191 mm)
• Accessory holder/gel frame size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory golder/gel frame size (15°–30° lens): 7.5 in (191 mm)
• Accessory holder/gel frame size (25°–50° lens): 7.5 in (191 mm)

• Power connection: Edison (Local) plug to Neutrik powerCON
• Power input: Neutrik powerCON
• Power output: Neutrik powerCON
• Data connectors: 3- and 5-pin XLR
• Cable length (power): 5 ft (1.5 m)

• Control protocol: DMX
• DMX channels: 1, 2, 3 or 6
• Modes/personalities: 4 personalities (1, 2, 3, 6)

• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power linking: 15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V
• Power and current: 103 W, 0.9 A @ 120 V, 60 Hz
• Power and current: 99 W, 0.5 A @ 208 V, 60 Hz
• Power and current: 102 W, 0.5 A @ 230 V, 50 Hz

• CE, MET
• IP rating: IP20, dry location

• Ovation E-160WW
• Neutrik powerCON power cord

• CTC-50HC
• CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX cables
• Color blending filters: DF60X1D, DF20D
• RDM2go
• Ovation zoom lenses: OEZOOM1530, OEZOOM2550
• Gobo holder: Standard "S4" size Sandwich Style or Iris Slot Style gobo holder for "A" or "B" size gobos

• Lens tube: 19°, 26°, 36°, 50°
