Description

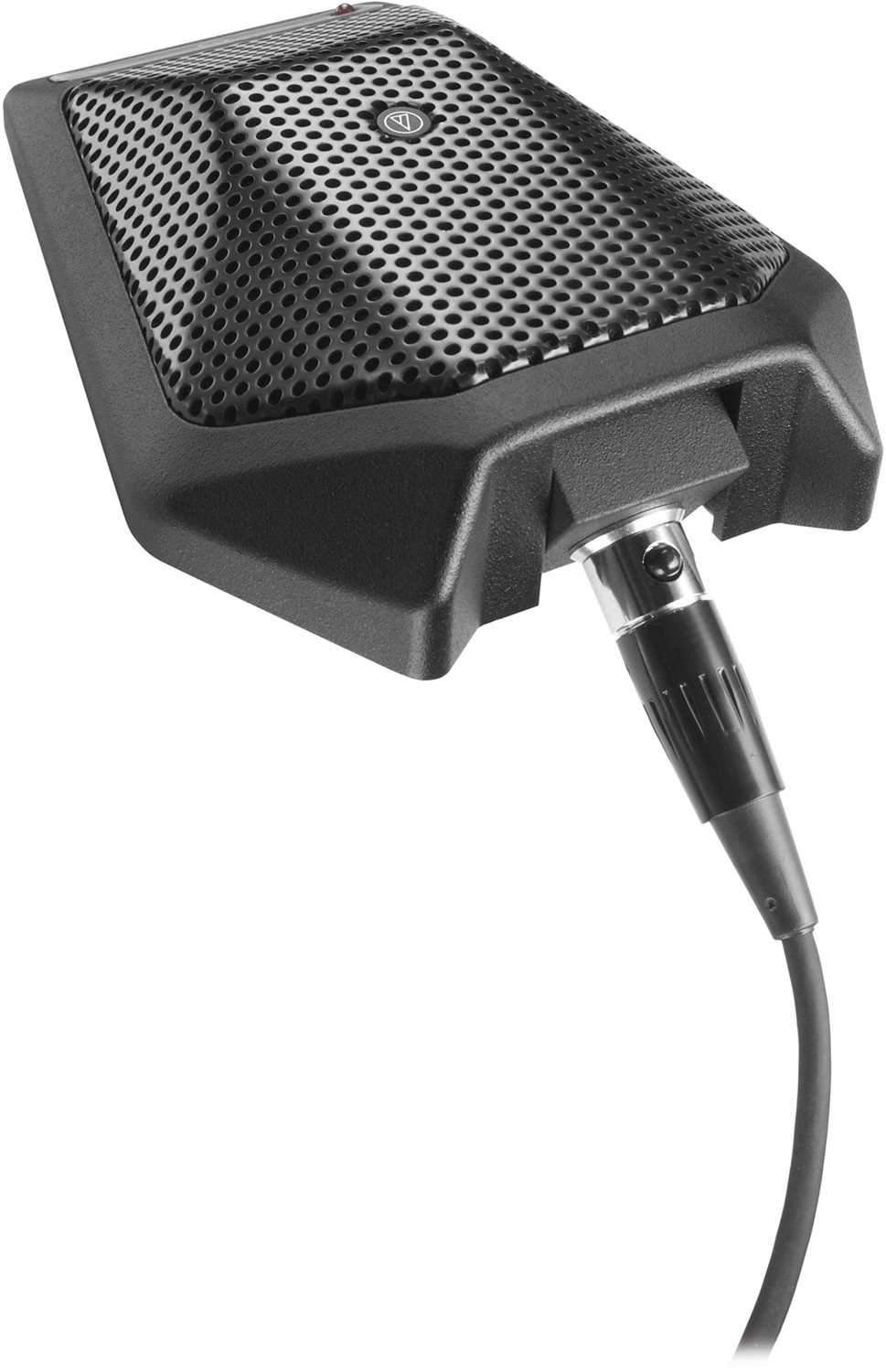

Audio Technica U891RX Condenser Boundary Mic

Designed to deliver easy, flexible control in conference and boardroom installations, the versatile U891R cardioid condenser boundary microphone features an activation switch that can be set to three modes: press-on/press-off, press to talk, and press to mute. The phantom-powered microphone is equipped with a unique PivotPoint rotating output connector and an LED status indicator. UniGuard innovations offer unsurpassed immunity from radio frequency interference; interchangeable elements are available in cardioid, hypercardioid and omnidirectional polar patterns; an 80 Hz low-cut UniSteep filter reduces pickup of low-frequency ambient noise. The microphone’s heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. The unit’s self-contained electronics eliminate the need for an external power module.

Features:
  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • An activation switch can be set to any of three operating modes: "touch-on/ touch-off," "touch-to-talk" and "touch-to-mute"
  • PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Improved switch design
  • Available in two colors: black (U891Rx) and white (U891RWx)
Specifications:
  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern
  • Half-cardioid (cardioid in hemisphere above mounting surface)
  • Frequency Response: 30-20,000 Hz
  • Low Frequency Roll-Off: 80 Hz, 18 dB/octave
  • Open Circuit Sensitivity: –34 dB (19.9 mV) re 1V at 1 Pa
  • Impedance: 200 ohms
  • Maximum Input Sound Level: 130 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range (typical): 104 dB, 1 kHz at Max SPL
  • Signal-To-Noise Ratio: 68 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 11-52V DC, 4 mA typical
  • Activation Switche : on/off;
  • Switch function: press on/off,
  • momentary on, momentary off;
  • Flat, roll-off
  • Weight: 264 g (9.3 oz)
Dimensions
  • 108.0 mm (4.25") maximum length,
  • 84.0 mm (3.31") maximum width,
  • 23.0 mm (0.91") maximum height
Output Connector: TB3M-type
  • Cable: 7.6 m (25.0') long, 3.2 mm (0.13"); diameter, 2-conductor, shielded cable with ; TA3F-type and XLRM-type connectors
Accessory Furnished
  • Soft protective pouch
