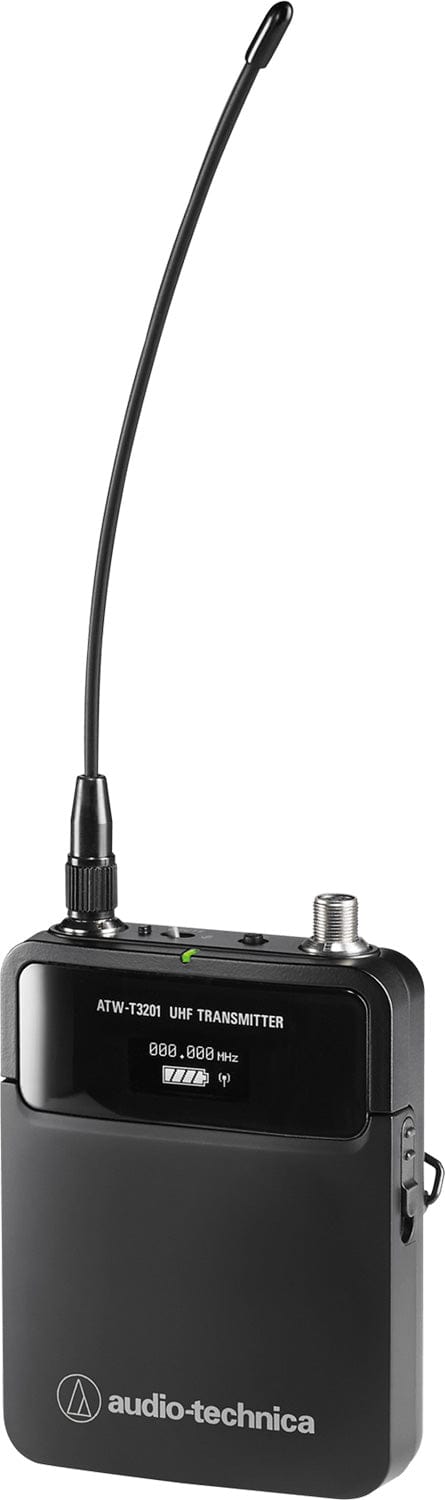

Audio-Technica ATW-T3201 3000 Series UHF Wireless Body Pack

The Audio-Technica ATW-T3201 is a 3000 Series (4th generation) bodypack transmitter compatible with ATW-R3210 and ATW-R3210 Networked receivers. It features a 4-pin cH-style screw-down connector and an adjustable input level to accommodate the cH-style lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a rugged metal housing and rounded corners, the transmitter is comfortable to wear and provides natural audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages. The ATW-T3201 operates on a wide 60 MHz UHF tuning range with 2400 selectable frequencies available. It provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'.

Features:

• Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• OLED screens for optimal readout of key settings and alerts

Specifications:

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
• Battery Life:
  • High: 8.0 hours / Low: 9.0 hours (alkaline)
  • High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
  • Depending on battery type, usage and environmental conditions.
• Battery Type: Two 1.5V AA, not included
• Dimensions: 64 mm x 82 mm x 23 mm (W x D x H)
• Input Connections:
  • 4-Pin screw down cH-Style Connector
  • Pin 1: GND
  • Pin 2: INST INPUT
  • Pin 3: MIC INPUT
  • Pin 4: DC BIAS +5V
• Net Weight: 102 g
• Spurious Emissions: Following Federal and National Regulations
