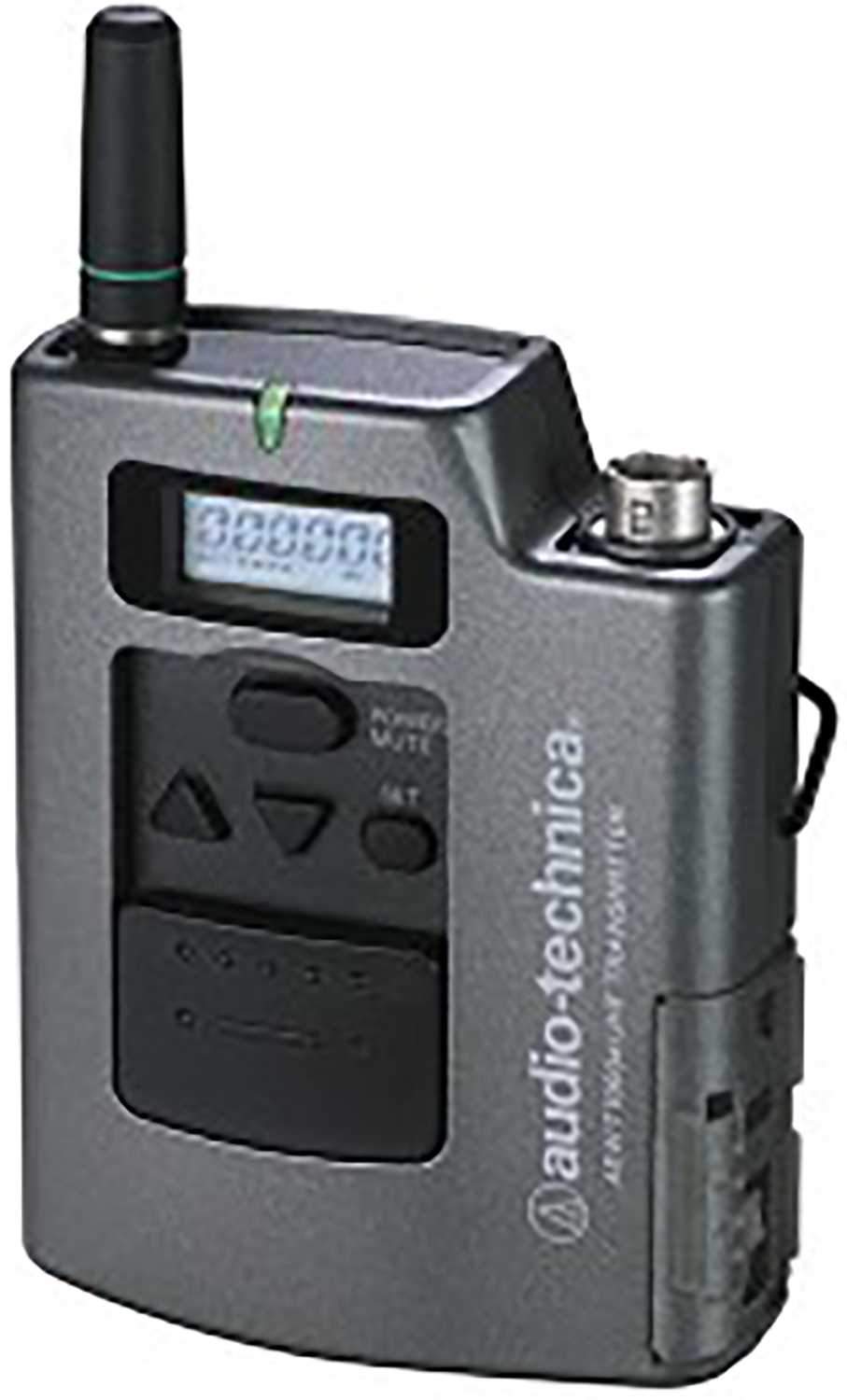

Audio Technica AEW-T1000A Wireless Transmitter

UHF UniPak™ transmitter 4000/5000 series transmitter

Compatible with the Wireless Essentials® range. Rugged, ergonomic metal housing. Includes field-replaceable helical and flexible-whip antennas. Three-position sliding cover limits access to controls as desired: full access, Power/Mute button only, or no access. Two position mounting clip. For use with AEW-T1000a and all Audio-Technica UniPak™ Wireless Transmitters.

The AEW-T1000a wireless UniPak® body-pack transmitter has both low and high impedance inputs plus a DC bias connection allowing it to be used with both condenser and dynamic microphones. The locking 4-pin HRS-type audio input connector is recessed to protect the connection from damage. A dual-colour power/mute indicator LED provides visual indication of transmitter status. The transmitter operates using two standard AA batteries and features high- and low-level RF output settings. The low-level setting allows two additional hours of battery life while retaining a strong RF signal link. Soft-touch controls provide convenient access to a variety of functions including: RF power, audio input level, power/mute locks and frequency selection. Each transmitter’s backlit LCD display presents a great deal of setup and operating information clearly and conveniently, including battery level remaining, mute, and operating frequency. A flashing "Lo-Batt" alert visually signals the battery life is almost depleted. Programmable power/mute locks limit the functioning of transmitter’s power/mute button as desired for particular users and applications. Four nameable user presets allow for storage and recall of commonly used settings. To match the audio input level to the transmitter, a ten-position audio input gain setting selected through the function menu is provided. The body-pack features a safety cover to protect the soft-touch controls from being accidently activated and a recessed input connector to increase the life of the microphone cable. Inputs are available on the UniPak® for low impedance microphone and high impedance musical instrument or line input. Constructed of metal, the body-pack transmitter features a field replaceable antenna, captive locking battery cover door, a short rigid helical antenna and a flexible wire antenna.

Features:

• Frequency bands: 541.500 - 566.375 MHz (C Band)
• 25 kHz frequency spacing makes it easier to find a clear, open frequency in crowded RF environments
• Dual RF power output selection to optimize battery life
• Digital Tone Lock™ squelch that communicates transmitter data to the receiver
• Function menu displayed in a backlit LCD window, controlled by internal soft-touch controls
• High efficiency dual companding system for flawless audio
• Four nameable user presets
• Battery fuel gauge on LCD readout
• Recessed microphone input connector
• Power/mute lock provision as well as safety door to cover controls
• Dual-colour power/mute status indictor
• Microphone or line input with DC bias voltage
• 18 dB audio input level adjustment
• Operates on two AA batteries
• Captive locking battery compartment door
• Adjustable squelch
• Rugged metal housing with a reversible clothing clip

Specifications:

• Spurious Emissions: According to National Regulations
• Microphone Dynamic Range: >=110 dB, A-weighted
• Instrument Dynamic Range: >=110 dB, A-weighted
• Battery Type: Two 1.5V AA alkaline (not included)
• Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
• Dimensions: 66.0mm W x 87mm H x 24mm; not including antenna
• Net Weight: 125g
