Elation DMX Branch 4-Way DMX Distributor

Write a review Q&A SKU: DMX-BRANCH-4 Solotech ID#: 100699662
Unfortunately the Elation DMX Branch 4-Way DMX Distributor is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.
 View full details
Unfortunately the Elation DMX Branch 4-Way DMX Distributor is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Description

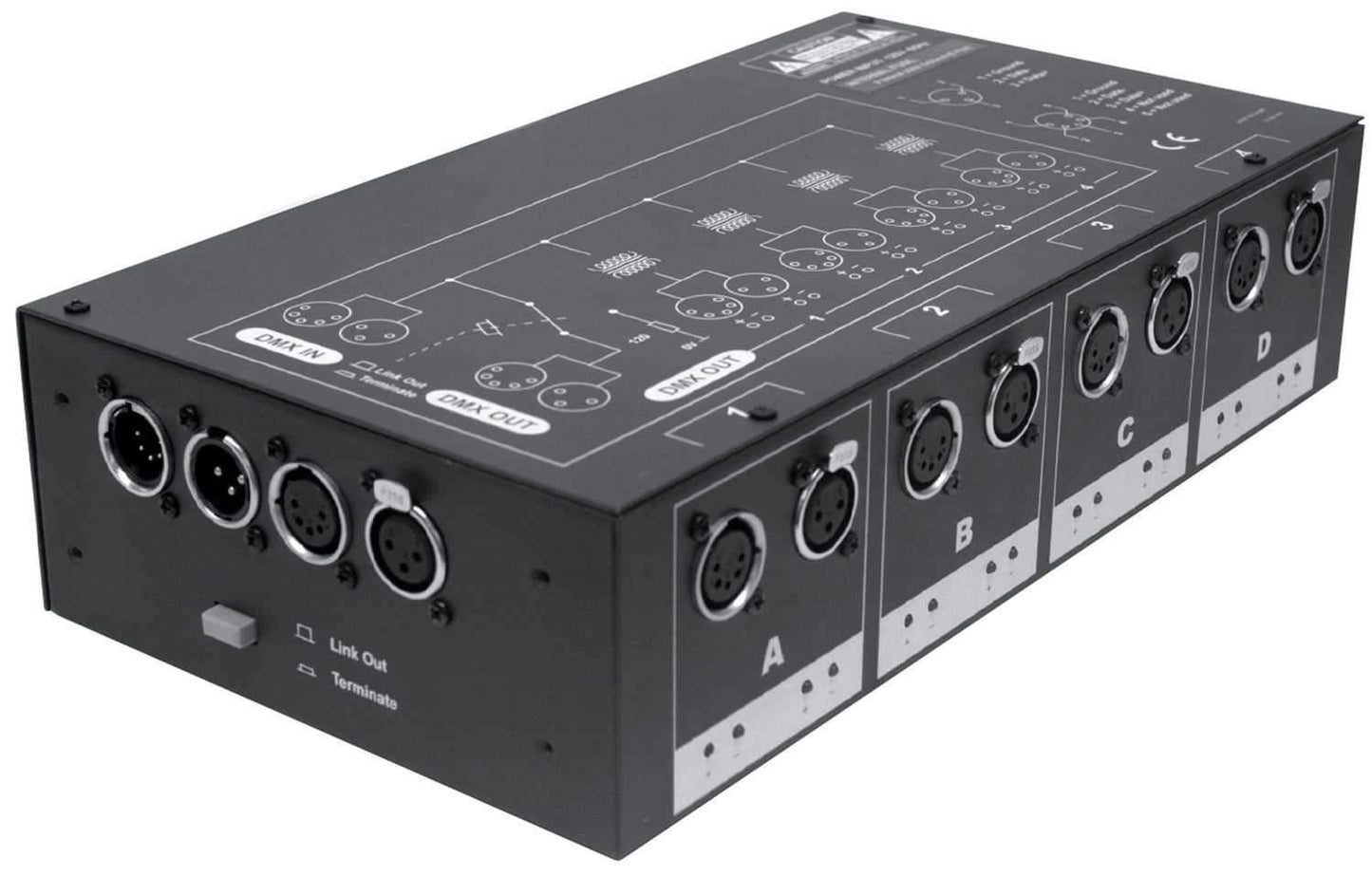

Elation DMX Branch 4-Way DMX Distributor

Features:
  • 4way DMX distributor 1 x DMX Input 4 x DMX outputs 1 DMX thru
  • Electronic Opto isolated
  • 3 5 pin XLR DMX connectors
  • Data Data LED indicators.
  • Linkable with other DMX Branch x 4 units via 3 or 5 pin XLR.
  • Link out/Terminate button
  • 50mA internal fuse
  • 3/16 Threaded hole for clamp
  • Size: 13 x 7.25 x 3 330 x 184 x 76 mm
  • Weight: 7 lbs 3.18 kgs
  • Voltage: 120V / 220V
  • Internal Fuse: .5A 250V 5x20mm
