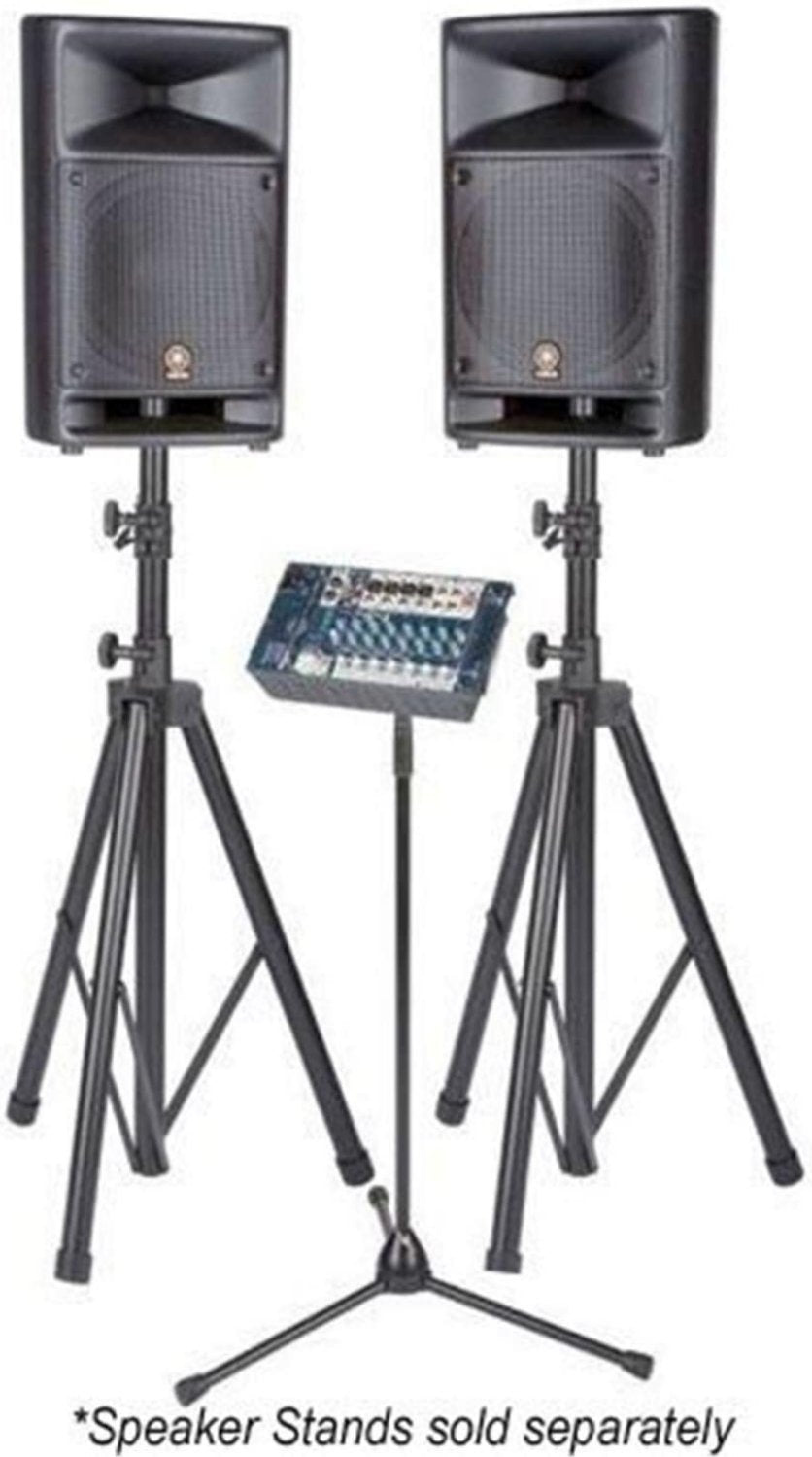

With the STAGEPAS-500 you get an incredibly lightweight, portable, easy-to-use PA system consisting of a pair of high-performance speakers and a built-in powered mixer. You can be set up and playing in a matter of minutes, and then packed away and on the road again with the same ease and speed when youre done. And all of this is provided with no compromise in sound quality or versatility, plus some advanced features you normally wouldt expect to find in systems in this class. You get a high-performance live-sound system that will deliver your music or message wherever you go, indoors or out.
Complete with Speakers, Powered Mixer, and Cables:
All-in-one STAGEPAS systems come with a pair of top-quality passive 2-way speakers, a versatile powered mixer, and even a pair of speaker cables!
High-performance 2-way Passive Speakers:
The STAGEPAS 500 speakers have 10 woofers and 1 high-frequency units. Both types deliver clean, high-quality sound.
Detachable 8-channel or 10-channel Powered Mixer:StagePas 500 can be used either while installed in the speaker compartment or detached for easy positioning and access. Built-in equalization and reverb add the finishing touches to your sound.
Versatile 10-channel Mixer with Monitor and Record Outputs:
If there are more members in your band than the STAGEPAS 300s 8 input channels can handle, or you simply have a lot of sources to mix, the STAGEPAS 500 gives you 10 input channels in all: four mono microphone/line inputs and three stereo line inputs. The additional stereo channel can used for either a stereo or mono source. In addition to the main speaker outputs the mixer has line outputs that can be used to connect additional powered speakers for monitoring, and to send the mixers output to a recording device.
Phantom Power for High?performance Condenser Microphones:
The STAGEPAS 500 mixer features switchable phantom power for the four microphone/line inputs. This lets you use high-performance phantom-powered condenser microphones in situations where you want the extended, natural response they provide.
Built-in Channel Compression/Limiting:
Channels 1 and 2 feature LIMIT/COMP switches that let you apply either limiting or compression to those channels. Limiting can be useful to prevent input overload and distortion with sources that have a wide dynamic range, while compression can add punch to vocals, bass, guitar, and other sources while smoothing out the sound and helping it to ride better in the mix.
2-band Channel EQ and Reverb:
Like the STAGEPAS 300 mixer, the STAGEPAS 500 mixer has 2-band EQ controls on each channel, as well as REVERB switches on channels 1 through 4. A separate REVERB level control adjusts the reverb mix.
Other Features:
- XLR and phone-jack inputs on mono channels, and phone-jack and RCA pin- jack inputs on stereo channels allow connection to a wide range of sources
- MIC/LINE switches select microphone or line level input matching for channels 1 through 4
- Auto Limiter prevents overload damage to power amplifier and speakers
- LED output level meter
- Speaker cables supplied
- Optional BMS-10A Mic Stand Adaptor for the mixer unit
- The STAGEPAS 500 speakers can be stand mounted without standard speaker stand adapters
For Singers:
The built-in high-quality reverb is indispensable for great vocal sound, and on the STAGEPAS 500 system the LIMIT/COMP switch can help to deliver smooth, punchy vocal sound.
For Instrumentalists:
The STAGEPAS mixer has more than enough input capability to directly handle a range of instruments from electric-acoustic guitars to electronic keyboards.
For Speech:
The "SPEECH" mode optimizes the system settings for maximum clarity with speech. Of course, background music from a CD player or other source can be mixed in with the spoken performance.
For Bands:
Multiple microphone inputs make the STAGEPAS systems a good choice for band rehearsals or performances. MSR100 powered monitors (sold separately) can be added for monitoring.
Specifications:
- Output Power (Maximum) 250 W + 250 W (10 %)/4? @ 10 % THD at 1 kHz (SPEAKERS L/R)
- Output Power:(RMS) 200 W + 200 W/4? @ 1 % THD at 1 kHz (SPEAKERS L/R)
- Maximum Output Level: 116 dB (1 m)
- Power Consumption: 65 W
- Enclosure: 2 way bass-reflex type, Polypropylene, Black
- Crossover Frequency: 4.0 kHz (LF: 12 dB/oct, HF: 12 dB/oct)
- Frequency Range: 55 Hz-20 kHz (-10 dB)
- Speaker Unit: LF: 10" (25 cm) Cone, HF: 1" (2.54cm) Compression Driver
- Weight: 52.9 lbs. (Speaker x 2 + Powered Mixer)
- Size: 13.5" x 21.5" x 11.7" (speaker x 1), 330" x 12" x 175" (Mixer)
