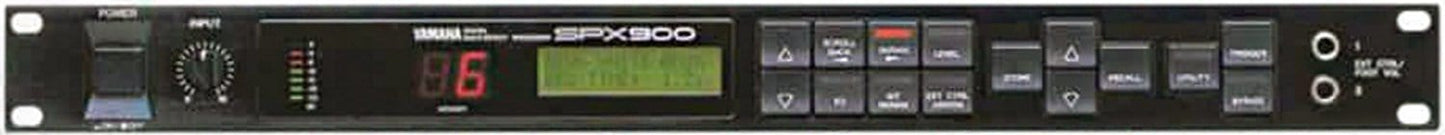

Yamaha SPX900 Multi-Effect Processor

Yamaha SPX900 Multi-Effect Processor

The SPX900 is a highly sophisticated digital reverberation and effects system which offers 50 preset effect programs including accurate simulations of natural reverberation and early-reflections, delay and echo effects, gated effects, modulation effects, a versatile compressor, Aural Exciter®, multiple effects which function as several SPX900 units in one, freeze (sampling) programs, and others. With a sampling frequency of 44.1 kHz, it delivers full, flat frequency response from 20 Hz to 20 kHz for exceptionally clean, “transparent” effect sound. The preset effect programs can be edited, re-titled, and stored in any of 49 RAM user memory locations. Individual two-band parametric EQ and dynamic filter parameters are provided for each effect program for precise tonal tailoring.

Features:

• 50 Superb Effect Programs
• Broad Programming Versatility
• External Controller Assignment
• MIDI Control
• Reverb
• Early Reflection
• Delay & Echo
• Modulation
• Noise Gate
• Pitch Change
• Freeze
• Pan
• Compressor
• Distortion
• Aural Exciter
• Multi-Effects
• Dual Effects

Specifications

• Electrical Characteristics
  • Freq. Response: 20hz~20khz
  • Dynamic Range: 90db (Typical)
  • Distortion: 0.03%(@1 Khz)
• Input
  • Number of Channels: Unbalanced X1(Phone Jack)
  • Nominal Level: +4/-20dbm Switchable
  • Impedance: 50kΩ
  • Level Control: Rotary Continuous
• A/D Conversion
  • Number of Channels: 1 (Ad Converter X1)
  • Sampling Freq.: 44.1 Khz (Except D-in)
  • Quantization: 16bits
• D/A Conversion
  • Number of Channels: 2
  • Sampling Freq.: 44.1 Khz (Except D-in)
  • Quantization: 16bits
• Output
  • Number of Channel: Unbalanced X2(Phone Jack)
  • Nominal Level: +4/-20dbm Switchable
  • Impedance: 2200
• Memory
  • Presets (Rom): 1~50
  • User Memory (Ram): 61~99
• Midi Control
  • Program Change (Memory Select)
  • Note on (Midi Base Key Select, Trigger)
  • Control Change
  • Bulk dump & Load (Parameter Dump)
• Front Panel
  • Controls: Input Level
  • Keys: Param. Inc/dec, Parameter, Scroll Back, Level Eq, Int. Param, Ext Ctrl Assign Store, Memory Inc/dec, Recall, Utility, Trigger, Bypass
  • Display:
    • 16 Chara. X2 Line Lcd
    • 2 Digit 7 Segment Led (Mem#)
    • 7 Segment Led (Level Meter)
  • Connectors: Ext Ctrl/foot Vol Jack X2
• Rear Panel
  • Connectors:
    • Input (Phone Jack X 1)
    • Output (Phone Jack X 2)
    • Midi in, Thru/out (Din 5p X 2)
    • Trigger (Phone Jack)
    • Memory Inc/dec (Phone Jack)
    • Bypass (Phone Jack)
  • Switches:
    • Input Level Sw, Output Level SW
    • Midi Thru/out SW
• General
  • Power Supply:
    • Us & Canada: 120v, 60hz, 20w
    • General: 220-240v, 50/60hz, 20w
  • Dimensions (W X H X D): 480 X 45.2 X 319 (Mm)
  • Weight: 4.4kg
