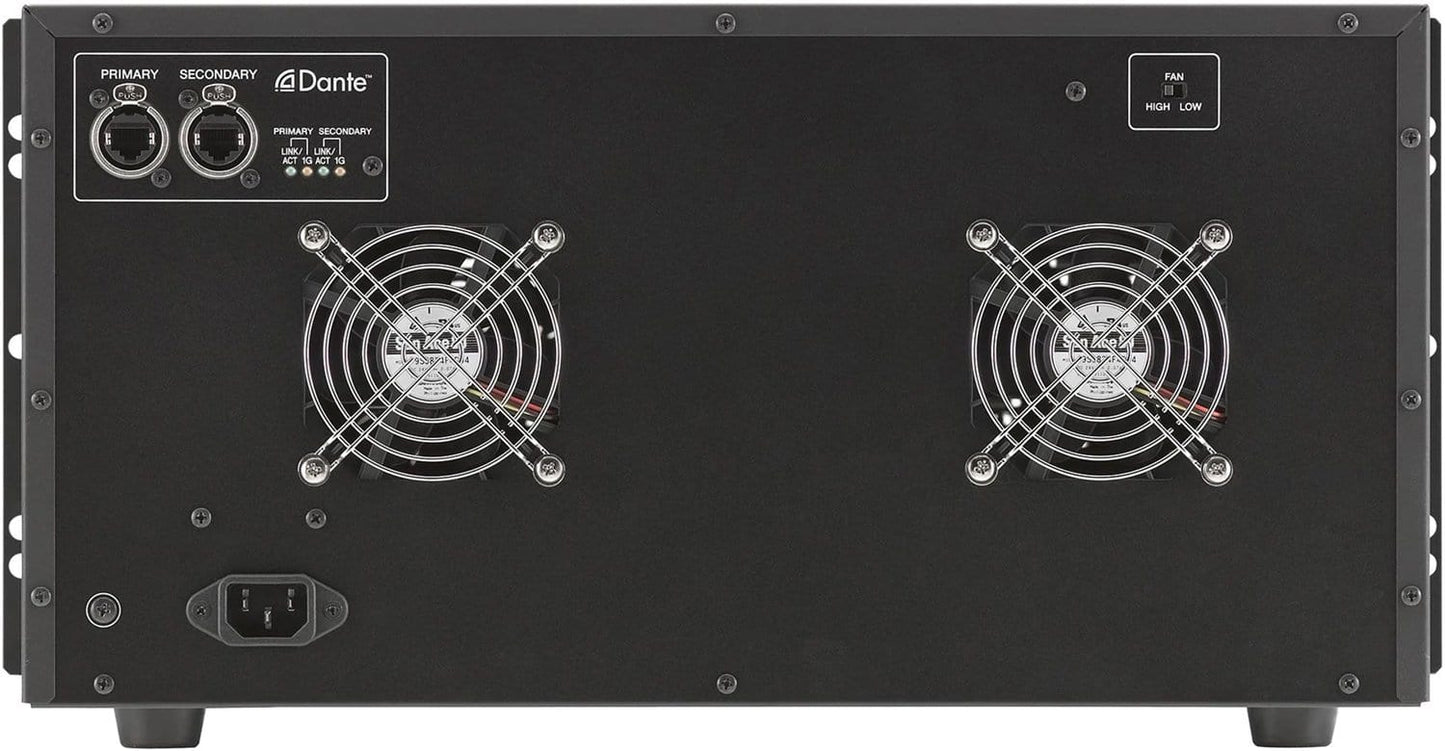

Yamaha Rio3224-D 32-Channel/24-Out Dante Stage Box
The Rio3224-D is a Dante-compatible I/O rack, featuring 32 analog inputs, 16 analog outputs, and 8 AES/EBU outputs.
Features:
- Digital stage box for CL series consoles and Dante-based audio systems
- Outstanding audio quality with excellent dynamic range and ultra-low noise
- Redundant Dante networking automatically switches in the event of an audio dropout in one stream
- Fully controllable from a networked computer running Dante Control software
- Gain Compensation allows you to connect multiple consoles without unwanted signal level changes between them
Specifications
- Sampling frequency rate:
- Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- External:
- 44.1kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- 48kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- 88.2kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- 96kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- Signal delay:
- Less than 3ms
- INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
- Total harmonic distortion:
- Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs= 44.1kHz, 48kHz
- Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs= 88.2kHz, 96kHz
- INPUT to OUTPUT, Input Gain= Min.
- Frequency response:
- +0.5, –1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 44.1kHz, 48kHz
- +0.5, –1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 88.2kHz, 96kHz
- Dynamic range: 112dB typ., DA Converter, 108dB typ., INPUT to OUTPUT, Input Gain= Min.
- Hum & noise level:
- –128dBu typ., Equivalent Input Noise, Input Gain= Max.
- –88dBu Residual output noise, ST master off.
- Crosstalk: –100dB, adjacent INPUT/OUTPUT channels, Input Gain= Min.
- Power Requirements(wattage): 120W
- Power Requirements(voltage and hertz):
- US/Canada: 120V 60Hz
- Japan: 100V 50/60Hz
- China: 110-240V 50/60Hz
- Korea: 220V 60Hz
- Other: 110-240V 50/60Hz
- Temperature Range:
- Operating temperature range: 0 - 40°C
- Storage temperature range: –20 - 60°C
- Dimensions (WxHxD) and Net Weight: 480mm x 232mm x 361.5mm, 12.4kg
- Sampling frequency rate:
- Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- External:
- 44.1kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- 48kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- 88.2kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- 96kHz +4.1667%, +0.1%, –0.1%, –4.0%: ±200ppm
- Signal delay:
- Less than 3ms
- INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
- Total harmonic distortion:
- Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs= 44.1kHz, 48kHz
- Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs= 88.2kHz, 96kHz
- INPUT to OUTPUT, Input Gain= Min.
- Frequency response:
- +0.5, –1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 44.1kHz, 48kHz
- +0.5, –1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 88.2kHz, 96kHz
- Dynamic range: 112dB typ., DA Converter, 108dB typ., INPUT to OUTPUT, Input Gain= Min.
- Hum & noise level:
- –128dBu typ., Equivalent Input Noise, Input Gain= Max.
- –88dBu Residual output noise, ST master off.
- Crosstalk: –100dB, adjacent INPUT/OUTPUT channels, Input Gain= Min.
- Power Requirements(wattage): 120W
- Power Requirements(voltage and hertz):
- US/Canada: 120V 60Hz
- Japan: 100V 50/60Hz
- China: 110-240V 50/60Hz
- Korea: 220V 60Hz
- Other: 110-240V 50/60Hz
- Temperature Range:
- Operating temperature range: 0 - 40°C
- Storage temperature range: –20 - 60°C
- Dimensions (WxHxD) and Net Weight: 480mm x 232mm x 361.5mm, 12.4kg
